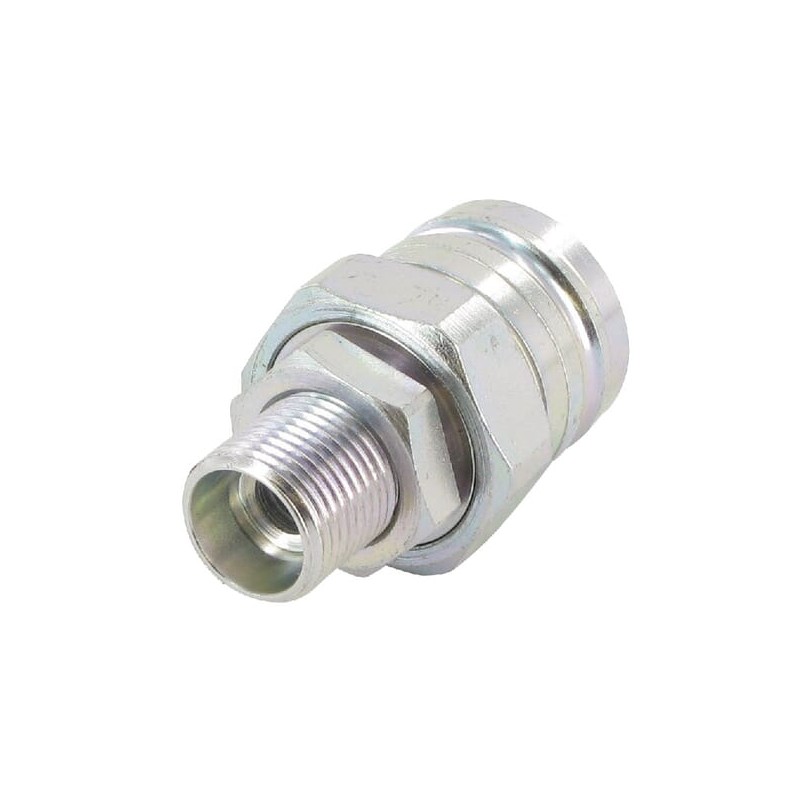

Part number VF71815M
EAN
Unit Each
ShapeStraight - 2 connection sides
Connection no 1 typeQuick coupling
Connection no 1 type - male/femaleMale
Connection no 1 diameter1.14 Inch
Connection no 1 diameter29 mm
AConnection no 1 thread diameter18 mm
Connection no 1 thread pitch1.50 mm
Connection no 1 thread typeMetric
Connection no 1 thread type code07
Connection no 1 hex size1.26 Inch0.94 Inch
SWConnection no 1 hex size32 mm24 mm
Body size3/8 Inch
Body size10 mm
Connection 2, typeThread
Connection 2, type - male/femaleMale
Connection 2, diameter12 mm
Connection 2, thread diameterM18
Connection 2, thread pitch1.50 mm
Connection 2, thread typeMetric
Connectable under pressureNo
ISO standard5676
Flow rate at 2 bar40 l/min
Outside diameter1.38 Inch
Outside diameter35 mm
Total length2.09 Inch

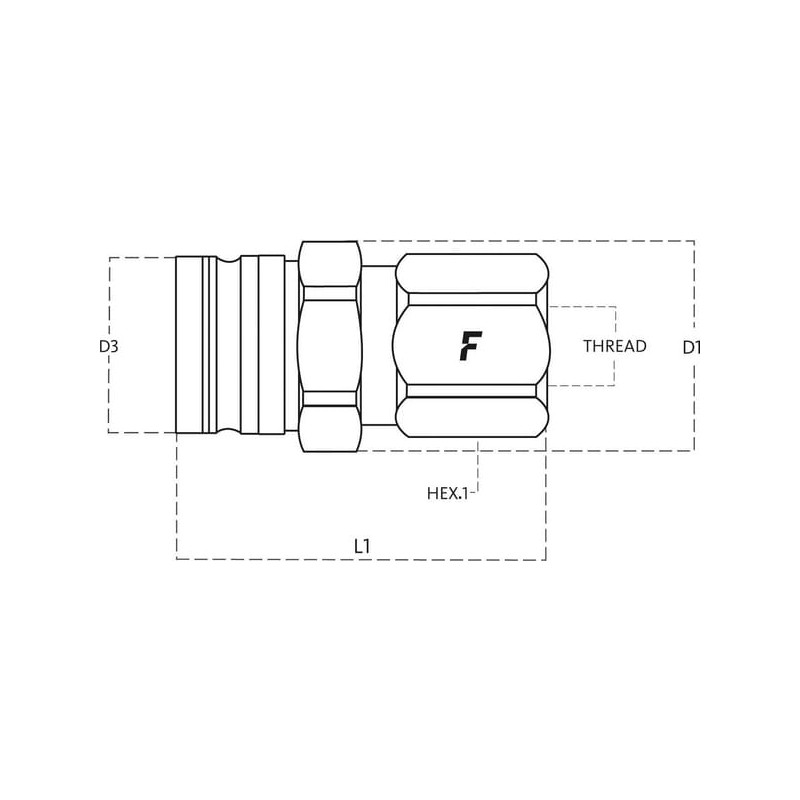

L1Total length56.8 mm
MaterialSteel
Surface treatmentChromium-plated
Working pressure150 BAR
Max working temperature125 °C
Min. working temperature-25 °C
Quick connection Užraktasing typeRadial balls
Quick connection working typeSleeve retraction
Quick disconnection working typeSleeve retraction
Riebokšlis materialNitrile rubber [NBR]
SeriesVF
Valve typeFlat
Weight152.1 g[
Case - IH (120),
Series 3200,
3210,
3220,
3230,
Series 33,
433,
533,
633,
733,
833,
Series 4200,
4210,
4220,
4230,
4240,
Series 43 44 45,
644,
743 / 743XL,
744,
745 / 745XL,
745S,
844,
844S,
844XL,
845 / 845XL,
Series 46,
1046,
1246,
946,
Series 5000 Maxxum,
5120,
5130,
5140,
5150,
Series 55,
1055 / 1055XL,
1255 / 1255XL,
1455 / 1455XL,
955 / 955XL,
Series 56,
1056 / 1056XL,
856 / 856XL,
956 / 956XL,
Series 7000 Magnum,
7210,
7220,
7230,
7240,
7250,
Series 74 75 76 84 85 86 94 95,
276,
384,
385,
395,
474,
484,
485 / 485XL,
495 / 495XL,
574,
584,
585 / 585XL,
595 / 595XL,
674,
684,
685 / 685XL,
695 / 695XL,
784,
785 / 785XL,
795 / 795XL,
885 / 885XL,
895 / 895XL,
995 / 995XL,
Series C,
C100,
C50,
C60,
C70,
C80,
C90,
Series CX,
CX100,
CX50,
CX60,
CX70,
CX80,
CX90,
Series International / McCormick 238 ->454,
354,
414,
434,
444,
454,
Series MX Magnum,
MX180 Magnum,
MX200 Magnum,
MX210 Magnum,
MX220 Magnum,
MX230 Magnum,
MX240 Magnum,
MX255 Magnum,
MX270 Magnum,
MX285 Magnum,
Series MX Maxxum,
MX100C Maxxum,
MX80C Maxxum,
MX90C Maxxum,
Series MXU Maxxum,
MXU100 Maxxum,
MXU100 Maxxum Pro,
MXU110 Maxxum,
MXU110 Maxxum Pro,
MXU115 Maxxum,
MXU115 Maxxum Pro,
MXU125 Maxxum,
MXU125 Maxxum Pro,
MXU135 Maxxum,
MXU135 Maxxum Pro,
Series Maxxum,
Maxxum 100X,
Maxxum 110,
Maxxum 115,
Maxxum 120,
Maxxum 125,
Maxxum 130,
Maxxum 140,
Series Maxxum EP Efficient Power Tier 4A,
Maxxum 110 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 115 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 120 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 125 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 130 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 140 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Series Maxxum Tier 4B,
Maxxum 115 - Engine Tier 4B, >3/15,
Maxxum 125 - Engine Tier 4B, >3/15,
Series Puma,
Puma 115,
Puma 125,
Puma 140,
Puma 155,
John Deere (151),
Series 1000 - 20,
1020,
1120,
Series 1000 - 30,
1030,
1030OU,
1130,
1630,
1630OU,
1830,
Series 1000 - 40,
1040,
1140,
1640,
1840,
Series 20,
920,
Series 2000 - 20,
2020,
2120,
Series 2000 - 30,
2030,
2030OU,
2130,
Series 2000 - 40,
2040,
2040S,
2140,
Series 30,
830,
930,
Series 3000 - 20,
3020,
3120,
Series 3000 - 30,
3030,
3130,
Series 3000 - 40,
3040,
3140,
3340,
3640,
3640S,
Series 40,
840,
940,
Series 4000 - 30,
4230,
4430,
Series 4000 - 40,
4040,
4040S,
4240,
4240S,
4440,
4640,
4840,
Series 4000 - 55,
4055,
4255,
4455,
4755,
4955,
Series 50,
1350,
1550,
1750,
1750V,
1850,
1850N,
1850V,
1950,
1950N,
2250,
2450,
2650,
2650N,
2850,
3050,
3150,
3350,
3650,
4050,
4250,
4350,
4450,
4650,
4850,
Series 5000 - 20,
5620,
5720,
5820,
Series 6000,
6100,
6200,
6300,
6400,
6506,
6600,
6800,
6900,
Series 6000 - 10,
6010,
6110,
6210,
6310,
6410,
6510,
6610,
6810,
6910,
6910S,
Series 6000 - 20,
6020,
6120,
6220,
6320,
6420,
6420S,
6520,
6620,
6820,
6920,
6920S,
Series 7000,
7600,
7700,
7800,
Series 7000 - 10,
7610,
7710,
7810,
Series 7000 - 20,
7720,
7820,
7920,
Series 8000,
8100 6076,
8100 6081,
8200 6076,
8200 6081,
8300 6076,
8300 6081,
8400,
Series 8000 - 10,
8110,
8210,
8310,
8410,
Series 8000 - 20,
8120,
8220,
8320,
8420,
8520,
Series 8000 - 30,
8430,
8630,
Series 8000 - 40,
8440,
8640,
Series SE6000,
SE6100,
SE6200,
SE6300,
SE6400,
Series SE6000 - 10,
SE6010,
SE6110,
SE6210,
SE6310,
SE6410,
SE6510,
SE6610,
Series SE6000 - 20,
SE6020,
SE6120,
SE6220,
SE6320,
SE6420,
SE6520,
SE6620,
McCormick (15),
Series C,
C100,
C50,
C60,
C70,
C80,
C90,
Series CX,
CX 100,
CX 50,
CX 60,
CX 70,
CX 80,
CX 90,
Series MC,
MC100,
MC80,
MC90,
Renault (25),
Series Arès,
Ares 540RX,
Ares 546RX,
Ares 550RX,
Ares 556RX,
Ares 610RX/RZ,
Ares 616RZ,
Ares 620RX/RZ,
Ares 626,
Ares 630RX/RZ,
Ares 636,
Ares 640RZ,
Ares 656RZ,
Ares 696RZ,
Ares 710RZ,
Ares 715,
Ares 720RZ,
Ares 725RZ,
Ares 735RZ,
Ares 815RZ,
Ares 816RZ,
Ares 825RZ,
Ares 826RZ,
Ares 836RZ,
Series Atlès,
Atles 926RZ,
Atles 936RZ
