Part number NV1212SAEM
EAN
Unit Each
DetailsSimple coupling with very light spring in coupling sleeve
Application rangeFor universal use Agricultural machines Municipal services technology Viniculture Mineral oil-based fluids
PropertiesAxial actuation of Užraktasing sleeve to rear (single acting) Induction hardened stressed parts No breakaway function Large number of latching balls
BenefitsUser-friendly
ShapeStraight - 2 connection sides
Connection no 1 typeQuick coupling
Connection no 1 type - male/femaleMale
Connection no 1 diameter0.81 Inch
HConnection no 1 diameter20.5 mm
Connection no 1 thread diameter3/4 Inch
Connection no 1 threads per inch16
Connection no 1 thread typeUNF
Connection no 1 thread type code0
Connection no 1 hex size1.06 Inch
YConnection no 1 hex size27 mm
Size codeBG 3
Body size3/4 Inch
Body size12.5 mm
Connection 2, typeThread
Connection 2, type - male/femaleFemale
EConnection 2, thread diameter3/4 Inch
Connection 2, threads per inch16
Connection 2, thread typeUNF
Connectable under pressureNo
ISO standard7241-A 11926-1

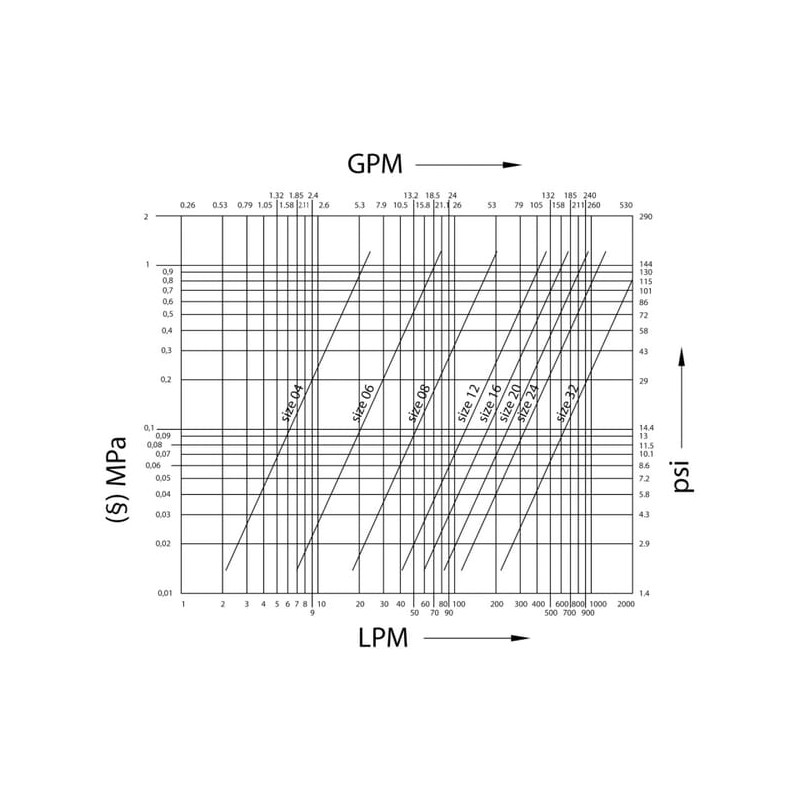

Flow rate at 2 bar75 l/min
Outside diameter1.18 Inch
Outside diameter30 mm

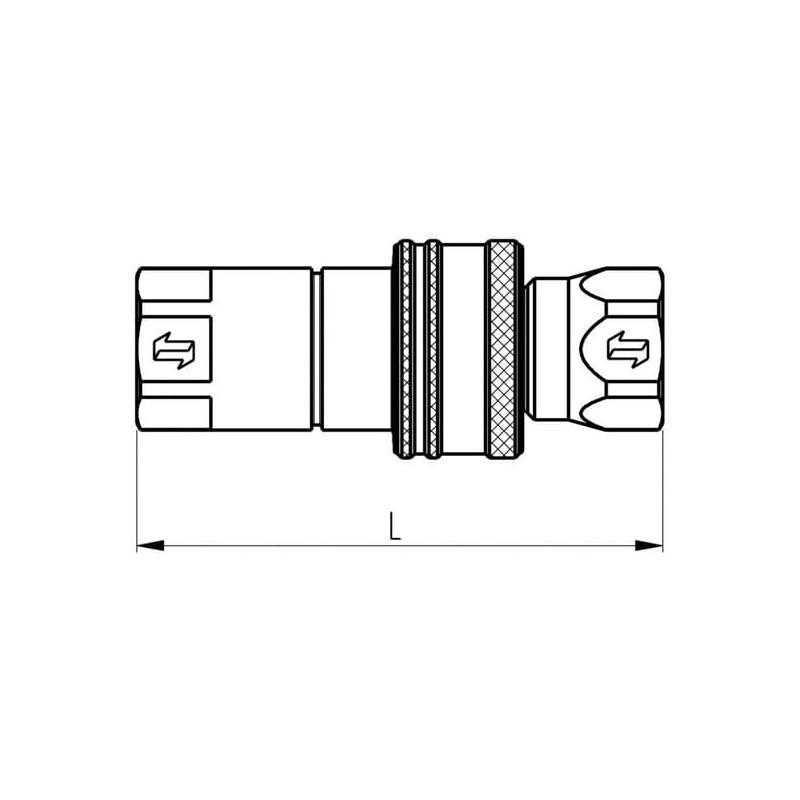

Total length1.73 Inch
LTotal length85 mm
MaterialSteel
Surface treatmentChromium-plated
Working pressure300 BAR
Max working temperature125 °C
Min. working temperature-25 °C
Quick connection Užraktasing typeRadial balls
Quick connection working typeSleeve retraction
Quick disconnection working typeSleeve retraction
Riebokšlis materialNitrile rubber [NBR]
SeriesNV
Valve typePoppet
Weight89 g[
Case - IH (10),
Series 3200,
3210,
3220,
3230,
Series 4200,
4210,
4220,
4230,
4240,
Series MX Maxxum,
MX100C Maxxum,
MX80C Maxxum,
MX90C Maxxum,
Ford (78),
Series 2000,
2000,
2600,
Series 2110 -> 4610,
2310,
2610,
2810,
2910,
3310,
3610,
3910,
4110,
4610,
Series 2150 -> 3055,
3055,
Series 3000,
3000,
3600,
3900,
Series 3010S -> 7810S,
5610S,
6610S,
6810S,
7610S,
Series 3030 -> 6630,
3230,
3430,
3930,
4130,
4630,
4830,
5030,
Series 3435 -> 7635,
3435,
3935,
4135,
Series 4000,
4000,
4100,
4600,
Series 4340 -> 8340,
5640,
6640,
7740,
7840,
Series 5000,
5000,
5100,
5600,
5700,
5900,
Series 5110 -> 8210,
5110,
5610,
6410,
6610,
6710,
6810,
7410,
7610,
7710,
7810,
7910,
8210,
Series 6000,
6000,
6600,
6700,
Series 7000,
7000,
7100,
7600,
7700,
Series 7530 -> 8830,
8530,
8630,
8730,
8830,
Series 8000,
8200,
8400,
8600,
8700,
Series 9000,
9200,
9600,
9700,
Series TW5 -> TW35,
TW10,
TW15,
TW20,
TW25,
TW30,
TW35,
TW5,
John Deere (29),
Series 2000 - 40,
2040,
2440,
2640,
2940,
Series 5000 - 20,
5620,
5720,
5820,
Series 5000 - 25,
5425N,
Series 5000 - E,
5090E,
5090EL,
Series 5000 - M,
5075M,
Series 7000 - 30,
7830 Russia,
7930 Russia,
Series 7000 - R,
7310R,
Series 8000 - 30,
8430,
8630,
Series 8000 - R Russia,
8285R Russia,
8310R Russia,
Series 9000 - R/RT,
9370R,
9420R,
9470R,
9470RT,
9520R,
9520RT,
9570R,
9570RT,
9620R,
Series 9000 - R/RT Russia,
9410R Russia,
9460R Russia,
Landini (5),
Series Large,
12500,
14500,
Series Large Imported 1,
16000,
16500,
9550,
Massey Ferguson (39),
Series 1004 -> 1134,
1114,
1134,
Series 1080 -> 1100,
1080,
1100,
Series 1200 - 1250,
1200,
1250,
Series 130 -> 152,
135,
148,
Series 155 -> 168,
165,
168,
Series 175 -> 188,
175,
178,
185,
188,
Series 200,
240,
265,
275,
285,
290,
298,
Series 230 -> 293,
230,
Series 2620 -> 2720,
2620,
2640,
2680,
2720,
Series 2625 -> 2725,
2625,
2645,
2685,
2725,
Series 390T->1004T,
698T,
Series 500,
550,
565,
575,
590,
595,
Series 600,
675,
690,
698T,
699,
McCormick (22),
Series MC,
MC100,
MC105,
MC115,
MC120 Power 6 Tier 2,
MC135 Power 6 Tier 2,
MC80,
MC90,
MC95,
Series MTX,
MTX110,
MTX120,
MTX125,
MTX135,
MTX140,
MTX150,
MTX155,
MTX165,
MTX175,
MTX185,
MTX200,
Series XTX,
XTX 185,
XTX 200,
XTX 215,
New Holland (10),
Series 30,
3930,
Series 35,
4635,
4835,
5635,
6635,
7635,
Series 40,
5640,
6640,
7740,
7840
