Part number SHP076KR
EAN8716106662937
Unit Each

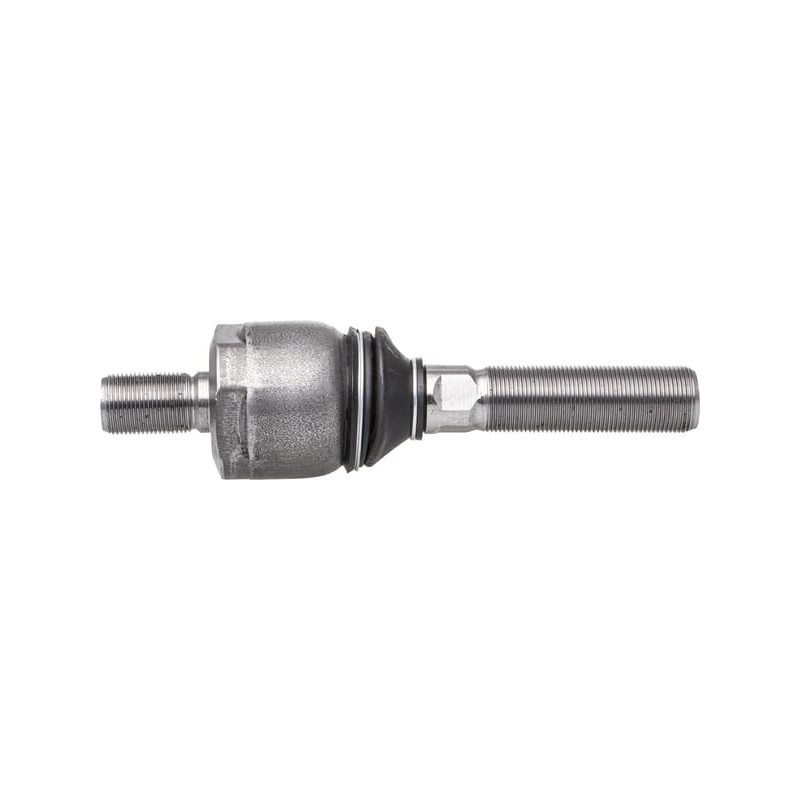

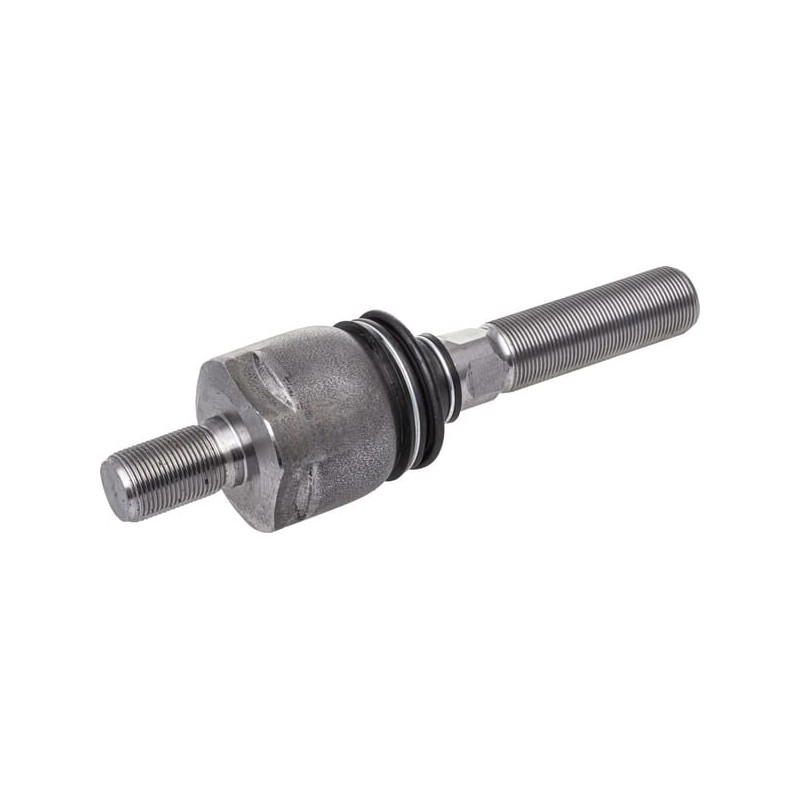

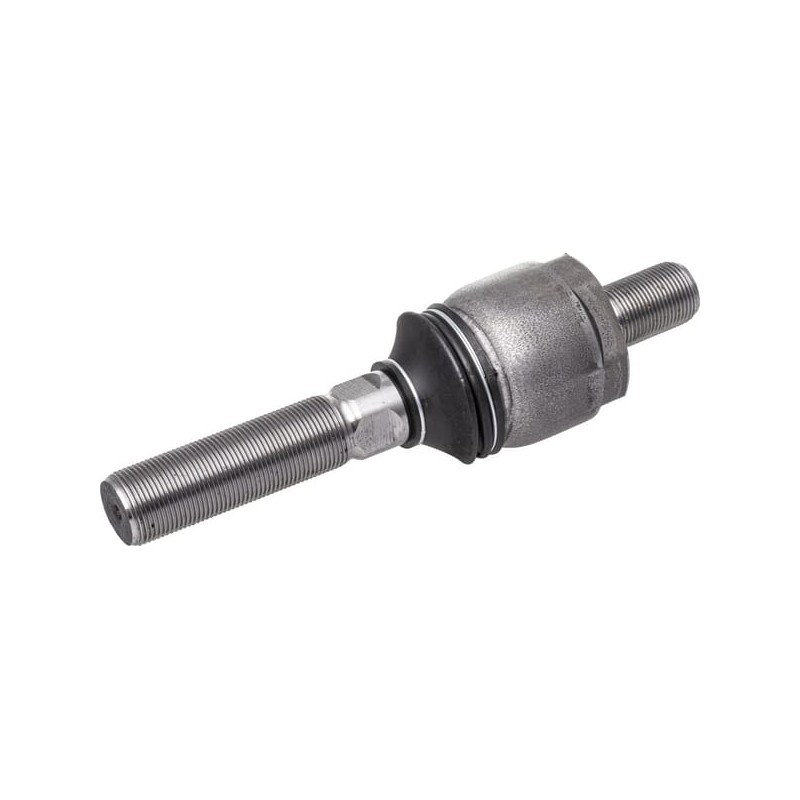

Long descriptionOverview axial tie rods

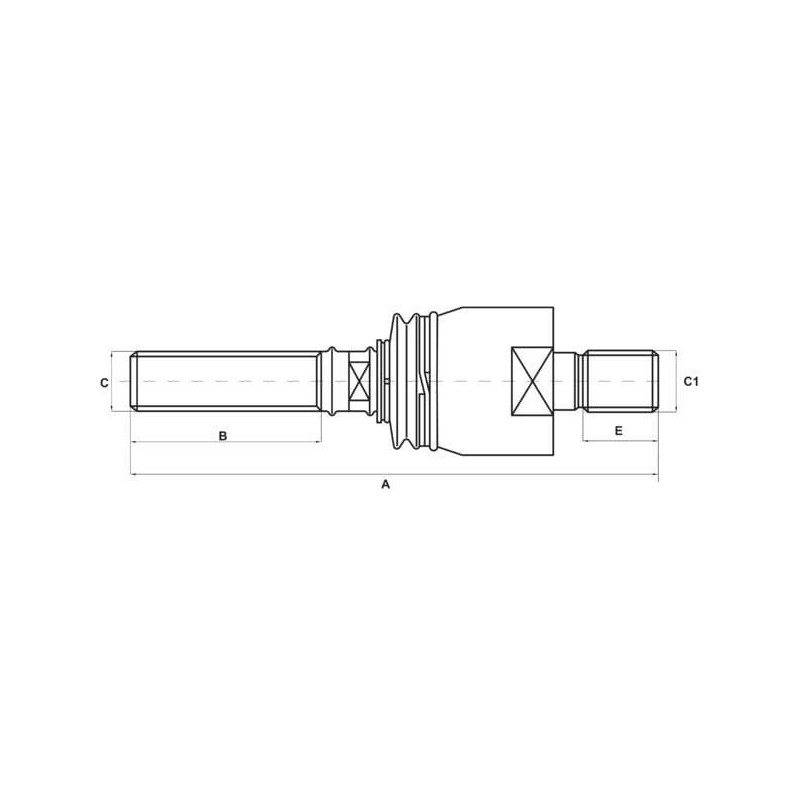

CThread diameter - rod sideM24
CThread pitch - rod side1.50 mm
End cone length37 mm
C1Thread diameter - end side (wheel) (metric)M22
C1Pitch of thread - end side (wheel) (mm)1.50 mm
Working length208 mm
ATotal length213 mm
BThread length - rod side74 mm
CThread type - rod sideMetric
CThread direction - rod sideRight
Thread length - end side (wheel) (mm)30.7 mm
C1Thread type - end side (wheel)Metric
C1Thread direction - end side (wheel)Right
Head width56 mm
Ball diameter40 mm[
Case - IH (18),
Series 5000 Maxxum,
5120,
5130,
5140,
5150,
Series CVX,
CVX1170,
Series JXU,
JXU105,
JXU115,
JXU75,
JXU85,
JXU95,
Series MX Maxxum,
MX100 Maxxum,
MX100C Maxxum,
MX110 Maxxum,
MX120 Maxxum,
MX135 Maxxum,
MX150 Maxxum,
MX170 Maxxum,
MX90C Maxxum,
Claas (91),
Series Ares 500,
Arès 546,
Arès 547,
Arès 556,
Arès 557,
Arès 566,
Arès 567,
Arès 577,
Series Ares 600,
Arès 616,
Arès 617,
Arès 656,
Arès 657,
Arès 696,
Arès 697,
Series Ares 800,
Arès 816,
Arès 826,
Arès 836,
Series Arion 400,
Arion 410 Stage IV Sn.A5200010-A5209999,
Arion 410 Stage IV Sn.A5300010-A5309999,
Arion 410 Stage V Sn.A7200010-A7209999,
Arion 420,
Arion 420 M Stage IV Sn.A4300050-A4309999,
Arion 420 Stage IV Sn.A5200010-A5209999,
Arion 420 Stage IV Sn.A5300010-A5309999,
Arion 420 Stage V Sn.A7300010-A7309999,
Arion 430,
Arion 430 M Stage IV Sn.A4300050-A4309999,
Arion 430 Stage IV Sn.A4300010-A4309999,
Arion 430 Stage IV Sn.A5200010-A5209999,
Arion 430 Stage IV Sn.A5300010-A5309999,
Arion 430 Stage V Sn.A7300010-A7309999,
Arion 440 M Stage IV Sn.A4300050-A4309999,
Arion 440 Stage IV Sn.A4300010-A4309999,
Arion 440 Stage IV Sn.A5200010-A5209999,
Arion 440 Stage IV Sn.A5300010-A5309999,
Arion 440 Stage V Sn.A7300010-A7309999,
Arion 450 M Stage IV Sn.A4300050-A4309999,
Arion 450 Stage IV Sn.A4300010-A4309999,
Arion 450 Stage IV Sn.A5200010-A5209999,
Arion 450 Stage IV Sn.A5300010-A5309999,
Arion 450 Stage V Sn.A7300010-A7309999,
Arion 460 M Stage IV Sn.A4300050-A4309999,
Arion 460 Stage IV Sn.A4300010-A4309999,
Arion 460 Stage IV Sn.A5200010-A5209999,
Arion 460 Stage IV Sn.A5300010-A5309999,
Arion 460 Stage V Sn.A7300010-A7309999,
Arion 470 Stage V Sn.A7300010-A7309999,
Series Arion 400 Cmatic,
Arion 410 C,
Arion 420 C,
Arion 430 C,
Series Arion 500,
Arion 510,
Arion 520,
Arion 530,
Arion 540,
Series Arion 500 Cmatic,
Arion 510C,
Arion 520C,
Arion 530C,
Arion 540 CMATIC Stage IIIb Sn.A3500004-A3599999,
Arion 540C,
Arion 550 CMATIC Stage IIIb Sn.A3500004-A3599999,
Series Arion 500 Hexashift,
Arion 540 HEXA Stage IIIb Sn.A3400050-A3499999,
Arion 550 HEXA Stage IIIb Sn.A3400050-A3499999,
Series Arion 600,
Arion 610,
Arion 620,
Arion 630,
Arion 640,
Series Arion 600 CMATIC,
Arion 610C,
Arion 620 CMATIC Stage IIIb Sn.A370008-A3799999,
Arion 620C,
Arion 630 CMATIC Stage IIIb Sn.A370008-A3799999,
Arion 630C,
Arion 640 C,
Arion 640 CMATIC Stage IIIb Sn.A370008-A3799999,
Arion 650 CMATIC Stage IIIb Sn.A370008-A3799999,
Series Arion 600 Hexashift,
Arion 620 Hexashift Stage IIIb Sn.A3600050-A3699999,
Arion 630 HEXA Stage IIIb Sn.A3600050-A3699999,
Arion 640 HEXA Stage IIIb Sn.A3600050-A3699999,
Arion 650 HEXA Stage IIIb Sn.A3600050-A3699999,
Series Atlès,
Atlès 926,
Atlès 936,
Series Axos,
Axos 310,
Axos 320,
Axos 330,
Axos 340,
Series Celtis / Celtis Farming,
Celtis 426,
Celtis 436,
Celtis 446,
Celtis 456,
Celtis Farming 426 Sn.A2400050-A2499999,
Celtis Farming 436 Sn.A2400050-A2499999,
Celtis Farming 446 Sn.A2400050-A2499999,
Celtis Farming 456 Sn.A2400050-A2499999,
DEUTZ-FAHR (57),
Series Agrotron MK1,
Agrotron 4.70 Sn.-> 8001/8002,
Agrotron 4.80 Sn.-> 8003/8004,
Agrotron 4.85 Sn.-> 8005/8006,
Agrotron 4.90 Sn.-> 8007/8008,
Agrotron 4.95 Sn.-> 8009/8010,
Agrotron 6.00 Sn.-> 8011/8012,
Agrotron 6.01 Sn.-> 8028,
Agrotron 6.05 Sn.-> 8013/8014,
Agrotron 6.15 Sn.-> 8015/8016,
Agrotron 6.20 Sn.-> 8017/8018,
Agrotron 6.30 Sn.-> 8019,
Agrotron 6.45 Sn.-> 8020,
Series Agrotron MK3,
Agrotron 100MK3 Sn.-> 8087 1001,
Agrotron 105MK3 Sn.-> 8088 1001,
Agrotron 106MK3 Sn.-> 8089 1001,
Agrotron 110MK3 Sn.-> 8090 1001,
Agrotron 115MK3 Sn.-> 8091 1001,
Agrotron 120MK3 Sn.-> 8092 0010,
Agrotron 120MK3 Sn.-> 8092 2001,
Agrotron 135MK3 Sn.-> 8093 0010,
Agrotron 135MK3 Sn.-> 8093 2001,
Agrotron 150MK3 Sn.-> 8094 0010,
Agrotron 165MK3 Sn.-> 8095,
Agrotron 175MK3 Sn.-> 8098 1001,
Agrotron 80MK3 Sn.-> 8081 1001,
Agrotron 85MK3 Sn.-> 8083 1001,
Agrotron 90MK3 Sn.-> 8085 1001,
Series Agrotron New,
Agrotron 100MK2 Sn.-> 8009 2000 / Sn.-> 8010 2000,
Agrotron 105MK2 Sn.-> 8028 2000,
Agrotron 106 Sn.-> 8012 2000,
Agrotron 108 New Sn.-> 8110 1001,
Agrotron 110MK2 Sn.-> 8014 2000,
Agrotron 115MK2 Sn.-> 8063 2000,
Agrotron 118 New Sn.-> 8111 1001,
Agrotron 120MK2 Sn.-> 8018 2000,
Agrotron 128 New Sn.-> 8112 1001,
Agrotron 130 New Sn.-> 8165 3200,
Agrotron 135MK2 Sn.-> 8019 2000,
Agrotron 140 New Sn.-> 8114 1001,
Agrotron 150.7 New Sn.-> 8167 1201,
Agrotron 150MK2 Sn.-> 8020 2000,
Agrotron 155 New Sn.-> 8115 1001,
Agrotron 165 New Sn.-> 8095 6001,
Agrotron 165.7 New Sn.-> 8168 1201,
Agrotron 80 Sn.-> 8003 2000 / Sn.-> 8004 2000,
Agrotron 85 Sn.-> 8005 2000 / Sn.-> 8006 2000,
Series Agrotron TTV,
Agrotron TTV-1145 -> 8061 2001,
Agrotron TTV-1160 -> 8062 2001,
Agrotron TTV1130 Sn.-> 8060 2001,
Agrotron TTV1145 Sn.-> 8061 2001,
Agrotron TTV1160 -8062 2001,
TTV1130,
TTV1145,
TTV1160,
Series DX 2/4/5/6/7/8,
DX6.10,
DX6.30,
DX6.50,
Dana Axles (18),
Series Massey Ferguson Dana,
730-605,
730-610,
735-522,
735-524,
735-525,
735-526,
735-602,
735-603,
735-604,
735-610,
735-611,
735-613,
740-540,
740-605,
740-607,
740-608,
740-609,
740-614,
Fendt (12),
Series Favorit 600,
Favorit 611 - Sn.282/00001-99999,
Favorit 611 - Sn.382/00001-99999,
Favorit 612 - Sn.283/00001-99999,
Favorit 612 - Sn.383/00001-99999,
Favorit 614 - Sn.284/00001-99999,
Favorit 614 - Sn.384/00001-99999,
Favorit 615 - Sn.285/00001-99999,
Favorit 615 - Sn.385/00001-99999,
Series Favorit 600 SL Turbomatik,
Favorit 611LS(A) Turbomatik,
Favorit 612LSA Turbomatik,
Favorit 614LSA Turbomatik,
Favorit 615LSA Turbomatik,
Ford (14),
Series 3030 -> 6630,
4630,
Series 4340 -> 8340,
5640,
6640,
7740,
7840,
8240,
8340,
Series 5110 -> 8210,
7910,
8210,
Series 7530 -> 8830,
8530,
8630,
Series TW5 -> TW35,
TW15,
TW25,
TW5,
John Deere (78),
Series 2000 - 40,
2040S,
2140,
Series 3000 - 40,
3040,
3140,
3340,
Series 50,
2750,
2950,
3050,
3150,
3350,
Series 5000 - 20,
5620,
5720,
5820,
Series 5000 - R,
5080R,
5080RN,
5090R,
5100R,
Series 6000,
6300,
6400,
6506,
6600,
6800,
6900,
Series 6000 - 10,
6010,
6110,
6210,
6310,
6310S,
6410,
6410S,
6510,
6510S,
6610,
6810,
6910,
Series 6000 - 20,
6020,
6120,
6120L,
6220,
6220L,
6320,
6420,
6420S,
6520,
6620,
6820,
6920,
Series 6000 - M,
6105M,
6115M,
6125M,
Series 6000 - MC,
6090MC,
6100MC,
6110MC,
Series 6000 - R,
6105R,
6115R,
6125R,
6130R,
Series 6000 - R Small & Mid Frame,
6110R Small & Mid Frame,
6120R Small & Mid Frame,
Series 6000 - RC,
6090RC,
6100RC,
6110RC,
Series 7000,
7500,
Series SE6000 - 10,
SE6010,
SE6110,
SE6210,
SE6310,
SE6410,
SE6510,
SE6610,
Series SE6000 - 20,
SE6020,
SE6120,
SE6220,
SE6320,
SE6420,
SE6520,
SE6620,
Spare Parts,
Lamborghini (8),
Series R 6,
R6.130 until 12 / 2007,
R6.130S,
R6.140S,
R6.150,
R6.150.7,
R6.150S,
R6.165.7,
R6.165S,
Landini (69),
Series 500,
16500,
19500,
Series 6L T4i,
6 Tier 4i (2013-) 6-145,
6 Tier 4i (2013-) 6-160,
6 Tier 4i (2013-) 6-175,
6L Tier 4i (2014-) 6-160L,
6L Tier 4i (2014-) 6-175L,
Series 7 145-185,
7-145 (2009-2013),
7-165 (2009-2013),
7-185 (2009-2013),
Series 7 Tier4,
7 Tier 4 (2012-2013) 7-180,
7 Tier 4 (2012-2013) 7-195,
7 Tier 4 (2012-2013) 7-205,
Series 7 Tier4f,
7 Tier 4f (2017) 7-160,
7 Tier 4f (2017) 7-180,
7 Tier 4f (2017) 7-200,
7 Tier 4f (2017) 7-220,
7 Tier 4f (2017) 7-230,
Series 7 Tier4i,
7 Tier 4i (2013-2018) 7-160,
7 Tier 4i (2013-2018) 7-175,
7 Tier 4i (2013-2018) 7-190,
7 Tier 4i (2013-2018) 7-215,
Series 7 V-Shift Tier4f RPD7,
7 V-Shift Tier 4f RPD7 (2018) 7-145,
7 V-Shift Tier 4f RPD7 (2018) 7-165,
7 V-Shift Tier 4f RPD7 (2018) 7-175,
Series 7 V-Shift Tier4f RPE5,
7 V-Shift Tier 4f RPE5 (2018) 7-175,
7 V-Shift Tier 4f RPE5 (2018) 7-190,
Series 7 V-Shift Tier4i,
7 V-Shift Tier 4i (2015-2018) 7-175,
7 V-Shift Tier 4i (2015-2018) 7-190,
Series L (large importato 2),
L200,
Series Landpower,
Landpower 145 (2006-2007),
Landpower 160 BLU (2006-2007),
Landpower 165 (2006-2007),
Landpower 185 (2006-2007),
Series Landpower IVECO Tier 3,
Landpower 145 Iveco Tier 3 (2007-2012),
Landpower 165 Iveco Tier 3 (2007-2012),
Landpower 180 Iveco Tier 3 (2007-2012),
Series Landpower Tier 3 New Cab,
Landpower 145 Tier 3 New Cab (2012-),
Landpower 165 Tier 3 New Cab (2012-),
Series Large,
12500,
14500,
Series Large Imported 1,
16550,
17500,
19000,
Series Legend I,
Legend I 105,
Legend I 115,
Legend I 130,
Legend I 145,
Legend I 165,
Series Legend II,
Legend II 140,
Legend II 160,
Legend II 180,
Series Legend N-G TDI,
Legend 145 TDI (2004-2006),
Legend 160 BLU (2004-2006),
Legend 165 TDI (2004-2006),
Legend 185 TDI (2004-2006),
Series PowerMondial,
120 (2009-2014),
Series Powerfarm Meccanico Tier 3,
145 (2006-2009),
165 (2006-2009),
180 (2006-2009),
180/190 (2006-2009),
200/210 (2006-2009),
220/230 (2006-2009),
Series Robo-Six,
7 ROBO-SIX Tier 4f (2018) 7-145,
7 ROBO-SIX Tier 4f (2018) 7-165,
7 ROBO-SIX Tier 4f (2018) 7-175,
Series Vision,
V-Shift Tier 4i 6-145 (2015-2018),
V-Shift Tier 4i 6-160 (2015-2018),
V-Shift Tier 4i 6-175 (2015-2018),
Massey Ferguson (85),
Series 1004 -> 1134,
1114,
1134,
Series 3000,
3085,
3095,
Series 3100,
3120,
3125,
Series 3600,
3610,
3615,
3630,
3635,
3645,
3650,
3655,
3670,
3680,
3690,
Series 5400,
5460,
5465,
5470,
5475,
5480,
Series 5600,
5611,
5611 Dyna 4 Sn.D288050-999999,
5611 Dyna 6 Sn.D298025-G309028,
5612 Dyna 4 Sn.D294054-G334056,
5612 Dyna 6 Sn.D295023-G165048,
5613 Dyna 4 Sn.E014019-G350024,
5613 Dyna 6 Sn.E023046-G307020,
Series 6100,
6170,
6180,
6190,
Series 6200,
6270,
6280,
6290,
Series 6400,
6460,
6465,
6470,
6475,
6480,
Series 6600,
6612,
6613,
6614,
6615,
6616,
Series 7400,
7465,
7475,
7480,
7485,
7490,
7495,
Series 7600,
7614,
7615,
7616,
7618,
Series 8100,
8110,
8120,
8130,
8140,
8150,
8160,
Series 8200,
8210,
8220,
8220Xtra,
8240,
8240Xtra,
8250,
8250Xtra,
Series Massey Ferguson Dana,
730-605,
730-610,
735-522,
735-524,
735-525,
735-526,
735-602,
735-603,
735-604,
735-610,
735-611,
735-613,
740-540,
740-605,
740-607,
740-608,
740-609,
740-614,
McCormick (55),
Series G-Max,
G-Max 145 Iveco Tier 3 (2007-2012),
G-Max 145 Tier 3 New Cab (2012),
G-Max 160 (2008),
G-Max 165 Iveco Tier 3 (2007-2012),
G-Max 165 Tier 3 New Cab (2012),
G-Max 180 Iveco Tier 3 (2007-2012),
Series MC,
MC100,
MC100 MC (2002-2007),
MC105,
MC105 Tier 2 MC (2002-2007),
MC110 Power 4 Tier 3 Restyling (2009-2013),
MC115,
MC115 Power 4 Tier 3 (2008-2009),
MC115 Power 4 Tier 3 Restyling (2009-2013),
MC115 Tier 2 MC (2002-2007),
MC115MC (2002-2007),
MC120 Power 6 MC (2002-2007),
MC130 Power 4 Tier 3 (2008-2009),
MC130 Power 4 Tier 3 Restyling (2009-2013),
MC135 Power 6 MC (2002-2007),
MC80 (2002-2007),
MC90,
MC90 (2002-2007),
MC95,
MC95 Tier 2 MC (2002-2007),
Series MTX,
MTX110,
MTX110 (2002-2007),
MTX120,
MTX120 (2002-2007),
MTX120 Tier 3 (2009),
MTX125,
MTX125 (2002-2007),
MTX135,
MTX135 (2002-2007),
MTX135 Tier 3 (2009),
MTX140,
MTX140 (2002-2007),
MTX145 Tier 3 (2009),
MTX150,
MTX150 B POWER (2002-2007),
MTX150 Tier 3 (2009),
MTX155,
MTX155 (2002-2007),
MTX165,
MTX165 (2002-2007),
MTX185 (2002-2007),
Series X,
X6.470 T4i LWB (2014-2018),
X6.480 T4i LWB (2014-2018),
X7.440 P6-Drive Tier 4f (2018),
X7.440 Tier 4i (2013-2018),
X7.440 VT-Drive Tier 4f (2018) RPD7,
X7.450 P6-Drive Tier 4f (2018),
X7.450 Tier 4i (2013-2018),
X7.460 P6-Drive Tier 4f (2018),
X7.460 Tier 4i (2013-2018),
New Holland (12),
Series 40,
5640,
6640,
7740,
7840,
8240,
8340,
Series T 5000,
T5030,
T5040,
T5050,
T5060,
T5070,
Series T 7500,
T7510,
Renault (18),
Series Arès,
Ares 540RX,
Ares 546RX,
Ares 550RX,
Ares 610RX/RZ,
Ares 620RX/RZ,
Ares 630RX/RZ,
Ares 640RZ,
Ares 710RZ,
Ares 720RZ,
Ares 725RZ,
Ares 735RZ,
Series Atlès,
Atles 915RZ,
Atles 925RZ,
Atles 926RZ,
Atles 935RZ,
Atles 936RZ,
Series R,
103-54TA,TE,TS,TX (R 7822),
106-54TL,TS (R 7842),
Same (8),
Series Iron,
Iron 130 until 12 / 2007,
Iron 130S,
Iron 140S,
Iron 150,
Iron 150.7,
Iron 150S,
Iron 165.7,
Iron 165S,
Steyr (3),
Series 9155 -> 9190,
9155,
9170,
9190,
Valtra / Valmet (112),
Series HiTech,
6250 HiTech,
6350 HiTech,
6550 HiTech,
6650 HiTech,
6750 HiTech,
6850 HiTech,
8050 HiTech,
8150 HiTech,
8350 HiTech,
8450 HiTech,
8550 HiTech,
8950 HiTech,
Series M,
M120,
M120 Ecopower,
M130,
M150,
Series Mega,
Mega 8000,
Mega 8000LS,
Mega 8050,
Mega 8100,
Mega 8100E,
Mega 8100LS,
Mega 8150,
Mega 8200,
Mega 8200E,
Mega 8400,
Mega 8450,
Mega 8450E,
Mega 8550,
Mega 8750,
Series Mezzo,
Mezzo 6200,
Mezzo 6300,
Mezzo 6300LS,
Mezzo 6400,
Mezzo 6400LS,
Mezzo 6600,
Mezzo 6600E,
Mezzo 6800,
Mezzo 6800E,
Mezzo 6900,
Series N..2,
N122 Direct,
N122 Versu,
N122D,
N122V,
N142 Versu,
N142V,
Series N..3,
N143D,
N143V,
N163V,
Series T..0,
T120,
T120C,
T120CH,
T130,
T130C,
T130CH,
T140 Ecopower,
T140EC,
T140ECH,
T150,
T150C,
T150CH,
T160,
T160C,
T160CH,
T170,
T170C,
T170CH,
T180,
T190,
Series T..1,
T121C,
T121H,
T131C,
T131H,
T151EH,
T151ELS,
T161C,
T161H,
T161LS,
T171C,
T171H,
T171LS,
T191H,
T191LS,
Series T..2,
T132 Direct,
T132 Versu,
T152 Direct,
T152 Versu,
T162 Direct,
T162 Ecopower Versu,
T172 Direct,
T172 Versu,
T182 Direct,
T182 Versu,
T202 Direct,
T202 Versu,
Series T..3,
T133H,
T153D,
T153H,
T153V,
T163ED,
T163EV,
T173H,
T183D,
T183V,
T193H,
T203D,
T213V,
Series X,
X100,
X110,
X120,
Series XM,
XM130,
XM150
