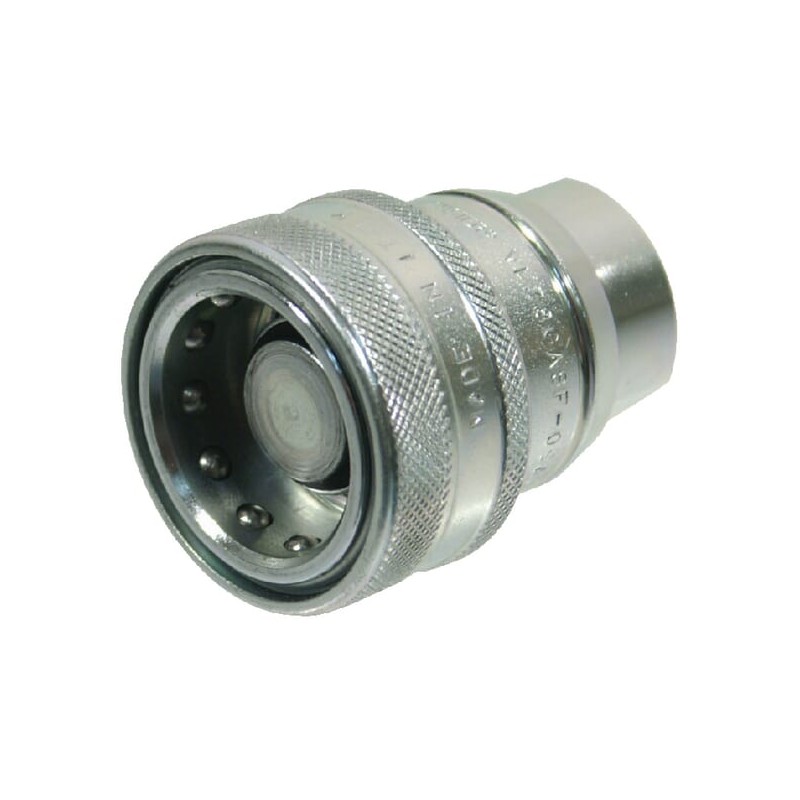

Part number VF012GASF
EAN
Unit Each
ProsLow leakage
Product detailsNo air pockets during coupling Cannot be connected under pressure Coupling must be screwed as tight as possible Screw coupling with special flat valve
Long descriptionApplication range: Hydraulic brake systems Mineral oil-based fluids Benefits: Low leakage Details: Screw coupling with special flat valve Properties: No air pockets duri
ShapeStraight - 2 connection sides
Connection no 1 typeQuick coupling
Connection no 1 type - male/femaleFemale
Connection no 1 diameter44 mm

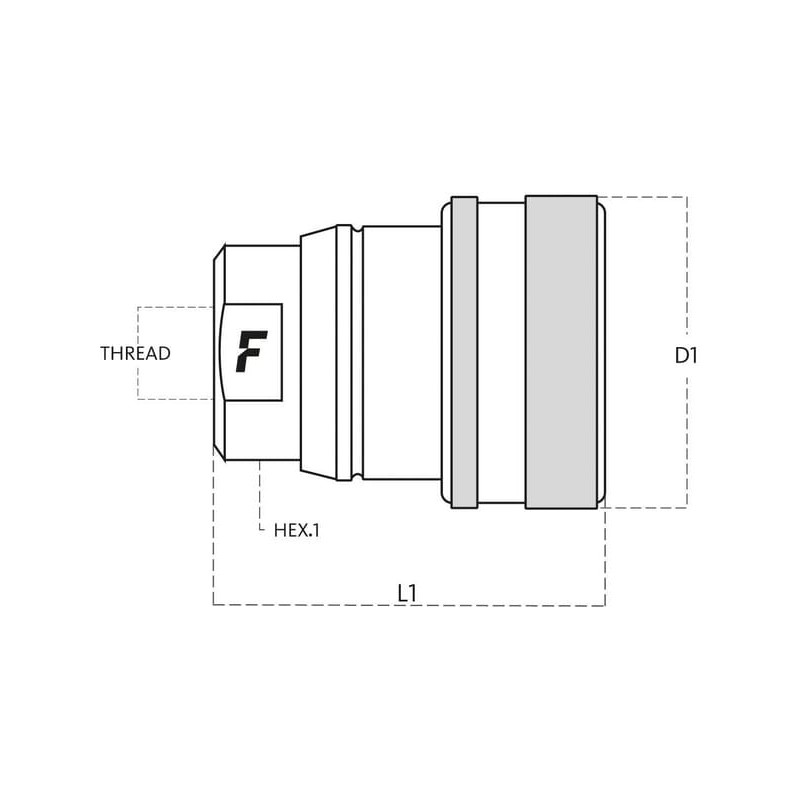

THREADConnection no 1 thread diameter1/2 Inch
Connection no 1 thread typeBSP
Connection no 1 thread type code0
Connection no 1 hex size1.06 Inch
HEX.1Connection no 1 hex size27 mm
Body size3/8 Inch
Body size10 mm
Connection 2, typeThread
Connection 2, type - male/femaleFemale
Connection 2, thread diameter1/2 Inch
Connection 2, threads per inch14
Connection 2, thread typeBSPP
Connectable under pressureNo
ISO standard5676
BS standard5380
Flow rate at 2 bar40 l/min
Outside diameter1.73 Inch
Outside diameter44 mm
L1Total length2.32 Inch
L1Total length54.5 mm
MaterialSteel
Surface treatmentWhite passivated
Working pressure150 BAR
Max working temperature125 °C
Min. working temperature-25 °C
Quick connection Užraktasing typeRadial balls
Quick connection working typeSleeve retraction
Quick disconnection working typeSleeve retraction
Riebokšlis materialNitrile rubber [NBR] Teflon (PTFE)
SeriesVF
Valve typeFlat
Weight379.7 g[
Case - IH (172),
Series 3200,
3210,
3220,
3230,
Series 33,
433,
533,
633,
733,
833,
Series 4200,
4210,
4220,
4230,
4240,
Series 43 44 45,
644,
743 / 743XL,
744,
745 / 745XL,
745S,
844,
844S,
844XL,
845 / 845XL,
Series 46,
1046,
1246,
946,
Series 5000 Maxxum,
5120,
5130,
5140,
5150,
Series 55,
1055 / 1055XL,
1255 / 1255XL,
1455 / 1455XL,
955 / 955XL,
Series 56,
1056 / 1056XL,
856 / 856XL,
956 / 956XL,
Series 7000 Magnum,
7210,
7220,
7230,
7240,
7250,
Series 74 75 76 84 85 86 94 95,
276,
384,
385,
395,
474,
484,
485 / 485XL,
495 / 495XL,
574,
584,
585 / 585XL,
595 / 595XL,
674,
684,
685 / 685XL,
695 / 695XL,
784,
785 / 785XL,
795 / 795XL,
885 / 885XL,
895 / 895XL,
995 / 995XL,
Series C,
C100,
C50,
C60,
C70,
C80,
C90,
Series CX,
CX100,
CX50,
CX60,
CX70,
CX80,
CX90,
Series Farmall JX,
Farmall JX75,
Series International / McCormick 238 ->454,
354,
414,
434,
444,
454,
Series JX,
JX55,
JX60,
JX65,
JX70,
JX80,
JX85,
JX90,
JX95,
Series JXC Maxxima,
JX1060C Maxxima,
JX1070C Maxxima,
JX1075C Maxxima,
JX1085C Maxxima,
JX1095C Maxxima,
Series JXN Maxxima,
JX1070N Maxxima,
JX1075N Maxxima,
JX1095N Maxxima,
Series JXU,
JXU105,
JXU75,
JXU85,
JXU95,
Series JXU Maxxima,
JX100U Maxxima,
JX1070U Maxxima,
JX1080U Maxxima,
JX1090U Maxxima,
JX1100U Maxxima,
JX70U Maxxima,
JX80U Maxxima,
JX90U Maxxima,
Series JXV Maxxima,
JX1060V Maxxima,
JX1070V Maxxima,
JX1075V Maxxima,
JX1095V Maxxima,
Series MX Magnum,
MX180 Magnum,
MX200 Magnum,
MX210 Magnum,
MX220 Magnum,
MX230 Magnum,
MX240 Magnum,
MX255 Magnum,
MX270 Magnum,
MX285 Magnum,
Series MX Maxxum,
MX100C Maxxum,
MX80C Maxxum,
MX90C Maxxum,
Series MXM Maxxum Pro,
MXM120,
MXM130,
MXM135,
MXM140,
MXM150,
MXM155,
MXM165,
MXM175,
MXM180,
MXM190,
Series MXU Maxxum,
MXU100 Maxxum,
MXU100 Maxxum Pro,
MXU100 Maxxum X,
MXU110 Maxxum,
MXU110 Maxxum Pro,
MXU110 Maxxum X,
MXU115 Maxxum,
MXU115 Maxxum Pro,
MXU115 Maxxum X,
MXU125 Maxxum,
MXU125 Maxxum Pro,
MXU130 Maxxum X,
MXU135 Maxxum,
MXU135 Maxxum Pro,
Series Maxxum,
Maxxum 100X,
Maxxum 110,
Maxxum 115,
Maxxum 120,
Maxxum 125,
Maxxum 130,
Maxxum 140,
Series Maxxum EP Efficient Power Tier 4A,
Maxxum 110 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 115 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 120 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 125 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 130 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 140 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Series Maxxum Tier 4B,
Maxxum 115 - Engine Tier 4B, >3/15,
Maxxum 125 - Engine Tier 4B, >3/15,
Series Puma,
Puma 115,
Puma 125,
Puma 140,
Puma 155,
Puma 165,
Puma 165 - Engine Tier 4B, >5/15,
Puma 180,
Puma 195,
Puma 210,
McCormick (15),
Series C,
C100,
C50,
C60,
C70,
C80,
C90,
Series CX,
CX 100,
CX 50,
CX 60,
CX 70,
CX 80,
CX 90,
Series MC,
MC100,
MC80,
MC90,
Renault (25),
Series Arès,
Ares 540RX,
Ares 546RX,
Ares 550RX,
Ares 556RX,
Ares 610RX/RZ,
Ares 616RZ,
Ares 620RX/RZ,
Ares 626,
Ares 630RX/RZ,
Ares 636,
Ares 640RZ,
Ares 656RZ,
Ares 696RZ,
Ares 710RZ,
Ares 715,
Ares 720RZ,
Ares 725RZ,
Ares 735RZ,
Ares 815RZ,
Ares 816RZ,
Ares 825RZ,
Ares 826RZ,
Ares 836RZ,
Series Atlès,
Atles 926RZ,
Atles 936RZ
