Part number 1000241EXB
EAN
Unit Each

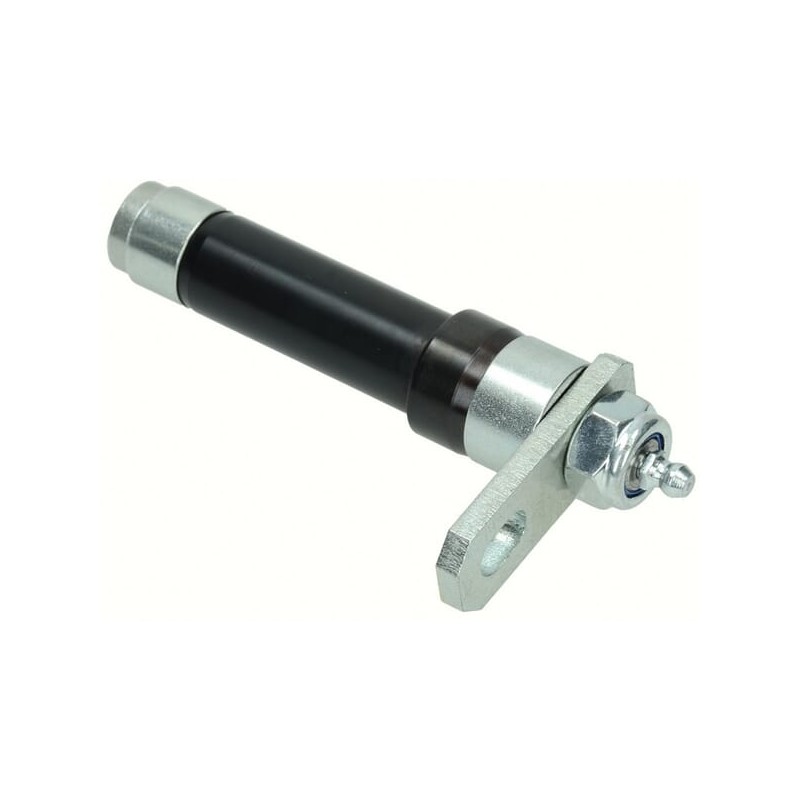

DetailsThe extenderbolt eliminates steering play fast, enduring and cost-effective. Through the spread of the cone sleeves deformations of the flap up to 2mm can be adjusted.
Application rangeAgriculture Mining Construction machines Seafaring Forestry Oil and gas industry
PropertiesShort assembly time
BenefitsThe bore does not require any further work Economical

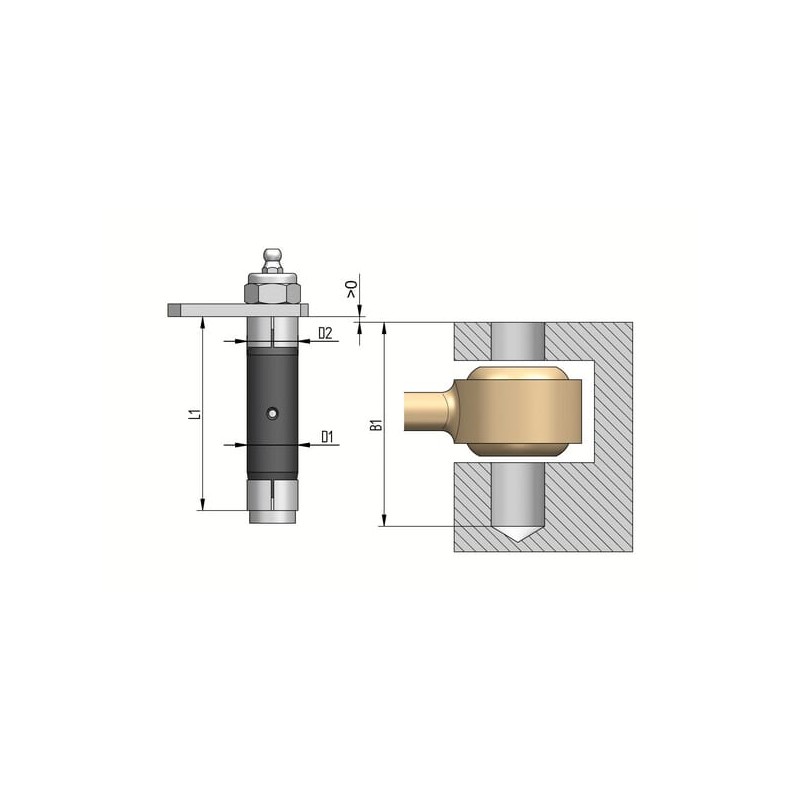

D1Pin outside diameter25 mm20 mm
L1Length99 mm
D2Head diameter25 mm20 mm
B1Head height94 mm
Grease hole typeBlind
Grease nippleYes[
Case - IH (91),
Series Farmall A,
Farmall 105A,
Farmall 115A,
Farmall 85A,
Farmall 95A,
Series Farmall JX,
Farmall JX80,
Farmall JX90,
Series JX Maxxima,
JX75 Maxxima,
JX80 Maxxima,
JX95 Maxxima,
Series JXU Maxxima,
JX100U Maxxima,
JX1070U Maxxima,
JX1080U Maxxima,
JX1090U Maxxima,
JX1100U Maxxima,
JX70U Maxxima,
JX80U Maxxima,
JX90U Maxxima,
Series MX Maxxum,
MX135 Maxxum,
Series MXM Maxxum Pro,
MXM120,
MXM120 Maxxum Pro,
MXM130,
MXM130 Maxxum Pro,
MXM135,
MXM140,
MXM140 Maxxum Pro,
Series MXU Maxxum,
MXU100 Maxxum,
MXU100 Maxxum Pro,
MXU100 Maxxum X,
MXU110 Maxxum,
MXU110 Maxxum Pro,
MXU110 Maxxum X,
MXU115 Maxxum,
MXU115 Maxxum Pro,
MXU115 Maxxum X,
MXU125 Maxxum,
MXU125 Maxxum Pro,
MXU130 Maxxum X,
MXU135 Maxxum,
MXU135 Maxxum Pro,
Series Maxxum,
Maxxum 100,
Maxxum 110,
Maxxum 115,
Maxxum 120,
Maxxum 125,
Maxxum 130,
Maxxum 135,
Maxxum 140,
Maxxum 145,
Maxxum 150,
Maxxum 155,
Series Maxxum CVT/CVX,
Maxxum 110CVT - Engine Tier 4A, 7/13-12/15,
Maxxum 110CVX - Engine Tier 4A, 7/13-12/15,
Maxxum 115CVT - Engine Tier 4B, >3/15,
Maxxum 115CVX - Engine Tier 4B, >7/16,
Maxxum 120CVT - Engine Tier 4A, 7/13-12/15,
Maxxum 120CVX - Engine Tier 4A, 7/13-12/15,
Maxxum 125CVT - Engine Tier 4B, >3/15,
Maxxum 125CVX - Engine Tier 4B, >7/16,
Maxxum 130CVT - Engine Tier 4A, 7/13-12/15,
Maxxum 130CVX - Engine Tier 4A, 7/13-12/15,
Maxxum 145CVT - Engine Tier 4B, >3/15,
Maxxum 145CVX - Engine Tier 4B, >7/16,
Series Maxxum EP Efficient Power Tier 4A,
Maxxum 110 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 115 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 120 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 125 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 130 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 140 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Series Maxxum EP MultiController Tier 4A,
Maxxum 100 Multi,
Maxxum 110 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 115 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 120 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 125 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 130 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 140 MultiController - Engine Tier 4A 2/12-12/15,
Series Maxxum MXU Multicontroller,
MXU100 Multi,
MXU110 Multi,
MXU115 Multi,
MXU125 Multi,
MXU135 Multi,
Series Puma,
Puma 115,
Puma 125,
Puma 130,
Puma 140,
Puma 145,
Series Puma CVT / CVX,
Puma 130CVT,
Puma 130CVX,
Puma 145CVT,
Puma 145CVX,
Puma 160CVT,
Puma 160CVX,
Fiat (13),
Series 90,
100/90,
110/90,
70/90,
80/90,
85/90,
85/90 DT,
90/90,
Series 94,
72/94,
82/94,
88/94,
88/94 DT,
Series L,
L85,
L95,
Ford (6),
Series 4340 -> 8340,
5640,
6640,
7740,
7840,
8240,
8340,
New Holland (93),
Series M,
M100,
M115,
M160,
Series T 6000,
T6010 Delta,
T6010 Plus,
T6020 Delta,
T6020 Elite,
T6020 Plus,
T6030 Delta,
T6030 Elite,
T6030 PC,
T6030 Plus,
T6030 Power / Range Command,
T6030 RC,
T6040 Elite,
T6050 Delta,
T6050 Elite,
T6050 PC,
T6050 Plus,
T6050 Power / Range Command,
T6050 RC,
T6060 Elite,
T6070 Elite,
T6070 PC,
T6070 Plus,
T6070 Power / Range Command,
T6070 RC,
Series T6 - Tier 4A / 4B,
T6.120,
T6.125 - Engine Tier 4B, 5802331704 - 47917782 APH MR 85KW,
T6.140,
T6.145 - Engine Tier 4B, 5802331702 - 47917770 APH MR 96KW,
T6.150,
T6.155,
T6.160,
T6.165,
T6.175,
Series T6.XXX Auto Command Tier 4B / Stage V,
T6.140 - Engine TIER 4B (7/13-12/15),
T6.145 - Engine TIER 4B (3/15-),
T6.145 - Engine TIER 4B (7/13-),
T6.150 - Engine TIER 4B (7/13-12/15),
T6.155 - Engine TIER 4B (3/15-),
T6.155 - Engine TIER 4B (7/13-),
T6.160 - Engine TIER 4B (7/13-12/15),
T6.165 - Engine TIER 4B (3/15-),
T6.165 - Engine TIER 4B (7/13-),
T6.175 - Engine TIER 4B (3/15-),
T6.175 - Engine TIER 4B (7/13-),
Series T7 PowerCommand Tier 4A,
T7.170 PowerCommand,
T7.185 PowerCommand,
Series T7 Range Command,
T7.170 RC,
T7.185 RC,
Series T7.XXX- AutoCommand Tier 4A / 4B / Stage V,
T7.170 AutoCommand,
T7.185 AutoCommand,
Series TD,
TD95,
Series TD 5000,
TD5030,
TD5040,
TD5050,
Series TD-5,
TD5.105,
TD5.115,
TD5.85,
TD5.95,
Series TD-D,
TD75D,
TD80D,
TD80DPlus,
TD90D,
TD90DPlus,
Series TL,
TL100,
TL90,
Series TL-A,
TL100A,
TL90A,
Series TM,
TM115,
TM120,
TM130,
TM140,
Series TS,
TS100,
TS110,
TS115,
TS90,
Series TS-A / TS-A Deluxe,
TS100A,
TS100A Delta,
TS100A Plus,
TS110A,
TS110A Delta,
TS110A Plus,
TS115A,
TS115A Delta,
TS115A Plus,
TS125A,
TS125A Plus,
TS130A,
TS130A Delta,
TS135A,
TS135A Plus,
Steyr (19),
Series Profi,
4100 Profi,
4110 Profi,
4115 EcoTech,
4115 Profi,
4120 Profi,
4125 EcoTech,
4125 PROFI,
4130 Profi,
4135 EcoTech,
4135 PROFI,
4135 PROFI CVT,
4145 EcoTech,
4145 PROFI,
4145 PROFI CVT,
6115 Profi,
6125 Classic,
6125 Profi,
6135 Profi,
6140 Profi
