Part number SHP259KR
EAN8716106430840
Unit Each

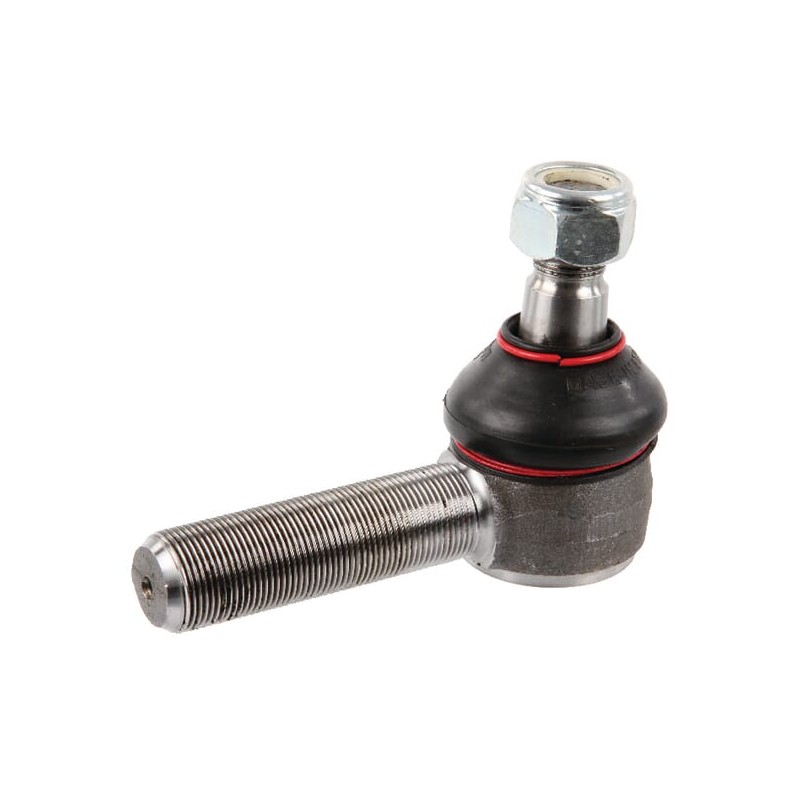

Long descriptionOverview tie rods with male thread

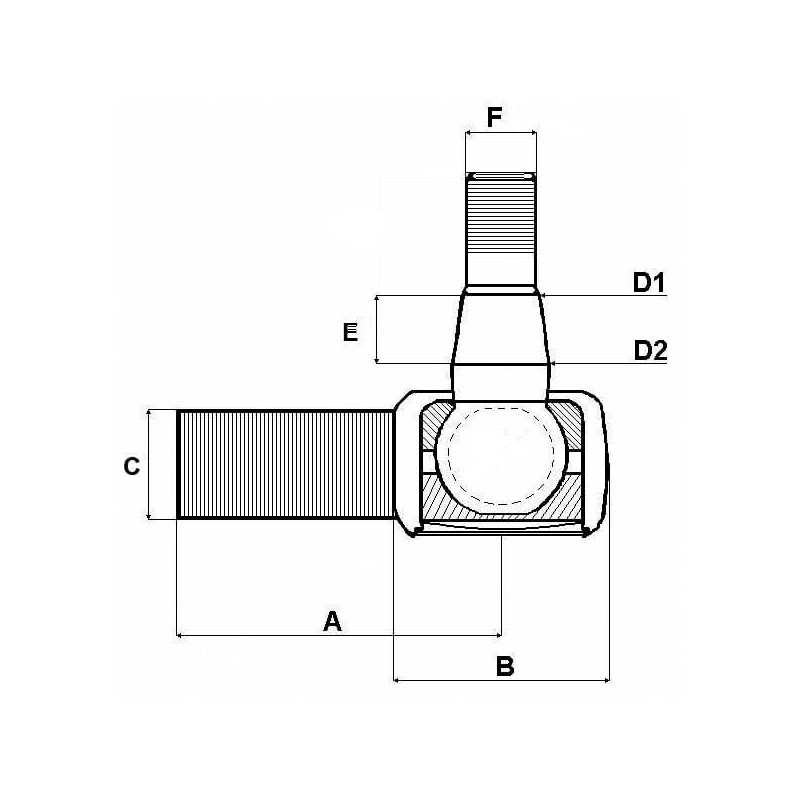

CThread diameter - rod sideM24
Thread pitch - rod side1.50 mm
D1Min. connection diameter19.7 mm
D2Max. connection diameter22.2 mm
EEnd cone length25 mm
FThread diameter - end side (wheel) (metric)M18
FPitch of thread - end side (wheel) (mm)1.50 mm
AWorking length106 mm
Total length108 mm
Thread length - rod side76 mm
Thread type - rod sideMetric
Thread direction - rod sideRight
Thread length - end side (wheel) (mm)24 mm
FThread type - end side (wheel)Metric
FThread direction - end side (wheel)Right
BHead width50 mm[
Case - IH (102),
Series 5000 Maxxum,
5120,
5130,
5140,
5150,
5220,
5230,
5240,
5250,
Series Farmall JX,
Farmall JX100,
Farmall JX110,
Farmall JX75,
Farmall JX80,
Farmall JX90,
Series JX,
JX80,
JX90,
JX95,
Series JX Maxxima,
JX75 Maxxima,
JX80 Maxxima,
JX85 Maxxima,
JX90 Maxxima,
JX95 Maxxima,
Series MXM Maxxum Pro,
MXM120 Maxxum Pro,
MXM130 Maxxum Pro,
MXM140 Maxxum Pro,
MXM155 Maxxum Pro,
Series MXU Maxxum,
MXU100 Maxxum,
MXU100 Maxxum Pro,
MXU100 Maxxum X,
MXU110 Maxxum,
MXU110 Maxxum Pro,
MXU110 Maxxum X,
MXU115 Maxxum,
MXU115 Maxxum Pro,
MXU115 Maxxum X,
MXU125 Maxxum,
MXU125 Maxxum Pro,
MXU130 Maxxum X,
MXU135 Maxxum,
MXU135 Maxxum Pro,
Series Maxxum,
Maxxum 100,
Maxxum 100X,
Maxxum 110,
Maxxum 110X,
Maxxum 115,
Maxxum 115X,
Maxxum 120,
Maxxum 125,
Maxxum 125X,
Maxxum 130,
Maxxum 140,
Maxxum 140X,
Series Maxxum CVT/CVX,
Maxxum 110CVT - Engine Tier 4A, 7/13-12/15,
Maxxum 110CVX - Engine Tier 4A, 7/13-12/15,
Maxxum 115CVT - Engine Tier 4B, >3/15,
Maxxum 115CVX - Engine Tier 4B, >7/16,
Maxxum 120CVT - Engine Tier 4A, 7/13-12/15,
Maxxum 120CVX - Engine Tier 4A, 7/13-12/15,
Maxxum 125CVT - Engine Tier 4B, >3/15,
Maxxum 125CVX - Engine Tier 4B, >7/16,
Maxxum 130CVT - Engine Tier 4A, 7/13-12/15,
Maxxum 130CVX - Engine Tier 4A, 7/13-12/15,
Maxxum 135CVT - Engine Tier 4B, >3/15,
Maxxum 135CVX - Engine Tier 4B, >7/16,
Maxxum 145CVT - Engine Tier 4B, >3/15,
Maxxum 145CVX - Engine Tier 4B, >7/16,
Series Maxxum EP Efficient Power Tier 4A,
Maxxum 110 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 115 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 120 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 125 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 130 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 140 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Series Maxxum EP MultiController Tier 4A,
Maxxum 110 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 115 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 120 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 125 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 130 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 140 MultiController - Engine Tier 4A 2/12-12/15,
Series Maxxum MultiController Tier 4B,
Maxxum 115 MultiController - Engine Tier 4B, >3/15,
Maxxum 125 MultiController - Engine Tier 4B, >3/15,
Maxxum 135 MultiController - Engine Tier 4B, >3/15,
Maxxum 145 MultiController - Engine Tier 4B, >3/15,
Maxxum 150 MultiController - Engine Tier 4B, >3/15,
Series Maxxum Tier 4B,
Maxxum 115 - Engine Tier 4B, >3/15,
Maxxum 125 - Engine Tier 4B, >3/15,
Maxxum 135 - Engine Tier 4B, >3/15,
Maxxum 145 - Engine Tier 4B, >3/15,
Maxxum 150 - Engine Tier 4B, >3/15,
Series Puma,
Puma 115,
Puma 125,
Puma 130,
Puma 140,
Puma 145,
Puma 150 - Engine Tier 4B, >5/15,
Puma 155,
Puma 165 - Engine Tier 4B, >5/15,
Series Puma CVT / CVX,
Puma 130CVX,
Puma 145CVX,
Puma 150CVT - Engine Tier 4B, >5/15,
Puma 150CVX - Engine TIER 4B (5/15-),
Puma 165CVT - Engine Tier 4B, >5/15,
Puma 165CVX - Engine TIER 4B (5/15-),
Puma 175CVX - Engine TIER 4B (5/15-),
DEUTZ-FAHR (59),
Series 7 Agrotron,
Agrotron 7200ST Sn.-> WSXAB20200LD50001,
Agrotron 7220ST Sn.-> WSXAB50200LD50001,
Series Agroprima,
Agroprima 6.06 Sn.-> 7636 / 7637,
Agroprima 6.16 Sn.-> 7638,
Series Agrostar TG,
Agrostar TG6.71 Sn.-> 7843,
Agrostar TG6.81 Sn.-> 7844,
Series Agrosun,
Agrosun 100 Sn.->D33S026AT1001,
Agrosun 120 Sn.->D33S186AT1001,
Agrosun 140 Sn.->D33S416AT1001,
Series Agrotrac,
110,
130,
150,
Agrotrac 115 ->D33S156WVT2E10001,
Agrotrac 125 ->D33S256WT1001,
Agrotrac 130 Sn.->D33S306WT1001,
Agrotrac 150 Sn.->D33S506WVT2E10001,
Agrotrac 150 Sn.->D33S506WVT2E20001,
Agrotrac 170 Sn.->D33S706WVT2E10001,
Series Agrotrac (Tier 3),
Agrotrac 610 Sn.-> ZKDY0402W0TD01001,
Agrotrac 620 Sn.-> ZKDY0802W0TD01001,
Series Agrotron L,
Agrotron L710 Sn.-> ZKDS8004W0LD10010,
Agrotron L710 Sn.-> ZKDU0702W0LD10010,
Agrotron L720 Sn.-> ZKDJ5904W0LD10010,
Agrotron L730 Sn.-> ZKDU1002W0LD10010,
Series Agrotron New,
Agrotron 195 Sn.->D40S006WVT1001,
Series D06,
10006,
13006,
6806,
7206,
7506,
8006,
9006,
Series D07,
6807,
7007,
7207,
7807,
Series D07C,
4507C,
4807C,
5207C,
6007C,
6207C,
6507C,
6807C,
7007C,
7207C,
7807C,
Series DX 10 -> 250,
DX80,
DX85,
DX86,
DX90,
DX92,
Series DX 2/4/5/6/7/8,
DX4.10,
DX4.30,
DX4.50,
DX4.70,
DX6.05,
DX6.10,
DX6.30,
DX6.50,
Fendt (12),
Series Farmer 100,
Farmer 102 - Sn.135/04601-99999,
Farmer 103 - Sn.138/11401-99999,
Farmer 104 - Sn.238/20701-99999,
Farmer 105 - Sn.258/10601-99999,
Farmer 108 - Sn.278/00001-99999,
Farmer 5S/106 - Sn.268/00001-99999,
Series Farmer 303-306 Turbomatik,
Farmer 303 Turbomatik - Sn.152/00001-99999,
Farmer 304 Turbomatik - Sn.158/00001-03500,
Farmer 305 Turbomatik - Sn.162/00001-07500,
Farmer 306 Turbomatik - Sn.168/00001-11500,
Farmer 306 Turbomatik - Sn.168/11501-13000,
Series Favorit 600,
Favorit 610 -Sn.281/00001-99999,
Fiat (24),
Series 66,
45/66 DT,
70/66 DT,
80/66 DT,
Series 76,
45/76,
70/76,
80/76,
Series 80,
1180,
1280,
1380,
1580,
1880,
Series 88,
70/88 DT,
80/88 DT,
Series 90,
100/90 DT,
110/90 DT,
115/90 DT,
130/90 DT,
140/90 DT,
160/90 DT,
180/90 DT,
70/90 DT,
80/90 DT,
85/90 DT,
90/90 DT,
Ford (2),
Series 4340 -> 8340,
8240,
8340,
Hürlimann (21),
Series H 345 -> H 496,
H496 Turbo,
Series H 5110 -> H6170,
H5116 Turbo,
H6136 Turbo,
H6170 Turbo,
Series H Elite,
H6115 Elite,
H6115 Elite XB,
H6135 Elite,
H6135 Elite XB,
Series H Master,
H6165 Master,
H6190 Master,
Master High Performance,
Series SX,
SX1200,
SX1350,
SX1500,
SX1600,
SX1800,
SX2000,
Series XT,
XT115,
XT130,
XT911,
XT913,
Lamborghini (25),
Series 956 - 100 -> 1706,
1106,
1306 Turbo,
1506 Turbo,
1706 Turbo,
956 - 100,
Series Champion,
Champion 120,
Champion 135,
Champion 150,
Champion 160,
Champion 180,
Champion 200,
Series Formula,
Formula 115,
Formula 135,
Series Premium,
Premium 1100,
Premium 1300,
Series R 5,
R5.115,
R5.130,
Series R 7,
R7.175S,
R7.190S,
R7.200,
R7.210,
Series Racing,
Racing 150,
Racing 165,
Racing 190,
Racing High Performance,
New Holland (155),
Series 40,
8240,
8340,
Series 60,
8160,
8260,
8360,
8560,
Series M,
M100,
M115,
M135,
M160,
Series T 4.XXX F / LP,
T4.100F Low T4A L/Cab (03/16 -12/17),
T4.100F T4A W/Cab (9/17 -),
Series T 6000,
T6010 Delta,
T6010 Plus,
T6020 Delta,
T6020 Elite,
T6020 Plus,
T6030 Delta,
T6030 Plus,
T6030 Power / Range Command,
T6040 Elite,
T6050 Delta,
T6050 Plus,
T6050 Power / Range Command,
T6060 Elite,
T6070 Plus,
T6070 Power / Range Command,
T6080 Power / Range Command,
T6090 Power / Range Command,
Series T4000 / F / N / V,
T4030F Upgrade SpeciaL(2/12 - ),
T4030N,
T4040F Upgrade SpeciaL(2/12 -),
T4040N,
T4050F Upgrade SpeciaL(2/12 -),
T4050N,
T4060F Upgrade SpeciaL(2/12 -),
Series T5.XXX Dual Command T4A,
T5.105 Dual Command T4A,
T5.85 Dual Command T4A,
T5.95 Dual Command T4A,
Series T6 - Tier 4A / 4B,
T6.120,
T6.125 - Engine Tier 4B, 5802331704 - 47917782 APH MR 85KW,
T6.140,
T6.145 - Engine Tier 4B, 5802331702 - 47917770 APH MR 96KW,
T6.150,
T6.155,
T6.155 - Engine Tier 4B, 5802331698 - 47917764 APH MR 103KW,
T6.160,
T6.165,
T6.165 - Engine Tier 4B, 5802331694 - 47917762 APH MR 114KW,
T6.175,
T6.175 - Engine Tier 4B, 5802331689 - 47917759 APH MR 118KW,
T6.180 - Engine Tier 4B, 5802317350 - 47917751 APH MR 121KW,
Series T6.XXX Auto Command Tier 4B / Stage V,
T6.140 - Engine TIER 4B (7/13-12/15),
T6.145 - Engine TIER 4B (3/15-),
T6.145 - Engine TIER 4B (7/13-),
T6.150 - Engine TIER 4B (7/13-12/15),
T6.155 - Engine TIER 4B (3/15-),
T6.155 - Engine TIER 4B (7/13-),
T6.160 - Engine TIER 4B (7/13-12/15),
T6.165 - Engine TIER 4B (3/15-),
T6.165 - Engine TIER 4B (7/13-),
T6.175 - Engine TIER 4B (3/15-),
T6.175 - Engine TIER 4B (7/13-),
Series T7 PowerCommand Tier 4A,
T7.170 PowerCommand,
T7.185 PowerCommand,
T7.200 PowerCommand,
T7.210 PowerCommand,
Series T7.XXX- AutoCommand Tier 4A / 4B / Stage V,
T7.170 AutoCommand,
T7.175 - Engine Tier 4B,
T7.185 AutoCommand,
T7.190 - Engine Tier 4B,
T7.200 AutoCommand,
T7.210 - Engine Tier 4B,
T7.210 AutoCommand,
T7.225 - Engine Tier 4B,
Series TD 5000,
TD5010,
TD5020,
TD5030,
TD5040,
TD5050,
Series TD-5,
TD5.100 - Engine Tier 3A, (11/12),
TD5.105,
TD5.105 - Engine Tier 4A, (10/14),
TD5.110 - Engine Tier 3A, (11/12),
TD5.115,
TD5.115 - Engine Tier 4A, (10/14),
TD5.65,
TD5.75,
TD5.80 - Engine Tier 3A, (11/12),
TD5.85,
TD5.85 - Engine Tier 4A, (10/14),
TD5.90 - Engine Tier 3A, (11/12),
TD5.95,
TD5.95 - Engine Tier 4A, (10/14),
Series TD-D,
TD55D,
TD60D,
TD60DPlus,
TD65D,
TD70D,
TD70DPlus,
TD75D,
TD80D,
TD80DPlus,
TD85D,
TD90D,
TD90DPlus,
TD95D,
TD95DPlus,
Series TM,
TM115,
TM120,
TM125,
TM130,
TM135,
TM140,
TM150,
TM155,
TM165,
TM175,
TM190,
Series TN-F / TN-FA,
TN65F,
TN70F,
TN75F,
TN75FA,
TN80F,
TN85FA,
TN90F,
TN95F,
TN95FA,
Series TN-N / TN-NA,
TN65N,
TN70NA,
TN75N,
TN75NA,
TN95NA,
Series TN-S / TN-SA,
TN55S,
TN60SA,
TN65S,
TN70S,
TN70SA,
TN75S,
TN75SA,
TN85SA,
Series TS-A / TS-A Deluxe,
TS100A,
TS100A Delta,
TS100A Plus,
TS110A,
TS110A Delta,
TS110A Plus,
TS115A,
TS115A Delta,
TS115A Plus,
TS125A,
TS125A Plus,
TS130A Delta,
TS135A,
TS135A Plus,
Same (36),
Series Antares,
Antares 110,
Antares 130,
Antares II 110,
Antares II 130,
Series Audax,
Audax 220,
Series Galaxy,
Galaxy 170,
Series Iron,
Iron 175S,
Iron 190S,
Iron 200,
Iron 210,
Series Iron³,
Iron³ 190DCR Sn.>ZKDS7802W0LS10010,
Iron³ 190DCR Sn.>ZKDU0502W0LS10010,
Iron³ 210,
Iron³ 210DCR Sn.>10010,
Iron³ 220DCR,
Series Laser,
Laser 100,
Laser 110,
Laser 130,
Laser 150,
Laser 85,
Laser 90,
Series Rubin,
Rubin 120,
Rubin 135,
Rubin 150,
Rubin 160,
Rubin 180,
Rubin 200,
Series Silver,
Silver 110,
Silver 115,
Silver 130,
Series Titan,
Supertitan,
Titan 145,
Titan 150,
Titan 160,
Titan 165,
Titan 190,
Steyr (34),
Series 6000 CVT,
6130CVT,
Series CVT 05-2015,
6150 Tier 4B - Engine >05/2015,
6165 Tier 4B - Engine >05/2015,
6175 Tier 4B - Engine >05/2015,
Series ET Profi 07-2016,
4115 Tier 4B - Engine >07/2016,
4125 Tier 4B - Engine >07/2016,
4135 Tier 4B - Engine >07/2016,
4145 Tier 4B - Engine >07/2016,
6145 Tier 4B - Engine >07/2016,
Series ET Profi Classic 07-16,
4115 Tier 4B - Engine >07/2016,
4125 Tier 4B - Engine >07/2016,
4135 Tier 4B - Engine >07/2016,
4145 Tier 4B - Engine >07/2016,
6145 Tier 4B - Engine >07/2016,
Series Profi,
4100 Profi,
4110 Profi,
4110 Tier 4 (7/13),
4115 Profi,
4120 Profi,
4120 Tier 4 (7/13),
4130 Profi,
4130 Tier 4 (7/13),
6115 Profi,
6125 Profi,
6135 Profi,
6140 Profi,
Series Profi Classic,
4110 Tier 4 - Engine 2/12,
6125 Tier 4 - Engine 2/12,
6140 Tier 4 - Engine 2/12,
Series Profi Ecotech,
4110 Tier 4 - Engine >2/2012,
4120 Tier 4 - Engine >2/2012,
4130 Tier 4 - Engine >2/2012,
6125 Tier 4 - Engine >2/2012,
6140 Tier 4 - Engine >2/2012
