Part number LA10420
EAN8719493033458
Unit Each

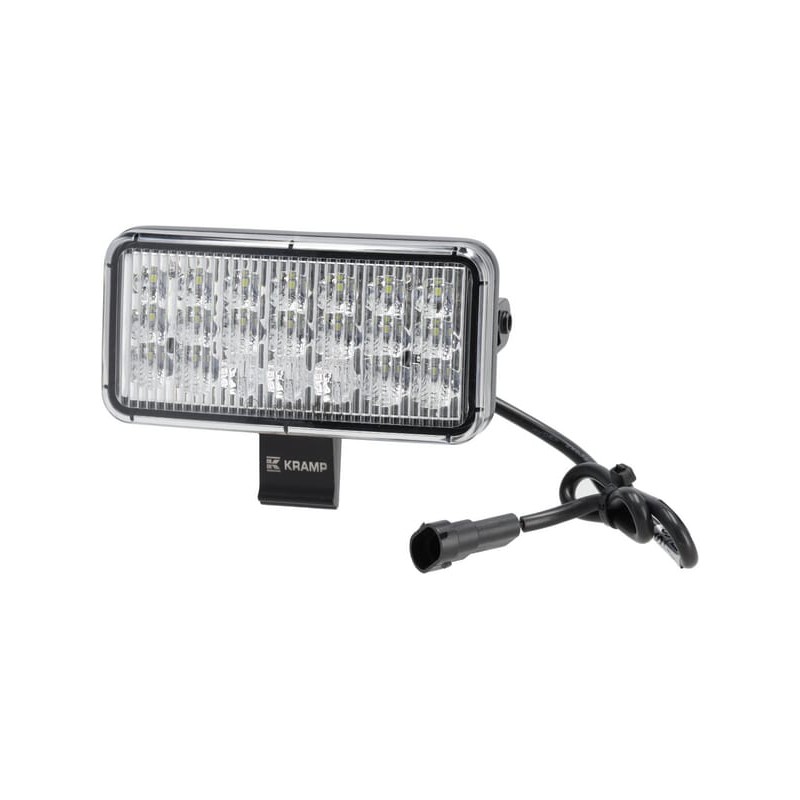

Long descriptionThis work lamp illuminates your workspace to help improve concentration. LED lighting allows powerful machinery to be operated with great accuracy in darkness - an investment that really pays.
ProsExtensive ground illumination for use in the field Optimal ambient lighting
Product detailsLED lamps are exposed to dirt, fertilisers, road salt, acids and more. For best performance and long life, the lens and cooling fins should be cleaned regularly Meets latest LED technology Minimum 30.000 hrs of lifetime Retail friendly packaging 1 year warranty
ApplicationUniversal Off road Tractor Construction vehicle Truck
Beam angle60 °
Bulbs technologyLED
Cable length0.5 m
CISPR standard25 Class 3
Colour temperature6000 K
ECE standardR10
FunctionWork light

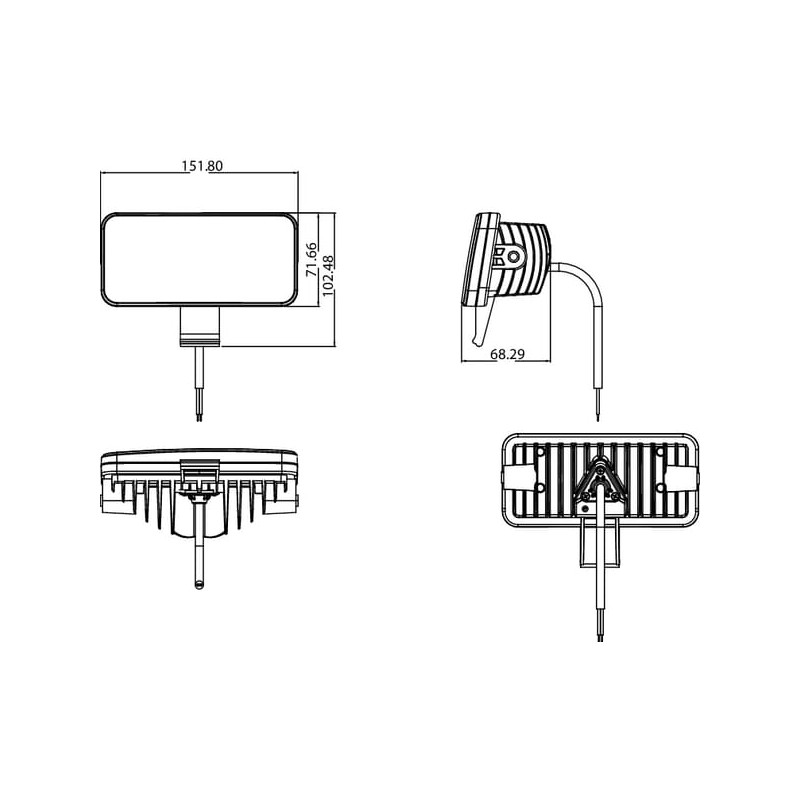

Height102.5 mm
Housing materialAluminium
Insulation class69K
Length (depth)68.3 mm
Lens materialPolycarbonate
Light colourWhite
Light typeFlood
Luminous flux4100 lm
Max working temperature50 °C
Min working temperature-40 °C
Mounting holes diameter5.2 mm
Mounting positionTop Front
Mounting thread diameterM6
Mounting typeBolt on
Nominal voltage12 V24 V
Nominal voltage range10-30 V
Number of LEDs18
Plug typeH11
Power54 W
ShapeRectangular
Suitable for machine/vehicle brandCase - IH New Holland Steyr
Weight0.5 kg
Width151.8 mm
Content in sale unit1 pcs[
Case - IH (53),
Series Maxxum,
Maxxum 100,
Maxxum 110,
Maxxum 115,
Maxxum 120,
Maxxum 125,
Maxxum 130,
Maxxum 140,
Series Maxxum CVT/CVX,
Maxxum 110CVT - Engine Tier 4A, 7/13-12/15,
Maxxum 110CVX - Engine Tier 4A, 7/13-12/15,
Maxxum 120CVT - Engine Tier 4A, 7/13-12/15,
Maxxum 120CVX - Engine Tier 4A, 7/13-12/15,
Maxxum 130CVT - Engine Tier 4A, 7/13-12/15,
Maxxum 130CVX - Engine Tier 4A, 7/13-12/15,
Series Maxxum EP Efficient Power Tier 4A,
Maxxum 110 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 115 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 120 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 125 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 130 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 140 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Series Maxxum EP MultiController Tier 4A,
Maxxum 110 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 115 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 120 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 125 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 130 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 140 MultiController - Engine Tier 4A 2/12-12/15,
Series Puma,
Puma 115,
Puma 125,
Puma 130,
Puma 140,
Puma 145,
Puma 150 - Engine Tier 4B, >5/15,
Puma 155,
Puma 160,
Puma 165,
Puma 165 - Engine Tier 4B, >5/15,
Puma 170,
Puma 180,
Puma 185,
Puma 185 - Engine Tier 4B, >5/15,
Puma 195,
Puma 200,
Puma 200 - Engine Tier 4B, >5/15,
Puma 210,
Puma 215,
Puma 220 - Engine Tier 4B, >5/15,
Series Puma CVT / CVX,
Puma 130CVX,
Puma 145CVX,
Puma 160CVX,
Puma 170CVX,
Puma 185CVX,
Puma 200CVX,
Puma 215CVX,
Puma 230CVX,
New Holland (78),
Series T 6000,
T6010 Delta,
T6010 Plus,
T6020 Delta,
T6020 Elite,
T6020 Plus,
T6030 Delta,
T6030 Elite,
T6030 PC,
T6030 Plus,
T6030 Power / Range Command,
T6030 RC,
T6040 Elite,
T6050 Delta,
T6050 Elite,
T6050 PC,
T6050 Plus,
T6050 Power / Range Command,
T6050 RC,
T6060 Elite,
T6070 Elite,
T6070 PC,
T6070 Plus,
T6070 Power / Range Command,
T6070 RC,
T6080 PC,
T6080 Power / Range Command,
T6080 RC,
T6090 PC,
T6090 Power / Range Command,
T6090 RC,
T6095 RC (7/18-),
Series T 7000,
T7030,
T7030 AC,
T7030 PC,
T7040,
T7040 AC,
T7040 PC,
T7050,
T7050 AC,
T7050 PC,
T7060,
T7060 AC,
T7060 PC,
T7070,
T7070 AC,
Series T 7500,
T7510,
T7520,
T7530,
T7540,
T7550,
Series T 8000,
T8010,
T8020,
T8030,
T8040,
T8050,
Series TG,
TG210,
TG230,
TG255,
TG285,
Series TS-A / TS-A Deluxe,
TS100A,
TS100A Delta,
TS100A Deluxe,
TS100A Plus,
TS110A,
TS110A Delta,
TS110A Deluxe,
TS110A Plus,
TS115A,
TS115A Delta,
TS115A Deluxe,
TS115A Plus,
TS125A,
TS125A Deluxe,
TS125A Plus,
TS130A Delta,
TS135A,
TS135A Deluxe,
TS135A Plus,
Steyr (3),
Series Profi,
4110 Tier 4 (7/13),
4120 Tier 4 (7/13),
4130 Tier 4 (7/13)
