Part number TCVNNE357023022
EAN8719493237535
Unit Each
ProsEasy reading of the setting Top link cylinder maintains its position

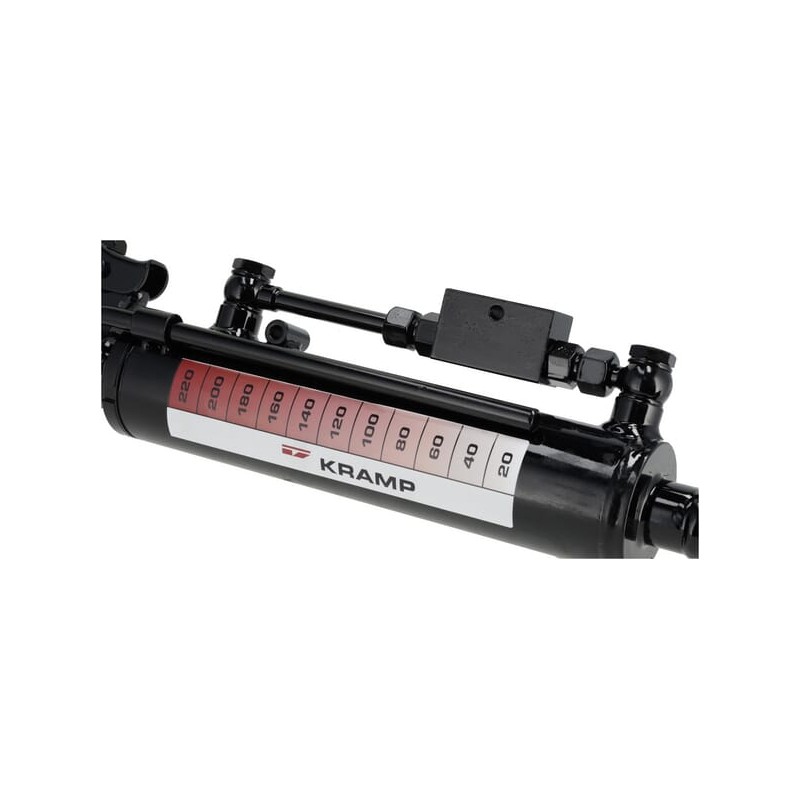

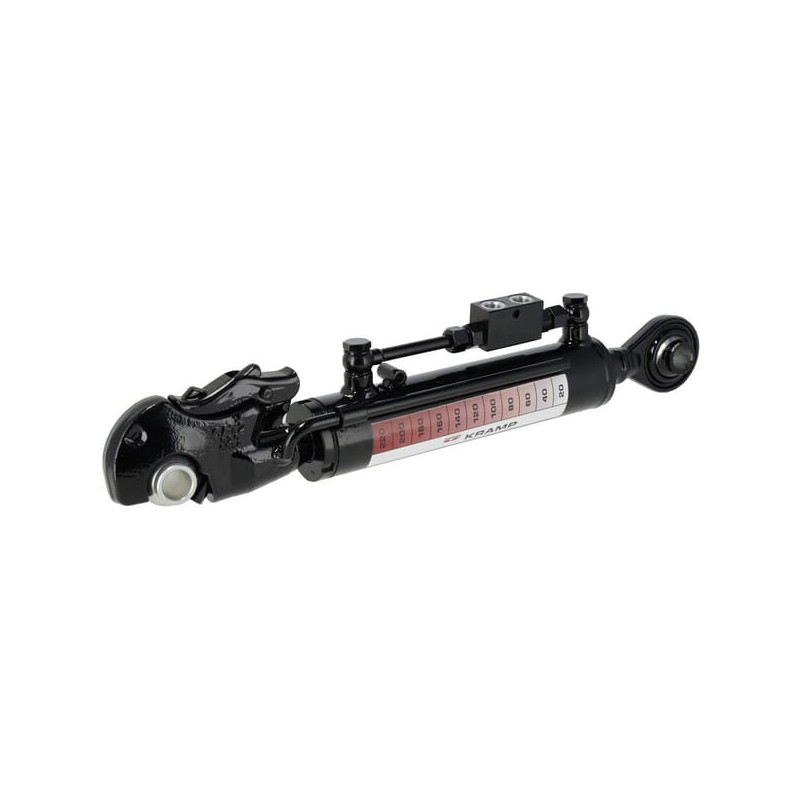

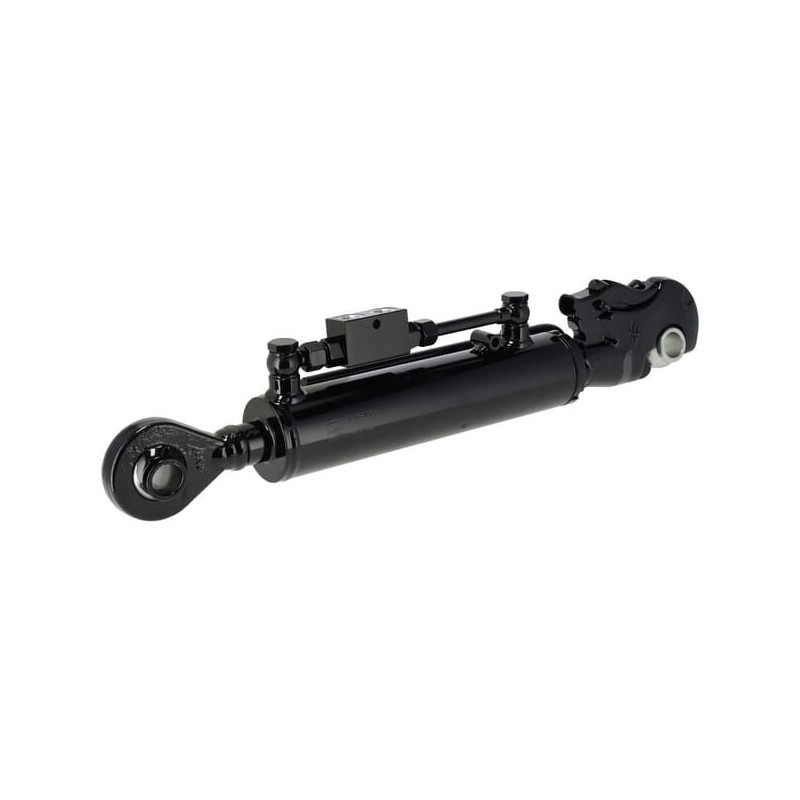

Product details-- Cat. 1, 2 and 3 three-point link With length indicator Type TCVNN is equipped with a controlled check valve Type TCVNNE is equipped with a controlled check valve and an extended end Dangtelis Maximum radial load: 10% of the axial load Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Purity of medium: ISO 4406 22/20/17 or NAS 9
IncludesCylinder Operated check valve Ball Actuation cable
Mounting type - rod connectionHook
Mounting type - cylinder connectionBearing
Top link category - rod connection2
Top link category - cylinder connection2

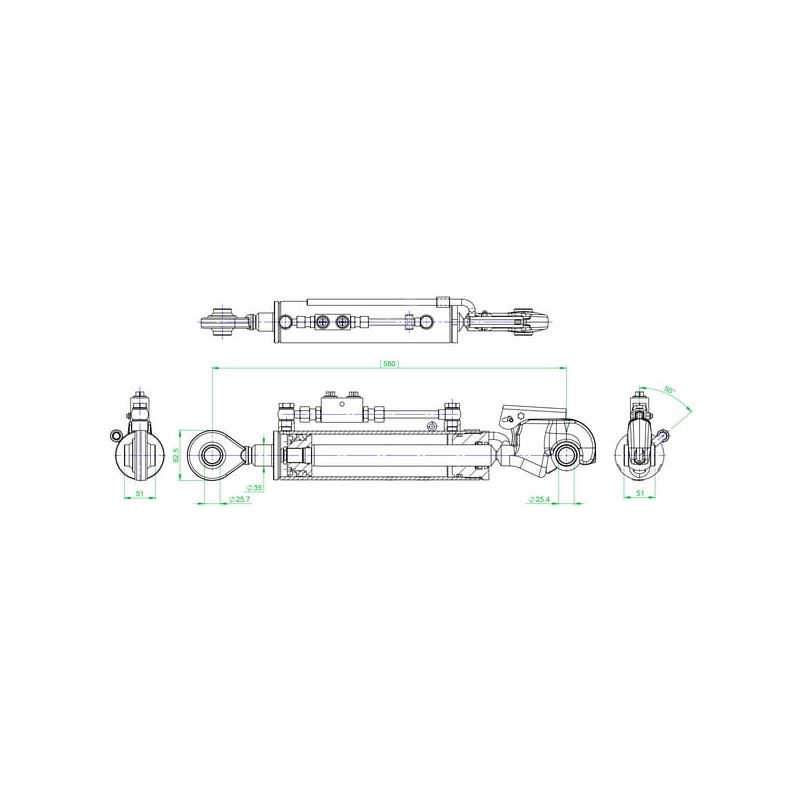

Min. length580 mm
AMax. length810 mm
Stroke230 mm
Rod diameter35 mm
Cylinder bore diameter70 mm
EOutside diameter80 mm
Mounting hole diameter - rod connection25.7 mm
Mounting hole diameter - cylinder connection25.7 mm
Mounting thread type - cylinder connectionBSP
CMounting thread diameter - cylinder connection3/8 Inch
Mounting thread type - rod connectionBSP
Mounting thread diameter - rod connection3/8 Inch
DOil connections distance271.5 mm
Rod materialSteel 20MnV6
Rod surface treatmentChromated
Cylinder materialSteel ST52
Nominal pressure200 BAR
Max. working pressure250 BAR
Max. push Dangtelisacity at 200 bar7.7 t
Max. pull Dangtelisacity at 200 bar2.5 t
Max. piston speed0.1 m/s
ColourBlack
RAL colour code9005[
Case - IH (21),
Series JX,
JX70,
JX80,
JX85,
JX90,
JX95,
Series Quantum C/F/N/V,
Quantum 100F,
Quantum 100N,
Quantum 100V,
Quantum 110F,
Quantum 110N,
Quantum 110V,
Quantum 65C,
Quantum 75C,
Quantum 80F,
Quantum 80N,
Quantum 80V,
Quantum 85C,
Quantum 90F,
Quantum 90N,
Quantum 90V,
Quantum 95C,
Claas (9),
Series Elios,
Elios 210,
Elios 210 Stage IIIb Sn.A4800001-A4809999,
Elios 210 Stage V,
Elios 220,
Elios 220 Stage IIIb Sn.A4800001-A4809999,
Elios 230,
Elios 230 Stage IIIb Sn.A4800001-A4809999,
Elios 240,
Elios 240 Stage IIIb Sn.A4800001-A4809999,
DEUTZ-FAHR (24),
Series Agrofarm T-TB (Tier 3),
415TB,
425TB,
Agrofarm 410T Ecoline Sn.-> ZKDAA402W0TD30001,
Agrofarm 410T Ecoline Sn.-> ZKDU5201W0TD10001,
Agrofarm 410T Sn.-> ZKDP9602W0TD01001,
Agrofarm 410T Sn.-> ZKDR0502W0TD05001,
Agrofarm 410TB Sn.-> ZKDR1302W0TD01001,
Agrofarm 410TB Sn.-> ZKDR2102W0TD05001,
Agrofarm 415TB Sn.-> ZKDCR30200TD10001,
Agrofarm 415TB Sn.-> ZKDCS10200TD10001,
Agrofarm 420T Ecoline Sn.-> ZKDAA602W0TD30001,
Agrofarm 420T Ecoline Sn.-> ZKDU5601W0TD10001,
Agrofarm 420T Sn.-> ZKDR0102W0TD01001,
Agrofarm 420T Sn.-> ZKDR0902W0TD05001,
Agrofarm 420TB Sn.-> ZKDR1702W0TD01001,
Agrofarm 420TB Sn.-> ZKDR2502W0TD05001,
Agrofarm 425TB Sn.-> ZKDCR70200TD10001,
Agrofarm 425TB Sn.-> ZKDCS50200TD10001,
Series Agrolux,
Agrolux 77 Sn.->D13P714WVT1001,
Agrolux 77LP Sn.->D13P714WVTB1001,
Agrolux 87 Sn.->D13P814WVT1001,
Agrolux 87LP Sn.->D13P814WVTB1001,
Agrolux 97 Sn.->D13P914WVT1001,
Agrolux 97LP Sn.->D13P914WVTB1001,
Hürlimann (3),
Series XM,
XM100,
XM110,
XM120,
Lamborghini (9),
Series R 3,
R3.75 T,
R3.75TB,
R3.85T,
R3.85TB,
R3.95 T,
R3.95TB,
Series R 3 Evo,
R3 Evo 100 Target,
R3 Evo 85,
R3 Evo 85 Target,
Landini (16),
Series Rex Top Restyling,
120F/GE/GT,
Series Technofarm,
Technofarm 70,
Technofarm 75,
Technofarm 80,
Technofarm 85,
Technofarm Europa Tier2,
70,
75,
80,
Technofarm Europa Tier3,
70,
75,
80,
Technofarm Mondial Tier2,
60,
70,
75,
80,
85,
Massey Ferguson (6),
Series 3600,
3625,
3625 Tier 3,
3635,
3635 Tier 3,
3645,
3645 Tier 3,
McCormick (7),
Series X50,
X50.20,
X50.30,
X50.40,
X50.50,
Series X50M,
X50.20M,
X50.30M,
X50.40M,
New Holland (22),
Series T4.XXX N / V,
T4.95N,
Series T4000 / F / N / V,
T4020,
T4030,
T4040,
T4050,
Series TD 4000F,
TD4020F,
TD4030F,
TD4040F,
Series TN-D / TN-DA,
TN60DA,
TN60DA Plus,
TN65D,
TN70D,
TN70DA,
TN70DA Plus,
TN75D,
TN75DA,
Series TN-F / TN-FA,
TN65F,
TN75F,
TN90F,
Series TN-S / TN-SA,
TN60SA,
TN70SA,
TN75SA,
Same (20),
Series Explorer,
Explorer 100,
Explorer 100 Sn.>ZKDCX00200TS10001,
Explorer 100 Sn.>ZKDCY20200TS10001,
Explorer 100 Sn.>ZKDR7202W0TS40001,
Explorer 70,
Explorer 75,
Explorer 75 Classic,
Explorer 80,
Explorer 80 Sn.>ZKDS6802W0TS30001,
Explorer 85,
Explorer 85 Sn.>EX85E1WVT35001,
Explorer 90,
Explorer 90 Sn.>ZKDCW60200TS10001,
Explorer 90 Sn.>ZKDCX80200TS10001,
Explorer 90 Sn.>ZKDS6902W0TS30001,
Explorer 90 Turbo,
Explorer 95,
Explorer 95 Classic,
Explorer 95 Sn.>EX95E1WVT35001,
Explorer 95 Sn.>S12S914WVT1001,
Steyr (4),
Series 360 -> 495 Compact,
370 Compact,
375 Compact,
485 Compact,
495 Compact
