Part number LA10429
EAN8719493033434
Unit Each

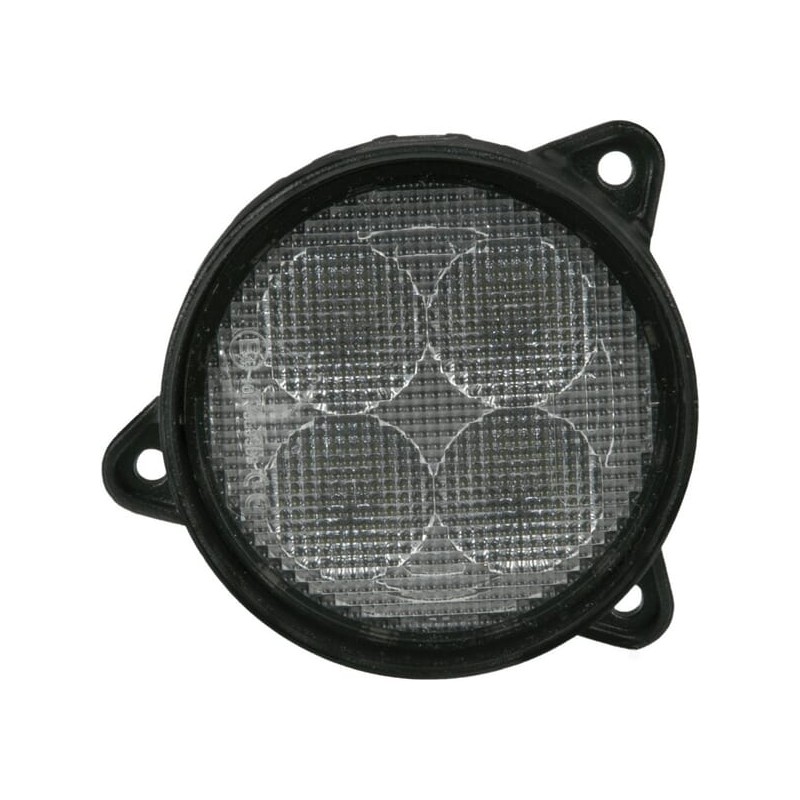

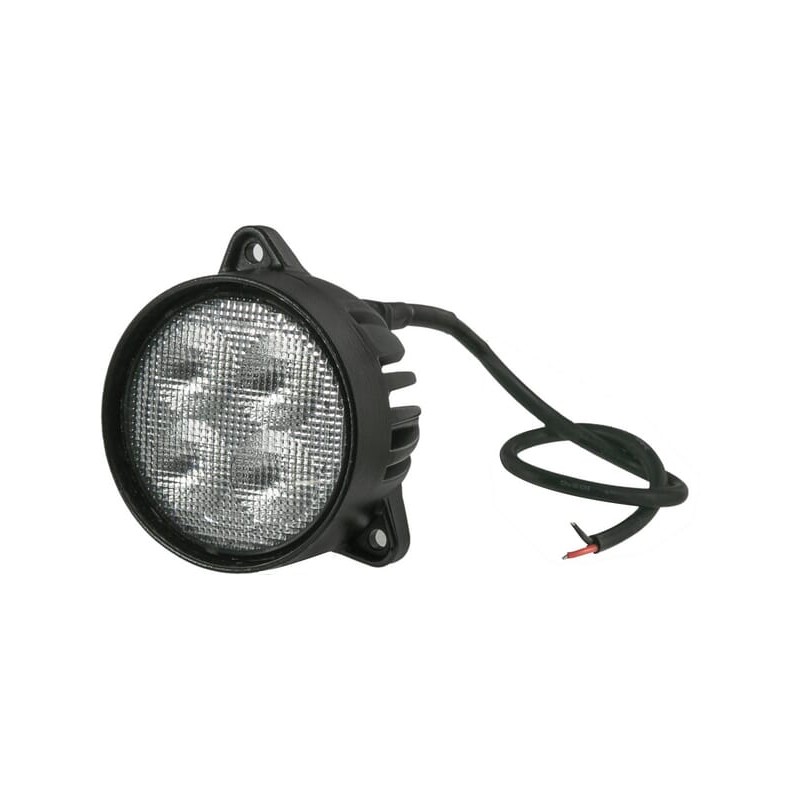

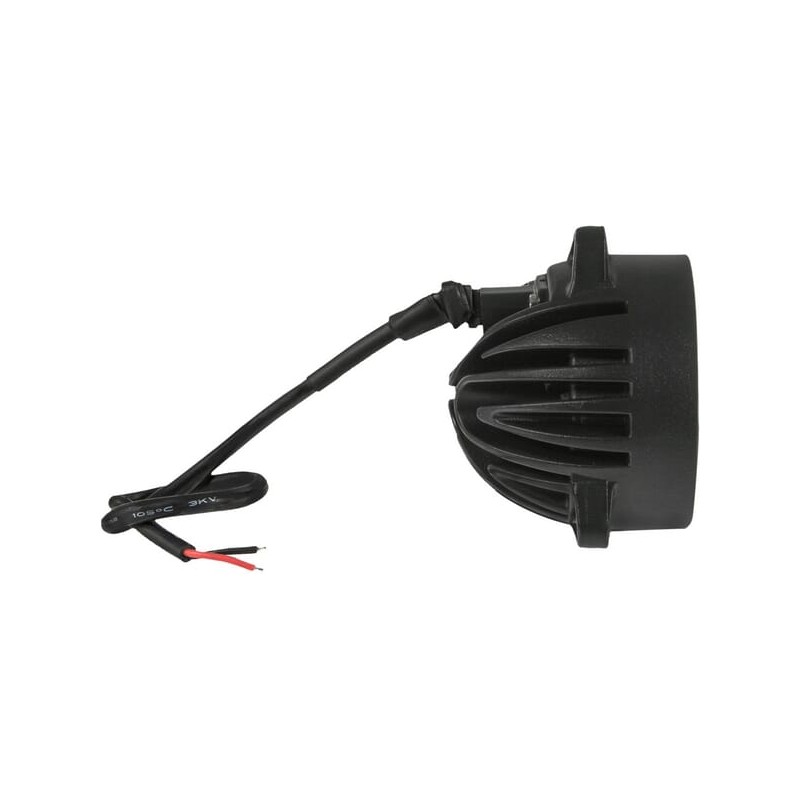

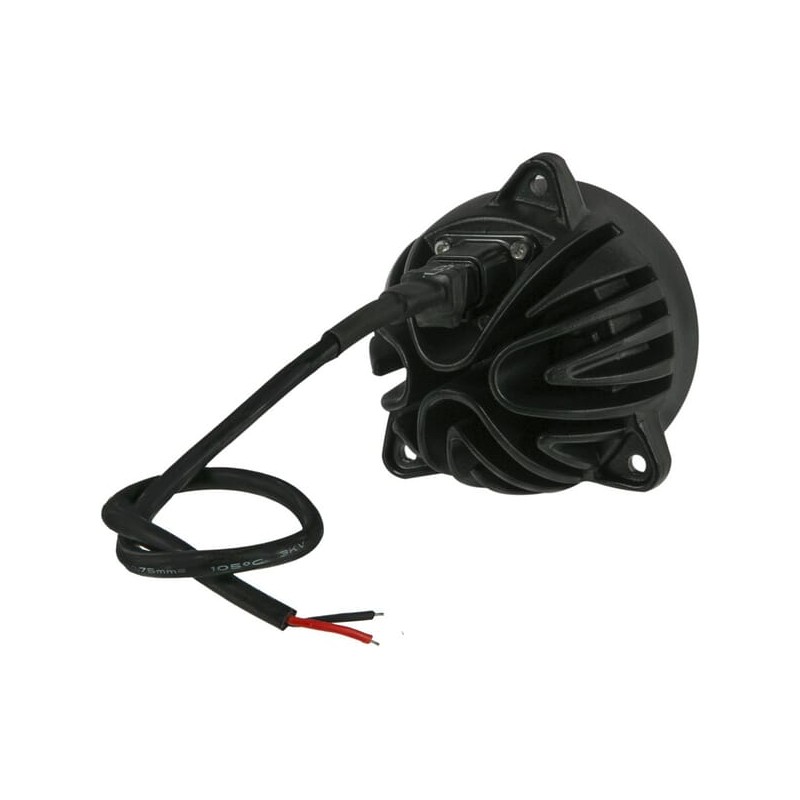

Long descriptionThis work lamp illuminates your view to help improve concentration. LED lighting allows powerful machinery to be operated with great accuracy in the dark – an investment that really pays.
ProsExtensive ground illumination for use in the field Optimal ambient lighting
Product detailsLED lamps are exposed to dirt, fertilisers, road salt, acids and more. For best performance and long life, the lens and cooling fins should be cleaned regularly Meets latest LED technology Minimum 30.000 hrs of lifetime Retail friendly packaging 1 year warranty
ApplicationUniversal Off road Tractor Construction vehicle Truck
Beam angle60 °
Bulbs technologyLED
Cable length0.2 m
CISPR standard25 Class 4
Colour temperature6000 K
Diameter83.5 mm
ECE standardR10
FunctionWork light
Height90 mm
Housing materialAluminium
Insulation class69K
Length (depth)72 mm
Lens materialPolycarbonate
Light colourWhite
Light typeFlood
Luminous flux4800 lm
Max working temperature50 °C
Min working temperature-40 °C
Mounting holes diameter2.6 mm
Mounting positionTop Front
Mounting thread diameterM3
Mounting typeBuilt-in installation
Nominal voltage12 V24 V
Nominal voltage range10-30 V
Number of LEDs4
Plug typeDeutsch 2-pin H11
Power40 W
ShapeRound
Suitable for machine/vehicle brandCase - IH John Deere Massey Ferguson New Holland Steyr
Suitable for machine/vehicle modelT7000 from 2015 up to 2017
Suitable for machine/vehicle seriesT7 series from 2015 up to 2017
Weight0.15 kg
Width83.5 mm
Content in sale unit1 pcs
Additional infoLA10428 fits T7000 and T7 up to 2015 and LA10429 fits T7000 and T7 models from 2015 up to 2017
Extra infoLA10429 = LA10428 without plastic housing ( easy to disassemble)[
Case - IH (60),
Series Magnum 250-380,
Magnum 250CVT - Engine Tier 2CVT (ROW), >4/14,
Magnum 250CVT - Engine Tier 4BCVT (EU), >4/14,
Magnum 250PST - Engine Tier 2PST (ROW), >4/14,
Magnum 250PST - Engine Tier 4BPST (EU), >4/14,
Magnum 280CVT - Engine Tier 2CVT (ROW), >4/14,
Magnum 280CVT - Engine Tier 4BCVT (EU), >4/14,
Magnum 280PST - Engine Tier 2PST (ROW), >4/14,
Magnum 280PST - Engine Tier 4BPST (EU), >4/14,
Magnum 310CVT - Engine Tier 2CVT (ROW), >4/14,
Magnum 310CVT - Engine Tier 4BCVT (EU), >4/14,
Magnum 310PST - Engine Tier 2PST (ROW), >4/14,
Magnum 310PST - Engine Tier 4BPST (EU), >4/14,
Magnum 340 - Engine Tier 2, 3/11-3/14,
Magnum 340CVT - Engine Tier 2, 2/13-12/14,
Magnum 340CVT - Engine Tier 2CVT (ROW), >4/14,
Magnum 340CVT - Engine Tier 4A, (EU) 2/13-12/14,
Magnum 340CVT - Engine Tier 4BCVT (EU), >4/14,
Magnum 340PST - Engine Tier 2PST (ROW), >4/14,
Magnum 340PST - Engine Tier 4A, (EU) 3/11-12/14,
Magnum 340PST - Engine Tier 4BPST (EU), >4/14,
Magnum 380CVT - Engine Tier 2CVT (ROW), >4/14,
Magnum 380CVT - Engine Tier 4BCVT (EU), >4/14,
Series Magnum 250-380, Tier 4B,
Magnum 250 CVT - 4B CVT 01/18-10/19,
Magnum 250 PST - 4B PST 01/18-10/19,
Magnum 280 CVT - 4B CVT 01/18-9/19,
Magnum 280 PST - 4B PST 01/18-,
Magnum 310 CVT - 4B CVT 01/18-,
Magnum 310 PST - 4B PST 01/18-,
Magnum 340 CVT - 4B CVT 01/18-,
Magnum 340 PST - 4B PST 01/18-,
Magnum 380 CVT - 4B CVT 01/18-,
Series Magnum RowTrac,
Magnum 310 RowTrac CVT - Engine Tier 2, >10/14,
Magnum 310 RowTrac CVT - Engine Tier 4B (EU), >8/15,
Magnum 310 RowTracPST - Engine Tier 2, >10/14,
Magnum 310 RowTracPST - Engine Tier 4B (EU), >8/15,
Magnum 340 RowTrac CVT - Engine Tier 2, >10/14,
Magnum 340 RowTrac CVT - Engine Tier 4B (EU), >8/15,
Magnum 340 RowTrac PST - Engine Tier 2, >10/14,
Magnum 340 RowTracPST - Engine Tier 4B (EU), >8/15,
Magnum 380 RowTrac CVT - Engine Tier 2, >10/14,
Magnum 380 RowTrac CVT - Engine Tier 4B (EU), >8/15,
Series Puma CVX , Stage V,
Puma 185 CVXDrive Tractor 09/19-,
Puma 200 CVXDrive Tractor 09/19-,
Puma 220 CVXDrive Tractor 09/19-,
Series Puma Stage V,
Puma 185 PowerDrive Tractor 09/19-,
Puma 200 PowerDrive Tractor 09/19-,
Puma 220 PowerDrive Tractor 09/19-,
Series QuadTrac,
QuadTrac 370 - Engine Tier 4B, >4/14,
QuadTrac 400 RowTrac - Engine Tier 2, >3/14,
QuadTrac 450 RowTrac - Engine Tier 2, >3/14,
QuadTrac 500 RowTrac - Engine Tier 2, >3/14,
Series Steiger,
Steiger 370 - Engine Tier 4B, (APAC) >4/14, (EU) >10/14-9/16,
Steiger 420 - Engine Tier 4B (EU), >9/14-4/15,
Steiger 470 - Engine Tier 4B (EU), >10/14,
Series Steiger Stage V,
420 CVT 08/20-,
420 PST 08/20-,
470 CVT 08/20-,
470 PST 08/20- Steiger Stage V,
500 CVT 08/20- Steiger Stage V,
500 PST 08/20- Steiger Stage V,
DEUTZ-FAHR (60),
Series 5DF (Farmotion Tier 4I),
5080DF Sn.-> ZKDBJ60200TD10001,
5080DF Sn.-> ZKDBL20200TD10001,
5090.4DF Sn.-> ZKDBK00200TD10001,
5090.4DF Sn.-> ZKDBL60200TD10001,
5090DF Sn.-> ZKDDX70200TD10001,
5090DF Sn.-> ZKDDY50200TD10001,
5100DF Sn.-> ZKDDY10200TD10001,
5100DF Sn.-> ZKDDY90200TD10001,
5105DF Sn.-> ZKDBK40200TD10001,
5105DF Sn.-> ZKDBM00200TD10001,
5115DF Sn.-> ZKDBK80200TD10001,
5115DFSn.-> ZKDBM40200TD10001,
Series 5DS (Farmotion Tier 4I),
5080DS Sn.-> ZKDBM80200TD10001,
5090.4DS Sn.-> ZKDBN60200TD10001,
5090.4DS Sn.-> ZKDBR90200TD10001,
5090DS Sn.-> ZKDDZ30200TD10001,
5090DS Sn.-> ZKDDZ70200TD10001,
5100DS Sn.-> ZKDBN20200TD10001,
5100DS Sn.-> ZKDBR50200TD10001,
5105DS Sn.-> ZKDBP00200TD10001,
5105DS Sn.-> ZKDBS30200TD10001,
5115DS Sn.-> ZKDBP40200TD10001,
Series 5DV (Farmotion Tier 4I),
5080DV Sn.-> ZKDBT10200TD10001,
5080DV Sn.-> ZKDBV10200TD10001,
5090.4DV Sn.-> ZKDBT90200TD10001,
5090.4DV Sn.-> ZKDBV90200TD10001,
5090DV Sn.-> ZKDEA10200TD10001,
5090DV Sn.-> ZKDEA50200TD10001,
5100DV Sn.-> ZKDBT50200TD10001,
5100DV Sn.-> ZKDBV50200TD10001,
5105DV Sn.-> ZKDBU30200TD10001,
5105DV Sn.-> ZKDBW30200TD10001,
5115DV Sn.-> ZKDBU70200TD10001,
5115DV Sn.-> ZKDBW70200TD10001,
Series Agroplus F (Tier 3),
Agroplus 320F Sn.-> ZKDP3602W0TD01001 / 10001,
Agroplus 410F Sn.-> ZKDP2802W0TD05001 / 15001,
Agroplus 410F Sn.-> ZKDP4002W0TD01001 / 10001,
Agroplus 420F Sn.-> ZKDP3202W0TD05001 / 15001,
Agroplus 420F Sn.-> ZKDP4402W0TD01001 / 10001,
Agroplus 430F Sn.-> ZKDU7702W0TD10001,
Agroplus 430F Sn.-> ZKDU8102W0TD15001,
Series Agroplus S (Tier 3),
Agroplus 320S Sn.-> ZKDP48020WTD01001 / 10001,
Agroplus 320S Sn.-> ZKDP6002W0TD05001 / 15001,
Agroplus 330S Sn.-> ZKDU8502W0TD10001,
Agroplus 330S Sn.-> ZKDU9302W0TD15001,
Agroplus 410S Sn.-> ZKDP5202W0TD01001 / 10001,
Agroplus 410S Sn.-> ZKDP6402W0TD05001 / 15001,
Agroplus 420S Sn.-> ZKDP6802W0TD05001,
Agroplus 430S Sn.-> ZKDU8902W0TD10001,
Agroplus 430S Sn.-> ZKDU9702W0TD15001,
Series Agroplus V (Tier 3),
Agroplus 320V Sn.-> ZKDP7202W0TD01001 / 10001,
Agroplus 320V Sn.-> ZKDP8402W0TD05001 / 15001,
Agroplus 330V Sn.-> ZKDV0202W0TD10001,
Agroplus 330V Sn.-> ZKDV1002W0TD15001,
Agroplus 410V Sn.-> ZKDP7602W0TD01001 / 10001,
Agroplus 410V Sn.-> ZKDP8802W0TD05001 / 15001,
Agroplus 420V Sn.-> ZKDP8002W0TS01001,
Agroplus 420V Sn.-> ZKDP9202WOTD05001,
Agroplus 430V Sn.-> ZKDV0602W0TD10001,
Agroplus 430V Sn.-> ZKDV1402W0TD15001,
Fendt (10),
Series 200 Vario,
207 VARIO - Sn.330/00101-99999,
207 Vario S3 Sn.WAM300XXX00F00101-99999,
208 VARIO - Sn.331/00101-99999,
208 Vario S3 Sn.WAM301XXX00F00101-99999,
209 VARIO - Sn.332/00101-99999,
209 Vario S3 Sn.WAM302XXX00F00101-99999,
210 VARIO - Sn.333/00101-99999,
210 Vario S3 Sn.WAM303XXX00F00101-99999,
211 VARIO - Sn.334/00101-99999,
211 Vario S3 Sn.WAM304XXX00F00101-99999,
John Deere (45),
Series 6000 - M,
6110M,
6120M,
6135M,
6145M,
6155M,
6175M,
6195M,
Series 6000 - M Select, Select+, Premium,
6130M Select, Select+, Premium,
6135M Select, Select+, Premium,
6140M Select, Select+, Premium,
6145M Select, Select+, Premium,
6155M Select, Select+, Premium,
6175M Select, Select+, Premium,
6195M Select, Select+, Premium,
Series 6000 - R CommandPro,
6110R CommandPro,
6120R CommandPro,
6130R CommandPro,
6135R CommandPro,
6145R CommandPro,
6155R CommandPro,
6175R CommandPro,
6195R CommandPro,
6215R CommandPro,
6230R CommandPro,
6250R CommandPro,
Series 6000 - R Large Frame,
6175R Large Frame,
6195R Large Frame,
6215R Large Frame,
6230R Large Frame,
6250R Large Frame,
Series 6000 - R Small & Mid Frame,
6110R Small & Mid Frame,
6120R Small & Mid Frame,
6135R Small & Mid Frame,
6145R Small & Mid Frame,
6155R Small & Mid Frame,
Series 6000 - R Stage V,
6R 140 Stage V MY22,
6R 150 Stage V MY22,
6R 165 Stage V MY22,
6R 185 Stage V MY22,
6R 215 Stage V MY22,
Series 6R Large Frame,
6R 215,
Series 6R Mid Frame,
6R 165,
6R 185,
Series 6R Small Frame,
6R 140,
6R 150,
Landini (59),
Series 5-D Tier 4,
100 (2013),
5D100 Tier 4 (2013-),
5D110 Tier 4 (2013-),
5D90,
5D90 Tier 4 (2013-),
Series 5-H T4i,
5-H Tier 4 100 (2013-),
5-H Tier 4 110 (2013-),
5-H Tier 4 115 (2013-),
5-H Tier 4 90 (2013-),
5-H Tier 4i 5-090H (2014-),
5-H Tier 4i 5-100H (2014-),
5-H Tier 4i 5-110H (2014-),
5-H Tier 4i 5-115H (2014-),
Series 6-H Tier4f,
6-H Tier 4f (2018) 6-115H,
6-H Tier 4f (2018) 6-125H,
6-H Tier 4f (2018) 6-135H,
Series 6C Tier4,
6C Tier 4 (2014-) 6.120C,
6C Tier 4 (2014-) 6.130C,
6C Tier 4 (2014-) 6.140C,
Series 6C Tier4f,
6C Tier 4f (2018) 125C,
6C Tier 4f (2018) 135C,
6C Tier 4f (2018) 145C,
Series 6C V-Shift,
6C V-Shift (2016-2018) 6-120C,
6C V-Shift (2016-2018) 6-130C,
6C V-Shift (2016-2018) 6-140C,
Series 6C V-Shift Tier4f,
6C V-Shift Tier 4f (2018) 6-125C,
6C V-Shift Tier 4f (2018) 6-135C,
6C V-Shift Tier 4f (2018) 6-145C,
Series 6L T4i,
6 Tier 4i (2013-) 6-145,
6 Tier 4i (2013-) 6-160,
6 Tier 4i (2013-) 6-175,
6L Tier 4i (2014-) 6-145L,
6L Tier 4i (2014-) 6-160L,
6L Tier 4i (2014-) 6-175L,
Series 7 Tier4f,
7 Tier 4f (2017) 7-160,
7 Tier 4f (2017) 7-180,
7 Tier 4f (2017) 7-200,
7 Tier 4f (2017) 7-220,
7 Tier 4f (2017) 7-230,
Series 7 Tier4i,
7 Tier 4i (2013-2018) 7-160,
7 Tier 4i (2013-2018) 7-175,
7 Tier 4i (2013-2018) 7-190,
7 Tier 4i (2013-2018) 7-215,
Series 7 V-Shift Tier4f RPD7,
7 V-Shift Tier 4f RPD7 (2018) 7-145,
7 V-Shift Tier 4f RPD7 (2018) 7-165,
7 V-Shift Tier 4f RPD7 (2018) 7-175,
Series 7 V-Shift Tier4f RPE5,
7 V-Shift Tier 4f RPE5 (2018) 7-175,
7 V-Shift Tier 4f RPE5 (2018) 7-190,
Series 7 V-Shift Tier4i,
7 V-Shift Tier 4i (2015-2018) 7-175,
7 V-Shift Tier 4i (2015-2018) 7-190,
Series Landforce,
Landforce 115 (2013),
Landforce 125 (2013),
Series Powerfarm Meccanico Tier 3,
110 (2013),
Series Robo-Six,
7 ROBO-SIX Tier 4f (2018) 7-145,
7 ROBO-SIX Tier 4f (2018) 7-165,
7 ROBO-SIX Tier 4f (2018) 7-175,
Series Vision,
V-Shift Tier 4i 6-145 (2015-2018),
V-Shift Tier 4i 6-160 (2015-2018),
V-Shift Tier 4i 6-175 (2015-2018),
Same (31),
Series Frutteto CVT,
Frutteto CVT90 Sn.>ZKDEP90200TS50001,
Series Frutteto S Hi-Steer/Active Drive Farmotion Tier 4i,
Frutteto S100 Sn.>ZKDBM90200TS10001,
Frutteto S100 Sn.>ZKDBP90200TS10001,
Frutteto S105 Sn.>ZKDBN70200TS10001,
Frutteto S105 Sn.>ZKDBS00200TS10001,
Frutteto S115 Sn.>ZKDBP10200TS10001,
Frutteto S115 Sn.>ZKDBS40200TS10001,
Frutteto S80 Sn.>ZKDBM50200TS10001,
Frutteto S80 Sn.>ZKDBP50200TS10001,
Frutteto S90 Sn.>ZKDDZ00200TS10001,
Frutteto S90 Sn.>ZKDDZ40200TS10001,
Frutteto S90.4 Sn.>ZKDBN30200TS10001,
Frutteto S90.4 Sn.>ZKDBR60200TS10001,
Series Frutteto V Hi-Steer/Active Drive Farmotion Tier 4i,
Frutteto V100 Sn.>ZKDBT20200TS10001,
Frutteto V100 Sn.>ZKDBV20200TS10001,
Frutteto V105 Sn.>ZKDBU00200TS10001,
Frutteto V105 Sn.>ZKDBW00200TS10001,
Frutteto V115 Sn.>ZKDBU40200TS10001,
Frutteto V115 Sn.>ZKDBW40200TS10001,
Frutteto V80 Sn.>ZKDBS80200TS10001,
Frutteto V80 Sn.>ZKDBU80200TS10001,
Frutteto V90 Sn.>ZKDDZ80200TS10001,
Frutteto V90 Sn.>ZKDEA20200TS10001,
Frutteto V90.4 Sn.>ZKDBT60200TS10001,
Frutteto V90.4 Sn.>ZKDBV60200TS10001,
Series Frutteto³ S,
Frutteto³ S100 ACTIVEDRIVESn.>ZKDP5302W0TS01001,
Frutteto³ S80 ACTIVEDRIVESn.>ZKDP5702W0TS05001,
Frutteto³ S90 ACTIVEDRIVE Sn.>ZKDP490XW0TS01001,
Frutteto³ S90 ACTIVEDRIVE Sn.>ZKDP610XW0TS05001,
Frutteto³ S90.3 ACTIVEDRIVE Sn.>ZKDU8202W0TS10001,
Frutteto³ S90.3 ACTIVEDRIVE Sn.>ZKDU9002W0TS15001
