Part number SHP492KR
EAN8716106847846
Unit Each

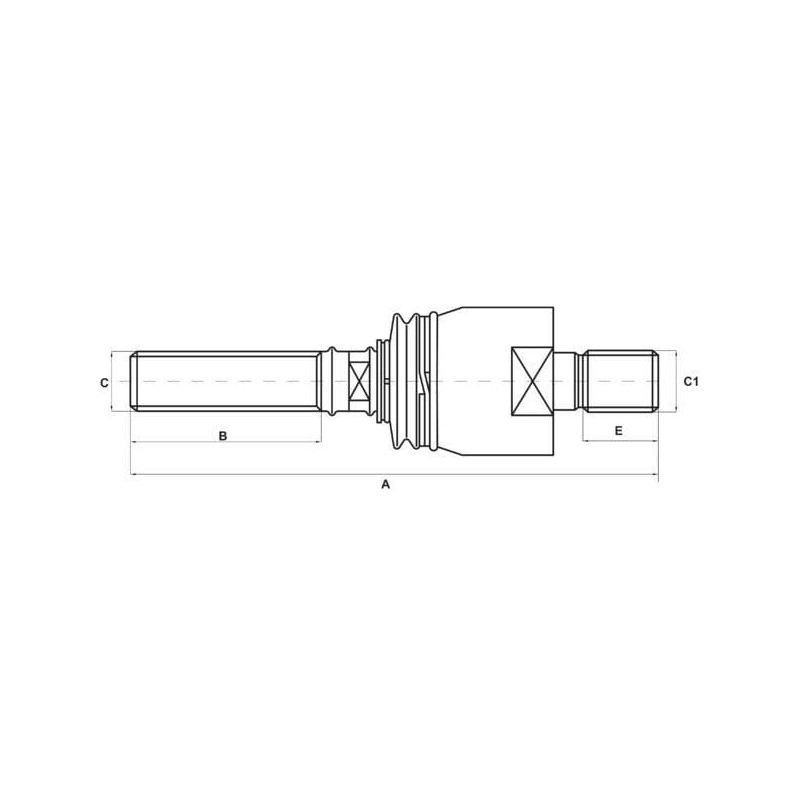

ProductomschrijvingOverview axial tie rods
CThread diameter - rod sideM18
CThread pitch - rod side1.50 mm
End cone length28 mm
C1Thread diameter - end side (wheel) (metric)M20
C1Pitch of thread - end side (wheel) (mm)1.50 mm
Working length176 mm
ATotal length177 mm
BThread length - rod side55 mm
CThread type - rod sideMetric
CThread direction - rod sideRight
Thread length - end side (wheel) (mm)27.2 mm
C1Thread type - end side (wheel)Metric
C1Thread direction - end side (wheel)Right
Head width52 mm
Ball diameter35 mm[
Case - IH (59),
2120 ProSee model,
2130 ProSee model,
2140 ProSee model,
2150 ProSee model,
3210See model,
3220See model,
3230See model,
4210See model,
4220See model,
4230See model,
4240See model,
395See model,
495 / 495XLSee model,
595 / 595XLSee model,
695 / 695XLSee model,
795 / 795XLSee model,
895 / 895XLSee model,
995 / 995XLSee model,
C100See model,
C42See model,
C50See model,
C60See model,
C70See model,
C80See model,
C90See model,
CS100See model,
CS100 ProSee model,
CS48See model,
CS52See model,
CS58See model,
CS63See model,
CS68See model,
CS75See model,
CS78See model,
CS80See model,
CS80 ProSee model,
CS86See model,
CS90See model,
CS90 ProSee model,
CS94See model,
CS95 ProSee model,
CX100See model,
CX50See model,
CX60See model,
CX70See model,
CX80See model,
CX90See model,
JX1070N MaxximaSee model,
JX1075N MaxximaSee model,
JX1095N MaxximaSee model,
MX80C MaxxumSee model,
Quantum 105FSee model,
Quantum 105NSee model,
Quantum 75FSee model,
Quantum 75NSee model,
Quantum 85FSee model,
Quantum 85NSee model,
Quantum 95FSee model,
Quantum 95NSee model,
Claas (29),
Axos 310See model,
Axos 320See model,
Axos 330See model,
Axos 340See model,
Basso 130See model,
Basso 140See model,
Basso 150See model,
Elios 210See model,
Elios 210 Stage IIIb Sn.A4800001-A4809999See model,
Elios 220See model,
Elios 220 Stage IIIb Sn.A4800001-A4809999See model,
Elios 230See model,
Elios 230 Stage IIIb Sn.A4800001-A4809999See model,
Elios 240See model,
Elios 240 Stage IIIb Sn.A4800001-A4809999See model,
Fructus 110See model,
Fructus 120See model,
Fructus 130See model,
Fructus 140See model,
Nectis 217VE /VLSee model,
Nectis 227F / VE / VLSee model,
Nectis 237F/ VE / VLSee model,
Nectis 247F/ VE / VLSee model,
Nectis 257F/ VE / VLSee model,
Nectis 267F/ VE / VLSee model,
Nexos 220FBSee model,
Nexos 230FBSee model,
RB130See model,
RB140See model,
Dana Axles (4),
715-557See model,
720-520See model,
730-520See model,
730-529See model,
Ford (25),
5610SSee model,
6610SSee model,
6810SSee model,
7610SSee model,
7810SSee model,
3230See model,
3430See model,
3930See model,
4130See model,
4630See model,
4830See model,
5030See model,
5110See model,
5610See model,
6410See model,
6610See model,
6710See model,
6810See model,
7010See model,
7610See model,
7710See model,
7810See model,
7910See model,
8010See model,
8210See model,
John Deere (51),
1640See model,
1840See model,
2040See model,
2040SSee model,
2140See model,
3100See model,
3200See model,
3200XSee model,
3300See model,
3300XSee model,
3400See model,
3400XSee model,
3110See model,
3210See model,
3210XSee model,
3310See model,
3310XSee model,
3410See model,
3410XSee model,
1550See model,
1750See model,
1850See model,
1950See model,
2250See model,
2450See model,
2650See model,
2850See model,
5310See model,
5410See model,
5510See model,
5215See model,
5315See model,
5415See model,
5515See model,
5515 High CropSee model,
5080GSee model,
5080GFSee model,
5090GSee model,
5090GFSee model,
5090GHSee model,
5100GFSee model,
5105GF Stage IIIBSee model,
5300NSee model,
5310NSee model,
5320NSee model,
5400NSee model,
5410NSee model,
5420NSee model,
5500NSee model,
5510NSee model,
5520NSee model,
Landini (156),
6060See model,
5860See model,
65FP-LP-GTP-GESee model,
6860See model,
7860See model,
7860HCSee model,
8860See model,
8860HCSee model,
9060See model,
5870See model,
6070See model,
6870See model,
7870See model,
8870See model,
6880See model,
7880See model,
85FP-LP-GTP-GESee model,
8880See model,
8880HCSee model,
9080See model,
9080HCSee model,
9880See model,
9880HCSee model,
Advantage 55See model,
Advantage 60See model,
Advantage 65See model,
Advantage 75See model,
Advantage 85See model,
Advantage 95See model,
Advantage 55FSee model,
Advantage 60FSee model,
Advantage 65FSee model,
Advantage 75FSee model,
Advantage 85FSee model,
Alpine 65See model,
Alpine 70See model,
Alpine 75See model,
Alpine 80See model,
Alpine 85See model,
Alpine 65 (2004-2007)See model,
Alpine 75 (2004-2007)See model,
Alpine 85 (2004-2007)See model,
Atlantis 100See model,
Atlantis 70See model,
Atlantis 75See model,
Atlantis 80See model,
Atlantis 85See model,
Atlantis 90See model,
Atlas 100See model,
Atlas 70See model,
Atlas 75See model,
Atlas 80See model,
Atlas 85See model,
Atlas 90See model,
Blizzard 50See model,
Blizzard 60See model,
Blizzard 65See model,
Blizzard 75See model,
Blizzard 85See model,
Blizzard 95See model,
Globus 50See model,
Globus 55See model,
Globus 60See model,
Globus 65See model,
Globus 70See model,
Globus 75See model,
Globus 80See model,
10000See model,
10000SSee model,
12500See model,
13000See model,
14500See model,
Mythos 100See model,
Mythos 110See model,
Mythos 115See model,
Mythos 90See model,
Mythos 105See model,
Rex 100See model,
Rex 100GESee model,
Rex 100GTSee model,
Rex 105GESee model,
Rex 105GTSee model,
Rex 55See model,
Rex 60See model,
Rex 65See model,
Rex 70See model,
Rex 75GTSee model,
Rex 80See model,
Rex 85GTSee model,
Rex 90See model,
Rex 90GTSee model,
Rex 95GESee model,
Rex 95GTSee model,
Rex 105FSee model,
Rex 4-100F-V-GTSee model,
Rex 4-70F-VSee model,
Rex 4-80F-V-GTSee model,
Rex 4-90F-V-GTSee model,
Rex 60FSee model,
Rex 75FSee model,
Rex 85FSee model,
Rex 95FSee model,
Rex Cab 100See model,
Techno Restyling (2010) 60FSee model,
Techno Restyling (2010) 70F/GESee model,
Techno Restyling (2010) 75FSee model,
Techno Restyling (2010) 80F/GE/GTSee model,
Techno Restyling (2010) 85F/GESee model,
Techno Restyling (2010) 90F/GE/GTSee model,
Techno Tier 2 (2003-2008) 105F/GE/GTSee model,
Techno Tier 2 (2003-2008) 60F/GESee model,
Techno Tier 2 (2003-2008) 70F/GESee model,
Techno Tier 2 (2003-2008) 75F/GE/GTSee model,
Techno Tier 2 (2003-2008) 80F/GESee model,
Techno Tier 2 (2003-2008) 85F/GE/GTSee model,
Techno Tier 2 (2003-2008) 95F/GE/GTSee model,
Techno Tier 3 (2008-2009) 100F-GE-GTSee model,
Techno Tier 3 (2008-2009) 105F-GE-GTSee model,
Techno Tier 3 (2008-2009) 65F-GESee model,
Techno Tier 3 (2008-2009) 75F-GESee model,
Techno Tier 3 (2008-2009) 80F-GE-GTSee model,
Techno Tier 3 (2008-2009) 90F-GE-GTSee model,
Tier 3 (2008-2009) 100F/GE/GTSee model,
Tier 3 (2008-2009) 105F/GE/GTSee model,
Tier 3 (2008-2009) 65F/GESee model,
Tier 3 (2008-2009) 75F/GESee model,
Tier 3 (2008-2009) 80F/GE/GTSee model,
Tier 3 (2008-2009) 90F/GE/GTSee model,
60 Tier 2 (2007-2008)See model,
60 Tier 2 (2007-2016)See model,
70 Tier 2 (2007-20016)See model,
70 Tier 2 (2007-2008)See model,
75 Tier 2 (2007-2008)See model,
75 Tier 2 (2007-2016)See model,
80 Tier 2 (2007-2008)See model,
80 Tier 2 (2007-2016)See model,
85 Tier 2 (2007-2016)See model,
65 Tier 3 (2008-2015)See model,
70 Tier 3 (2008-2015)See model,
75 Tier 3 (2008-2015)See model,
75FP-LP-GTP-GESee model,
80 Tier 3 (2008-2015)See model,
Top Restyling (2010) 100F/GE/GTSee model,
Top Restyling (2010) 110F/GE/GTSee model,
Top Restyling (2010) 70F/GESee model,
Top Restyling (2010) 75FSee model,
Top Restyling (2010) 80F/GE/GTSee model,
Top Restyling (2010) 85F/GESee model,
Top Restyling (2010) 90F/GE/GTSee model,
Tier 2 (2003-2008-) 105F/GT/GESee model,
Tier 2 (2003-2008-) 60F/GESee model,
Tier 2 (2003-2008-) 70F/GESee model,
Tier 2 (2003-2008-) 75F/GT/GESee model,
Tier 2 (2003-2008-) 80F/GESee model,
Tier 2 (2003-2008-) 85F/GT/GESee model,
Tier 2 (2003-2008-) 95F/GT/GESee model,
Massey Ferguson (86),
1004See model,
1014See model,
250See model,
265See model,
265SSee model,
275See model,
285SSee model,
290See model,
298See model,
283See model,
365See model,
375See model,
390See model,
396See model,
398See model,
399See model,
3050See model,
3060See model,
3065See model,
3070See model,
3075See model,
3080See model,
3085See model,
3090See model,
3095See model,
3115See model,
3120See model,
353See model,
363See model,
373See model,
383See model,
393See model,
354See model,
364See model,
374See model,
384See model,
394See model,
377See model,
397See model,
390TSee model,
410See model,
415See model,
420See model,
425See model,
435See model,
440See model,
460See model,
4225See model,
4235See model,
4240See model,
4245See model,
4255See model,
4260See model,
4265See model,
4270See model,
4325See model,
4335See model,
4345See model,
4355See model,
4360See model,
4365See model,
4370See model,
5425See model,
5435See model,
5445See model,
5455See model,
5460See model,
6110See model,
6120See model,
6130See model,
6140See model,
6150See model,
6160See model,
6235See model,
6245See model,
6255See model,
6260See model,
6265See model,
6445See model,
6455See model,
6460See model,
6470See model,
715-557See model,
720-520See model,
730-520See model,
730-529See model,
McCormick (114),
60 Tier 2 (2007-2008)See model,
70 Tier 2 (2007-2008)See model,
75 Tier 2 (2007-2008)See model,
80 Tier 2 (2007-2008)See model,
C100See model,
C50See model,
C60See model,
C60L C-L Mondia Tier 2 (2007-2016)See model,
C65L Tier 3 (2008-2015)See model,
C70See model,
C70L Series C-L Mondial Tier 2 (2007-2016)See model,
C70L Tier 3 (2008-2015)See model,
C75L C-L Mondial Tier 2 (2007-2016)See model,
C75L Tier 3 (2008-2015)See model,
C80See model,
C80L C-L Mondial Tier 2 (2007-2016)See model,
C80L Tier 3 (2008-2015)See model,
C85L C-L Mondial Tier 2 (2007-2016)See model,
C90See model,
CX 100See model,
CX 105See model,
CX 50See model,
CX 60See model,
CX 70See model,
CX 75See model,
CX 80See model,
CX 85See model,
CX 90See model,
CX 95See model,
CX-L 65 (2004-2007)See model,
CX-L 75 (2004-2007)See model,
CX-L 85 (2004-2007)See model,
CX-L Series CX-L 65See model,
CX-L Series CX-L 75See model,
CX-L Series CX-L 85See model,
CX100 (2001-2007)See model,
CX100 Synchro Tier 3 (2008-2009)See model,
CX100 Synchro Tier 3 Restyling (2009-2011)See model,
CX100 Xtrashift Tier 3 (2008-2009)See model,
CX100 Xtrashift Tier 3 Restyling (2009-2011)See model,
CX105 (2001-2007)See model,
CX105 Synchro Tier 3 (2008-2009)See model,
CX105 Synchro Tier 3 Restyling (2009-2011)See model,
CX105 Xtrashift Tier 3 (2008-2009)See model,
CX105 Xtrashift Tier 3 Restyling (2009-2011)See model,
CX110 Synchro Tier 3 (2008-2009)See model,
CX110 Synchro Tier 3 Restyling (2009-2011)See model,
CX110 Xtrashift Tier 3 (2008-2009)See model,
CX110 Xtrashift Tier 3 Restyling (2009-2011)See model,
CX50 (2001-2007)See model,
CX60 (2001-2007)See model,
CX70 (2001-2007)See model,
CX75 (2001-2007)See model,
CX80 (2001-2007)See model,
CX85 (2001-2007)See model,
CX90 (2001-2007)See model,
CX90 Synchro Tier 3 (2008-2009)See model,
CX90 Synchro Tier 3 Restyling (2009-2011)See model,
CX90 Xtrashift Tier 3 (2008-2009)See model,
CX90 Xtrashift Tier 3 Restyling (2009-2011)See model,
CX95 (2001-2007)See model,
F100 Xtrashift Tier 1 (2000-2003)See model,
F100-GE-XL FTop Restyling (2010)See model,
F100GE-XL F/XL Techno Tier 3 (2008-2009)See model,
F100GE-XL F/XL Tier 3 (2008-2009)See model,
F105F-GE-XL F/XL Techno Tier 2 (2003-2008)See model,
F105F-XL-GE F/XL Tier 2 (2003-2008)See model,
F105GE-XL F/XL Techno Tier 3 (2008-2009)See model,
F105GE-XL F/XL Tier 3 (2008-2009)See model,
F110-GE-XL FTop Restyling (2010)See model,
F60F-GE F/XL Techno Tier 2 (2003-2008)See model,
F60F-GE F/XL Tier 2 (2003-2008)See model,
F65GE F/XL Techno Tier 3 (2008-2009)See model,
F65GE F/XL Tier 3 (2008-2009)See model,
F70-GE F Top Restyling (2010)See model,
F70-GE FE-Line Restyling (2010)See model,
F70F-GE F/XL Techno Tier 2 (2003-2008)See model,
F70F-GE F/XL Tier 2 (2003-2008)See model,
F75F Top Restyling (2010)See model,
F75F-GE-XL F/XL Techno Tier 2 (2003-2008)See model,
F75F-XL-GE F/XL Tier 2 (2003-2008)See model,
F75GE F/XL Tier 3 (2008-2009)See model,
F75GE Rex Techno Tier 3 (2008-2009)See model,
F80-GE-XL F E-Line Restyling (2010)See model,
F80-GE-XL F Top Restyling (2010)See model,
F80F-GE F/XL Techno Tier 2 (2003-2008)See model,
F80F-GE F/XL Tier 2 (2003-2008)See model,
F80GE-XL F/XL Techno Tier 3 (2008-2009)See model,
F80GE-XL F/XL Tier 3 (2008-2009)See model,
F85-GE F E-Line Restyling (2010)See model,
F85-GE F Top Restyling (2010)See model,
F85F-GE-XL F/XL Techno Tier 2 (2003-2008)See model,
F85F-XL-GE F/XL Tier 2 (2003-2008)See model,
F90-GE-XL F E-Line Restyling (2010)See model,
F90-GE-XL F Top Restyling (2010)See model,
F90GE-XL F/XL Techno Tier 3 (2008-2009)See model,
F90GE-XL F/XL Tier 3 (2008-2009)See model,
F95F-GE-XL F/XL Techno Tier 2 (2003-2008)See model,
F95F-XL-GE F/XL Tier 2 (2003-2008)See model,
MC80See model,
MTX155See model,
MTX165See model,
MTX175See model,
MTX185See model,
MTX200See model,
TTX190See model,
TTX210See model,
TTX230See model,
XTX 185See model,
XTX 200See model,
XTX 215See model,
ZTX 230See model,
ZTX 260See model,
ZTX 280See model,
New Holland (23),
3930See model,
T4.110F Low T4A L/Cab (12/18 -)See model,
T4.110F T4A W/Cab (9/17 -)See model,
T4.80F Low T4A L/Cab (12/18 -)See model,
T4.80F T4A L/Cab (9/17 -)See model,
T4.80F T4A W/Cab (9/17 -)See model,
T4.90F Low T4A L/Cab (12/18 -)See model,
T4.90F T4A W/Cab (9/17 -)See model,
T7540See model,
T7550See model,
T4020VSee model,
T4030NSee model,
T4030VSee model,
T4040NSee model,
T4040VSee model,
T4050NSee model,
T4050VSee model,
T4060NSee model,
T4060VSee model,
TN75See model,
TN95See model,
TVT190See model,
TVT195See model,
Renault (23),
Ceres 310-4See model,
Ceres 65See model,
Ceres 654X4See model,
Ceres 75 (R 3331, R 3332) MWM engineSee model,
Ceres 85See model,
Ceres 95See model,
Cergos 330 (M 3512)See model,
Cergos 335See model,
Cergos 340 (M 3522)See model,
Cergos 345See model,
Cergos 350 (M 3532)See model,
Cergos 355See model,
Ergos 105See model,
Ergos 85See model,
Ergos 95See model,
Fructus 120-4See model,
Fructus 130-4See model,
Fructus 140-4See model,
55-14VSee model,
70-14F (R 3268)See model,
70-14VSee model,
80-14F (R 3278)See model,
80-14V (R 3277)See model,
Steyr (19),
768See model,
942See model,
948See model,
9078See model,
9086See model,
9094See model,
9080 MSee model,
9090 MSee model,
9100 MSee model,
M948See model,
M952See model,
M958See model,
M963See model,
M968See model,
M975See model,
M9078See model,
M9083See model,
M9086See model,
M9094See model,
Valtra / Valmet (33),
205See model,
255See model,
305See model,
315See model,
355See model,
355 ForestSee model,
355OCSee model,
365See model,
365 ForestSee model,
365OCSee model,
365SSee model,
405See model,
415See model,
415 MSee model,
455See model,
455 ForestSee model,
455OCSee model,
465See model,
465 ForestSee model,
465OCSee model,
465SSee model,
555See model,
555 ForestSee model,
555OCSee model,
565See model,
565 ForestSee model,
565OCSee model,
665See model,
665 ForestSee model,
665OCSee model,
665SSee model,
865See model,
865SSee model
