Part number LA10016
EAN8716106930869
Unit Each
ProsExtensive ground illumination for use in the field Optimal ambient lighting
Product detailsLED lamps are exposed to dirt, fertilisers, road salt, acids and more. For best performance and long life, the lens and cooling fins should be cleaned regularly Meets latest LED technology Minimum 30.000 hrs of lifetime Retail friendly packaging 1 year warranty
ApplicationUniversal Off road Tractor Construction vehicle Truck

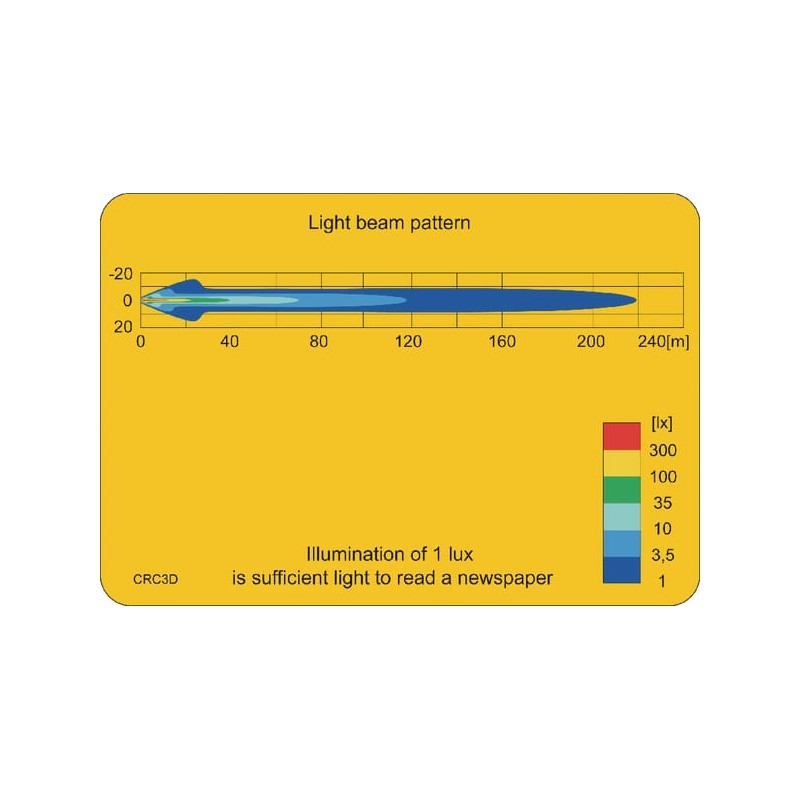

Beam angle4 °
Bulbs technologyLED
Cable length0.5 m
Colour temperature5000 K
Diameter117 mm
FunctionWork light
Height161 mm
Insulation class69K
Length (depth)74 mm
Light colourWhite
Light typeSpot beam
Luminous flux2000 lm
Max working temperature80 °C
Min working temperature-40 °C
Mounting typeBolt on
Nominal voltage12 V24 V
Nominal voltage range10-30 V
Number of LEDs6
Plug typeBare wire ends
Power25 W
ShapeRound
Suitable for machine/vehicle brandUniversal Deutz-Fahr
Weight0.95 kg
Width117 mm
Number of cable cores2
Content in sale unit1 pcs[
Case - IH (38),
433See model,
533See model,
633See model,
733See model,
833See model,
440See model,
540See model,
640See model,
740See model,
840See model,
940See model,
644See model,
743 / 743XLSee model,
744See model,
745 / 745XLSee model,
745SSee model,
844See model,
844SSee model,
845 / 845XLSee model,
1046See model,
1246See model,
946See model,
1255 / 1255XLSee model,
1455 / 1455XLSee model,
495 / 495XLSee model,
595 / 595XLSee model,
695 / 695XLSee model,
795 / 795XLSee model,
895 / 895XLSee model,
995 / 995XLSee model,
523See model,
553See model,
624See model,
654See model,
724See model,
734See model,
824See model,
834See model,
DEUTZ-FAHR (66),
AgroXtra 3.57 Sn.-> 7609See model,
AgroXtra 4.07 Sn.-> 7628See model,
AgroXtra 4.17 Sn.-> 7639See model,
AgroXtra 4.47 Sn.-> 7647See model,
AgroXtra 4.57 Sn.-> 7641See model,
AgroXtra 6.07 Sn.-> 7645See model,
AgroXtra 6.17 Sn.-> 7646See model,
Agrocompact 3.30V/F Sn.-> 7939 / 7940See model,
Agrocompact 3.50S Sn.-> 7946 / 7947See model,
Agrocompact 3.50V/F Sn.-> 7941 / 7942See model,
Agrocompact 3.70V/F Sn.-> 7943 / 7944See model,
Agrocompact 3.90F Sn.-> 7945See model,
Agrocompact 3.90S Sn.-> 7948 / 7949See model,
Agroprima 4.31 Sn.-> 7630 / 7631See model,
Agroprima 4.51 Sn.-> 7634 / 7635See model,
Agroprima 4.56 Sn.-> 7614 / 7615See model,
Agroprima 6.06 Sn.-> 7636 / 7637See model,
Agroprima 6.16 Sn.-> 7638See model,
2807See model,
3607See model,
4007See model,
4507See model,
4807See model,
5207See model,
6007See model,
6207See model,
6507See model,
6807See model,
6907See model,
7007See model,
7207See model,
7807See model,
DX110See model,
DX120See model,
DX140See model,
DX145See model,
DX160See model,
DX230See model,
DX250See model,
DX80See model,
DX85See model,
DX86See model,
DX90See model,
DX92See model,
DX4.10See model,
DX4.30See model,
DX4.50See model,
DX4.70See model,
DX6.05See model,
DX6.10See model,
DX6.30See model,
DX6.50See model,
DX7.10See model,
DX3.10See model,
DX3.30See model,
DX3.50See model,
DX3.60See model,
DX3.65See model,
DX3.70See model,
DX3.80See model,
DX3.90See model,
DX3.10VSee model,
DX3.50SSee model,
Intrac 6.30See model,
Intrac 6.60See model,
John Deere (32),
1040See model,
1140See model,
1640See model,
2040See model,
2040SSee model,
2140See model,
3040See model,
3140See model,
3640See model,
840See model,
940See model,
1950See model,
1950NSee model,
2250See model,
2450See model,
2650See model,
2650NSee model,
2850See model,
3050See model,
3350See model,
3650See model,
5310See model,
5410See model,
5510See model,
5215See model,
5315See model,
5415See model,
5515See model,
5515 High CropSee model,
5310NSee model,
5410NSee model,
5510NSee model
