Part number SHP009KR
EAN8716106431595
Unit Each

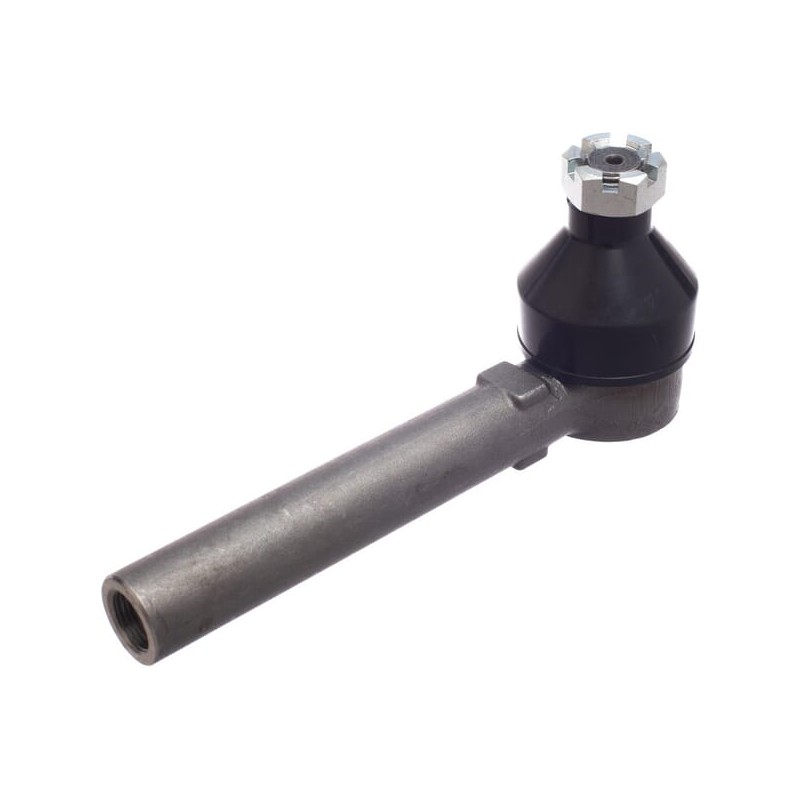

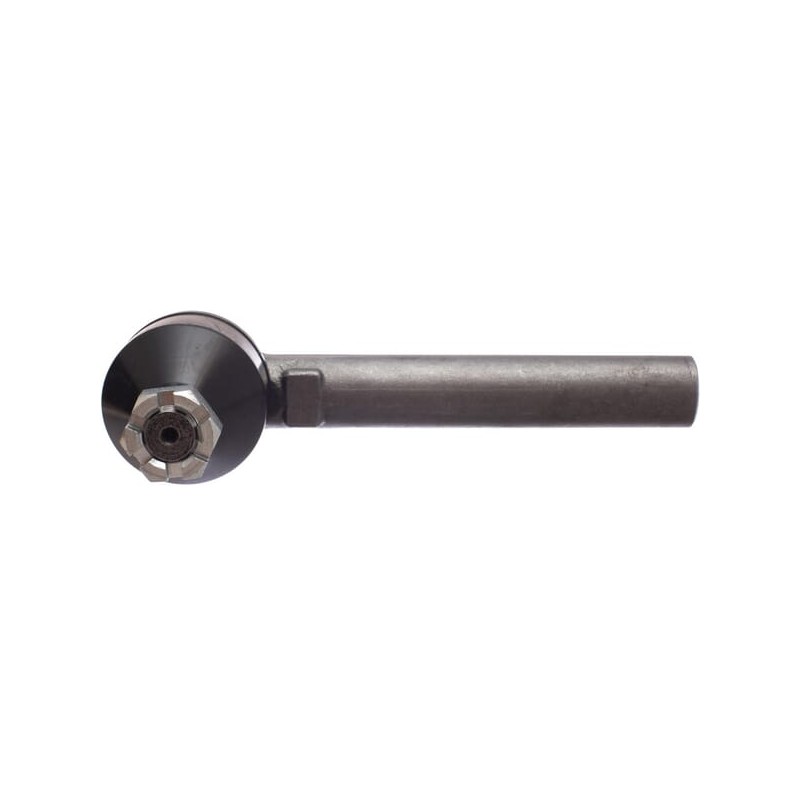

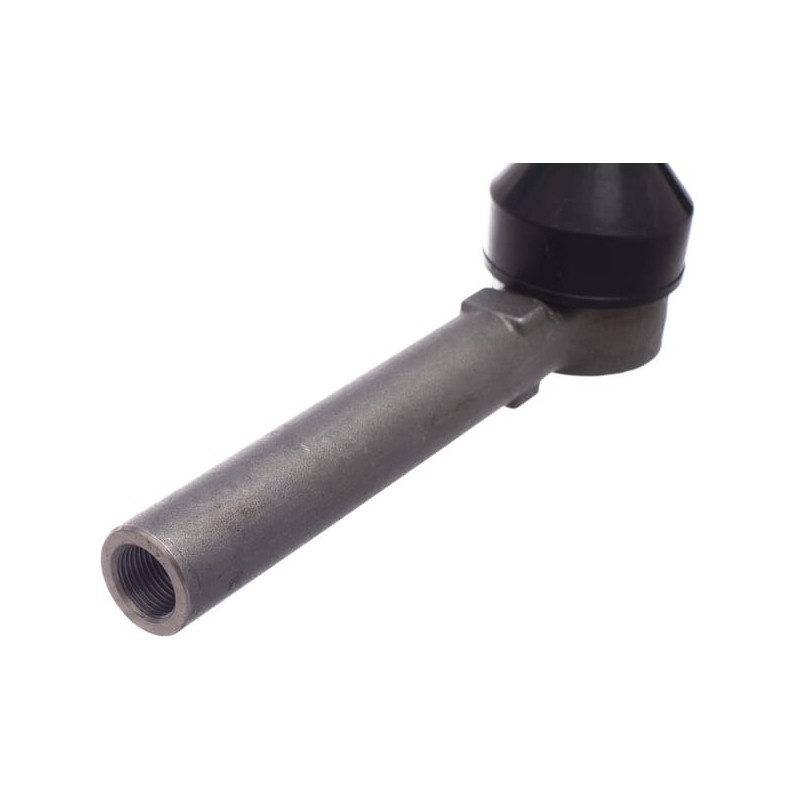

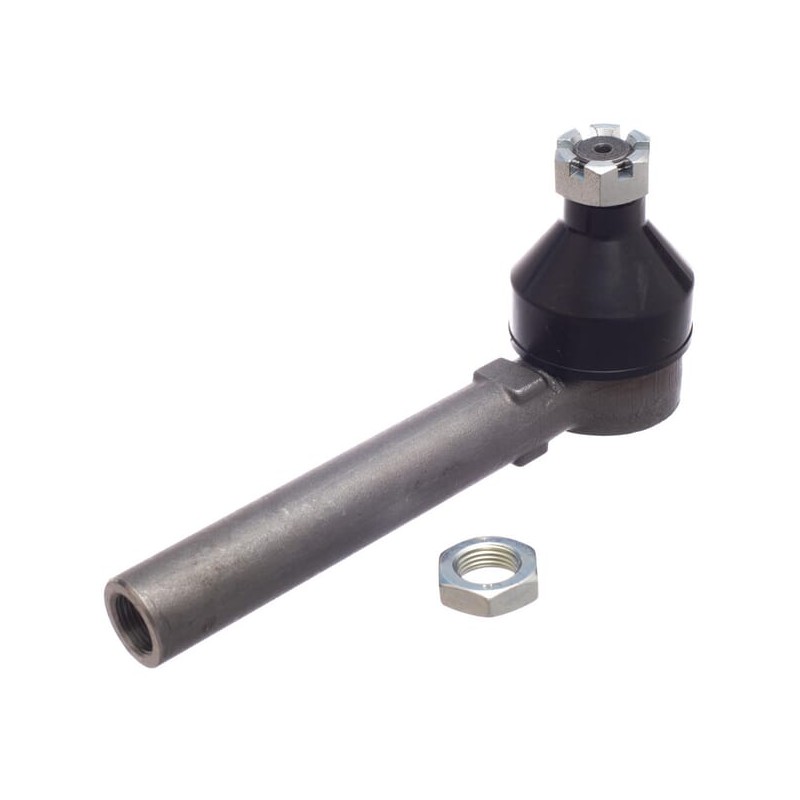

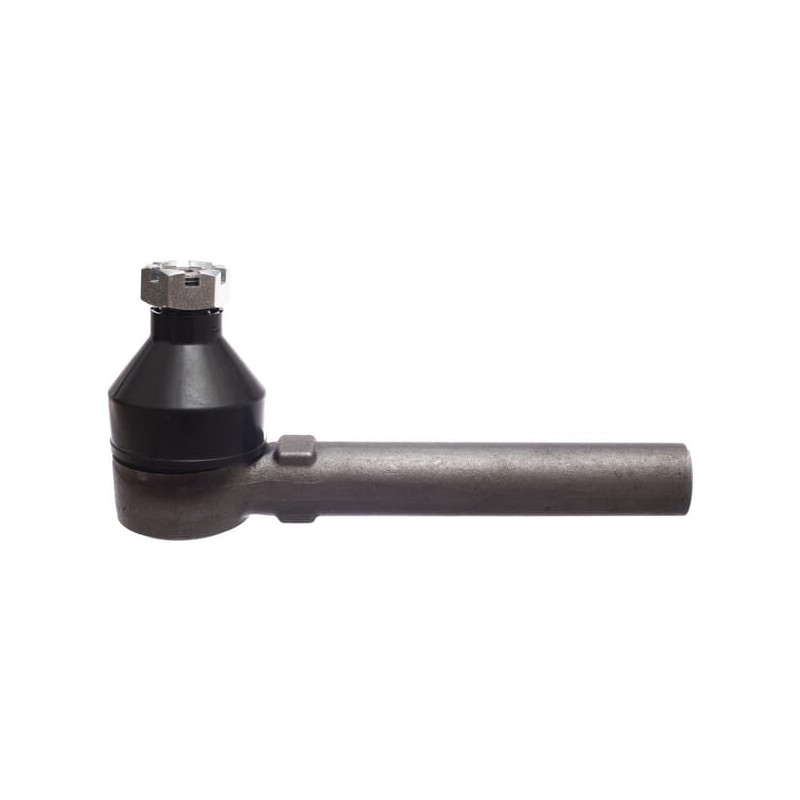

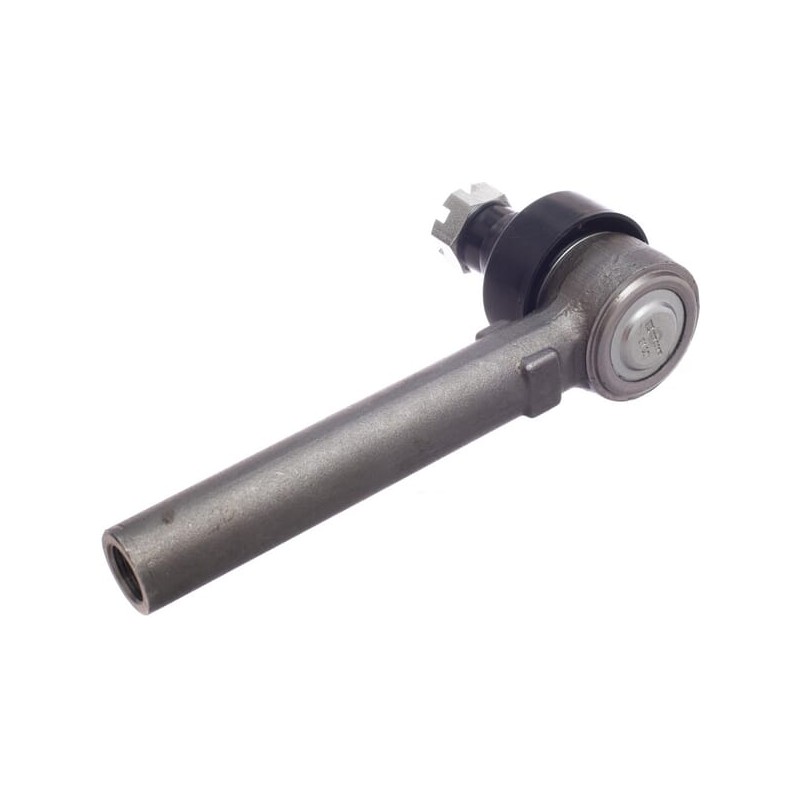

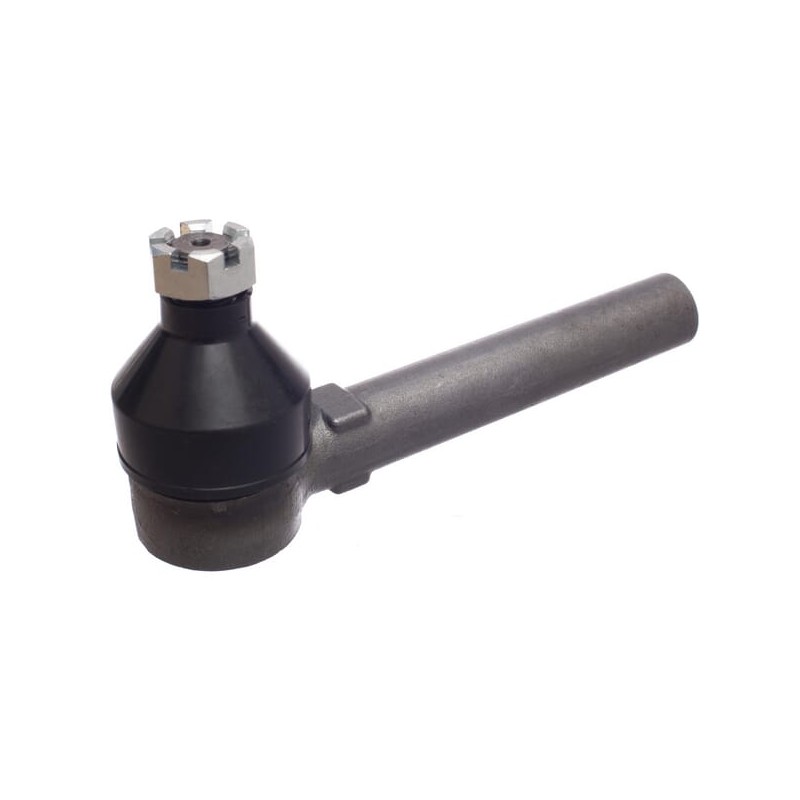

ProductomschrijvingTie Rod End with Internal thread, long
CThread diameter - rod sideM18
CThread pitch - rod side1.50 mm
D1Min. connection diameter20 mm
D2Max. connection diameter22.2 mm
EEnd cone length22 mm
FThread diameter - end side (wheel) (metric)M18
FPitch of thread - end side (wheel) (mm)1.50 mm
AWorking length178 mm
Total length172 mm
Thread length - rod side55 mm
CThread type - rod sideMetric
CThread direction - rod sideRight
Thread length - end side (wheel) (mm)23.5 mm
FThread type - end side (wheel)Metric
FThread direction - end side (wheel)Right
Head width35 mm
BOutside rod diameter26 mm
CurvedNo[
Case - IH (38),
3210See model,
3220See model,
3230See model,
4210See model,
4220See model,
4230See model,
4240See model,
395See model,
495 / 495XLSee model,
595 / 595XLSee model,
695 / 695XLSee model,
795 / 795XLSee model,
895 / 895XLSee model,
995 / 995XLSee model,
C100See model,
C50See model,
C60See model,
C70See model,
C80See model,
C90See model,
CS100See model,
CS100 ProSee model,
CS105 ProSee model,
CS80See model,
CS80 ProSee model,
CS85 ProSee model,
CS90See model,
CS90 ProSee model,
CS94See model,
CS95 ProSee model,
CX100See model,
CX50See model,
CX60See model,
CX70See model,
CX80See model,
CX90See model,
MX80C MaxxumSee model,
MX90C MaxxumSee model,
Ford (7),
3230See model,
3430See model,
3930See model,
4130See model,
4630See model,
4830See model,
5030See model,
John Deere (13),
5300See model,
5400See model,
5500See model,
5415See model,
5615See model,
5715See model,
5220See model,
5320See model,
5420See model,
5520See model,
5425See model,
5625See model,
5725See model,
Landini (2),
5830See model,
6030See model,
Massey Ferguson (28),
240See model,
243See model,
253See model,
263See model,
2625 CompactSee model,
342See model,
352See model,
362See model,
362NSee model,
372NSee model,
382NSee model,
410See model,
420See model,
430See model,
4215See model,
4220See model,
4225See model,
4235See model,
4240See model,
4245See model,
4255See model,
4265See model,
4315See model,
4320See model,
4325See model,
4335See model,
4345See model,
4355See model,
McCormick (32),
C100See model,
C50See model,
C60See model,
C70See model,
C80See model,
C90See model,
CX 100See model,
CX 105See model,
CX 50See model,
CX 60See model,
CX 70See model,
CX 75See model,
CX 80See model,
CX 85See model,
CX 90See model,
CX 95See model,
CX100 SyncroSee model,
CX100 Syncro RESee model,
CX100 XtraShiftSee model,
CX100 XtraShift RESee model,
CX105 SyncroSee model,
CX105 Syncro RESee model,
CX105 XtraShiftSee model,
CX105 XtraShift RESee model,
CX110 Syncro RESee model,
CX110 XtraShiftSee model,
CX110 XtraShift RESee model,
CX90 SyncroSee model,
CX90 Syncro RESee model,
CX90 XtraShiftSee model,
CX90 XtraShift RESee model,
MC80See model,
New Holland (1),
3930See model,
Steyr (6),
9080 MTSee model,
9085MTSee model,
9090MTSee model,
9095MTSee model,
9100 MTSee model,
9105MTSee model,
Zetor (36),
60 - Engine >2015See model,
80 - Engine < 2015See model,
80 - Engine >2015See model,
5421 ProximaSee model,
5441 ProximaSee model,
6421 ProximaSee model,
6441 ProximaSee model,
7421 ProximaSee model,
7441 ProximaSee model,
8421 ProximaSee model,
8441 ProximaSee model,
Proxima 65See model,
Proxima 75See model,
Proxima 85See model,
Proxima 95See model,
Proxima 100See model,
Proxima 70See model,
Proxima 80See model,
Proxima 90See model,
105 - Engine >2009-2011See model,
85 - Engine >2009-2011See model,
95 - Engine >2009-2011See model,
10541 - Engine >2006-2012See model,
8541 - Engine >2006-2012See model,
9541 - Engine >2006-2012See model,
100See model,
110See model,
90See model,
105 - Engine >2009-2011See model,
115 - Engine >2009-2011See model,
85 - Engine >2009-2011See model,
95 - Engine >2009-2011See model,
100 - Engine >2011See model,
110 - Engine >2011See model,
120 - Engine >2011See model,
90 - Engine >2011See model
