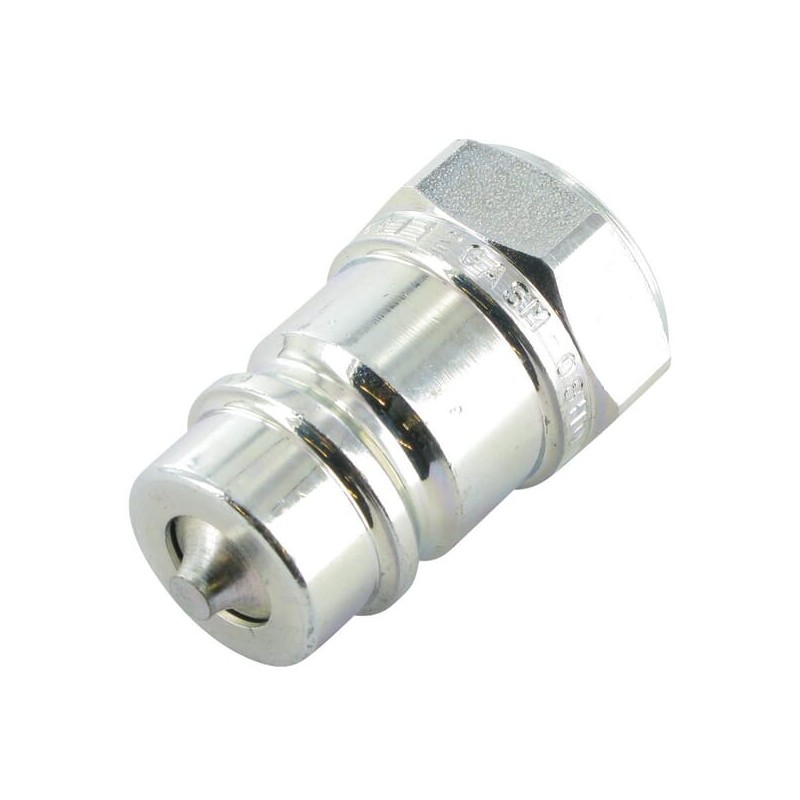

Part number NV1212SAEM
EAN
Unit Each
DetailsSimple coupling with very light spring in coupling sleeve
Application rangeFor universal use Agricultural machines Municipal services technology Viniculture Mineral oil-based fluids
PropertiesAxial actuation of locking sleeve to rear (single acting) Induction hardened stressed parts No breakaway function Large number of latching balls
BenefitsUser-friendly
ShapeStraight - 2 connection sides
Connection no 1 typeQuick coupling
Connection no 1 type - male/femaleMale
Connection no 1 diameter0.81 Inch

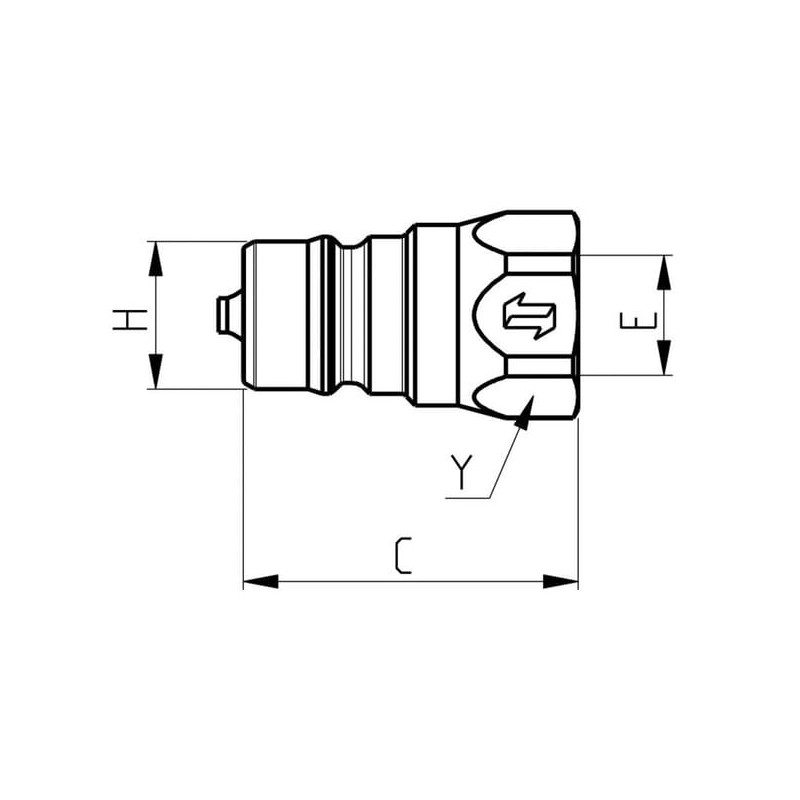

HConnection no 1 diameter20.5 mm
Connection no 1 thread diameter3/4 Inch
Connection no 1 threads per inch16
Connection no 1 thread typeUNF
Connection no 1 thread type code0
Connection no 1 hex size1.06 Inch
YConnection no 1 hex size27 mm
Size codeBG 3
Body size3/4 Inch
Body size12.5 mm
Connection 2, typeThread
Connection 2, type - male/femaleFemale
EConnection 2, thread diameter3/4 Inch
Connection 2, threads per inch16
Connection 2, thread typeUNF
Connectable under pressureNo
ISO standard7241-A 11926-1

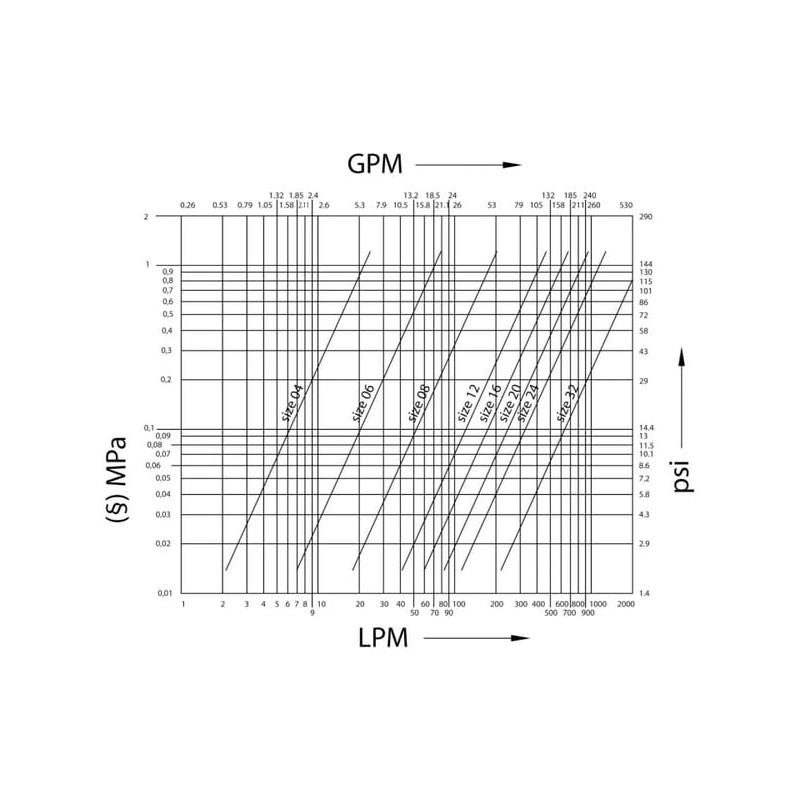

Flow rate at 2 bar75 l/min
Outside diameter1.18 Inch
Outside diameter30 mm
Total length1.73 Inch

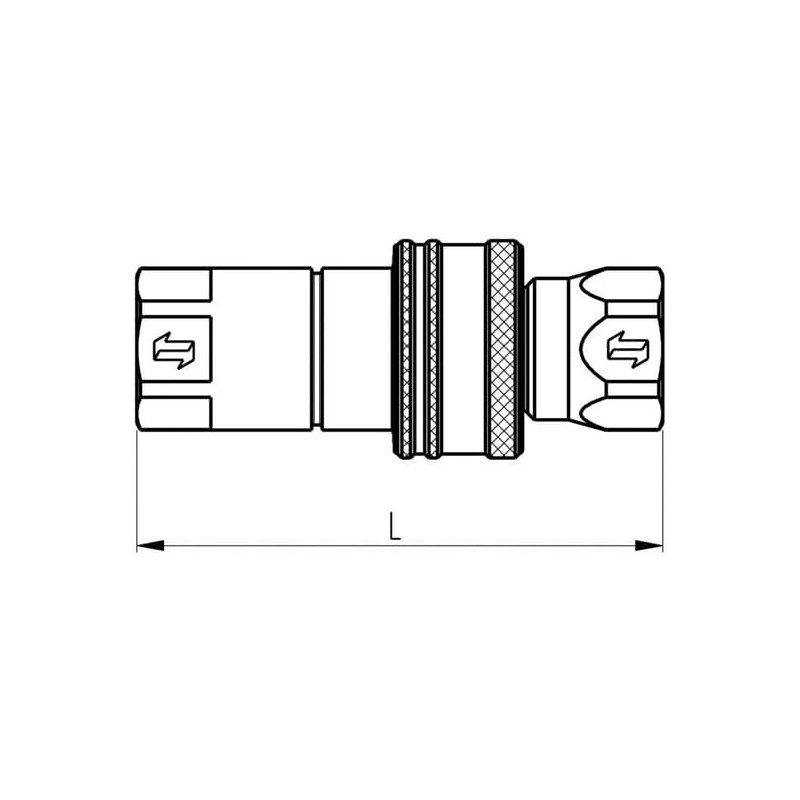

LTotal length85 mm
MaterialSteel
Surface treatmentChromium-plated
Working pressure300 BAR
Max working temperature125 °C
Min. working temperature-25 °C
Quick connection locking typeRadial balls
Quick connection working typeSleeve retraction
Quick disconnection working typeSleeve retraction
Seal materialNitrile rubber [NBR]
SeriesNV
Valve typePoppet
Weight89 g[
Case - IH (10),
3210See model,
3220See model,
3230See model,
4210See model,
4220See model,
4230See model,
4240See model,
MX100C MaxxumSee model,
MX80C MaxxumSee model,
MX90C MaxxumSee model,
Ford (78),
2000See model,
2600See model,
2310See model,
2610See model,
2810See model,
2910See model,
3310See model,
3610See model,
3910See model,
4110See model,
4610See model,
3055See model,
3000See model,
3600See model,
3900See model,
5610SSee model,
6610SSee model,
6810SSee model,
7610SSee model,
3230See model,
3430See model,
3930See model,
4130See model,
4630See model,
4830See model,
5030See model,
3435See model,
3935See model,
4135See model,
4000See model,
4100See model,
4600See model,
5640See model,
6640See model,
7740See model,
7840See model,
5000See model,
5100See model,
5600See model,
5700See model,
5900See model,
5110See model,
5610See model,
6410See model,
6610See model,
6710See model,
6810See model,
7410See model,
7610See model,
7710See model,
7810See model,
7910See model,
8210See model,
6000See model,
6600See model,
6700See model,
7000See model,
7100See model,
7600See model,
7700See model,
8530See model,
8630See model,
8730See model,
8830See model,
8200See model,
8400See model,
8600See model,
8700See model,
9200See model,
9600See model,
9700See model,
TW10See model,
TW15See model,
TW20See model,
TW25See model,
TW30See model,
TW35See model,
TW5See model,
John Deere (29),
2040See model,
2440See model,
2640See model,
2940See model,
5620See model,
5720See model,
5820See model,
5425NSee model,
5090ESee model,
5090ELSee model,
5075MSee model,
7830 RussiaSee model,
7930 RussiaSee model,
7310RSee model,
8430See model,
8630See model,
8285R RussiaSee model,
8310R RussiaSee model,
9370RSee model,
9420RSee model,
9470RSee model,
9470RTSee model,
9520RSee model,
9520RTSee model,
9570RSee model,
9570RTSee model,
9620RSee model,
9410R RussiaSee model,
9460R RussiaSee model,
Landini (5),
12500See model,
14500See model,
16000See model,
16500See model,
9550See model,
Massey Ferguson (39),
1114See model,
1134See model,
1080See model,
1100See model,
1200See model,
1250See model,
135See model,
148See model,
165See model,
168See model,
175See model,
178See model,
185See model,
188See model,
240See model,
265See model,
275See model,
285See model,
290See model,
298See model,
230See model,
2620See model,
2640See model,
2680See model,
2720See model,
2625See model,
2645See model,
2685See model,
2725See model,
698TSee model,
550See model,
565See model,
575See model,
590See model,
595See model,
675See model,
690See model,
698TSee model,
699See model,
McCormick (22),
MC100See model,
MC105See model,
MC115See model,
MC120 Power 6 Tier 2See model,
MC135 Power 6 Tier 2See model,
MC80See model,
MC90See model,
MC95See model,
MTX110See model,
MTX120See model,
MTX125See model,
MTX135See model,
MTX140See model,
MTX150See model,
MTX155See model,
MTX165See model,
MTX175See model,
MTX185See model,
MTX200See model,
XTX 185See model,
XTX 200See model,
XTX 215See model,
New Holland (10),
3930See model,
4635See model,
4835See model,
5635See model,
6635See model,
7635See model,
5640See model,
6640See model,
7740See model,
7840See model
