Part number SHP096KR
EAN8716106792771
Unit Each

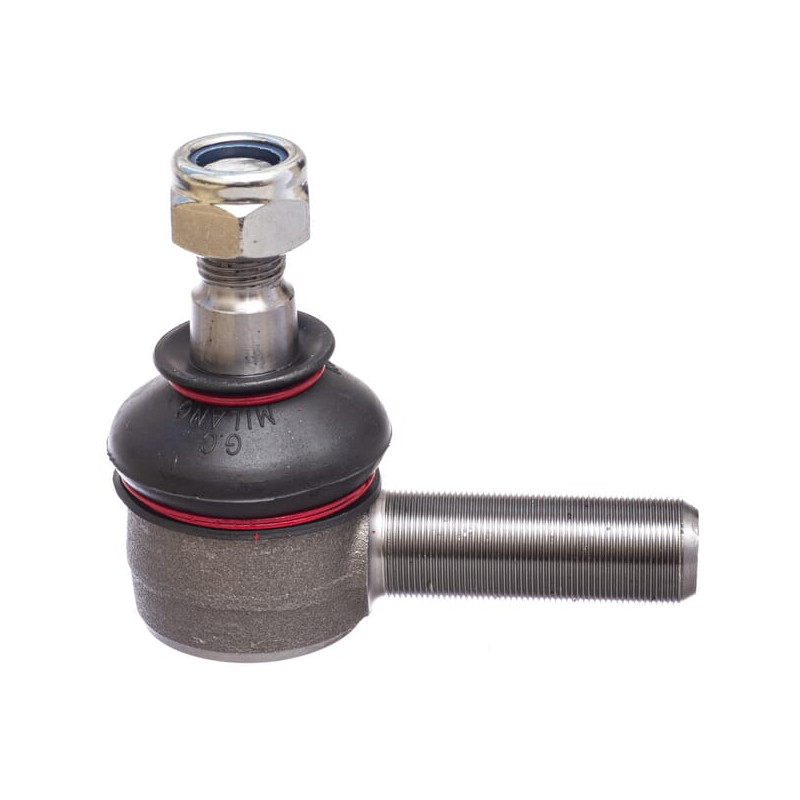

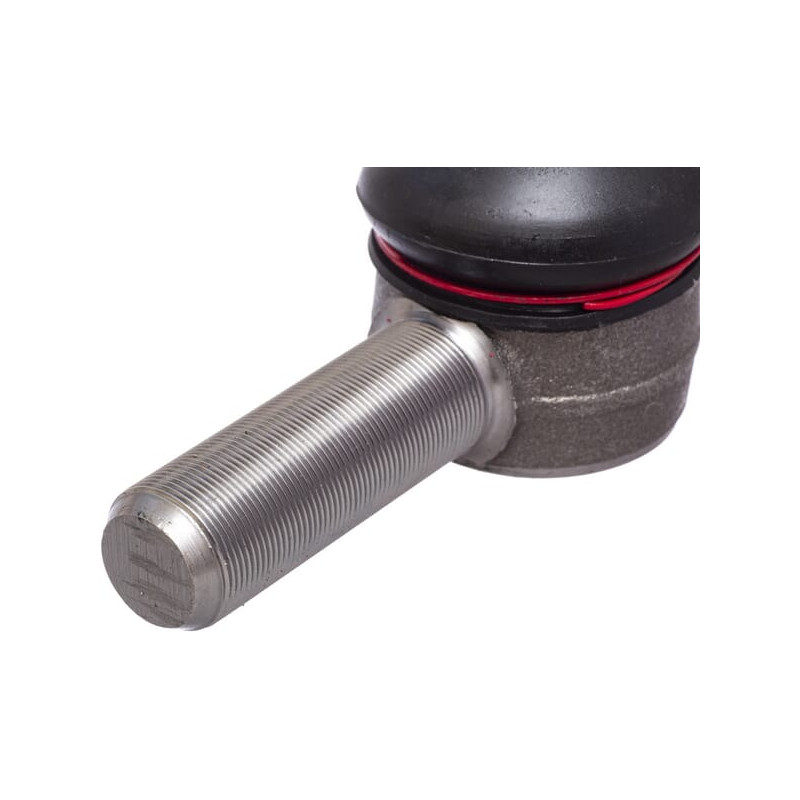

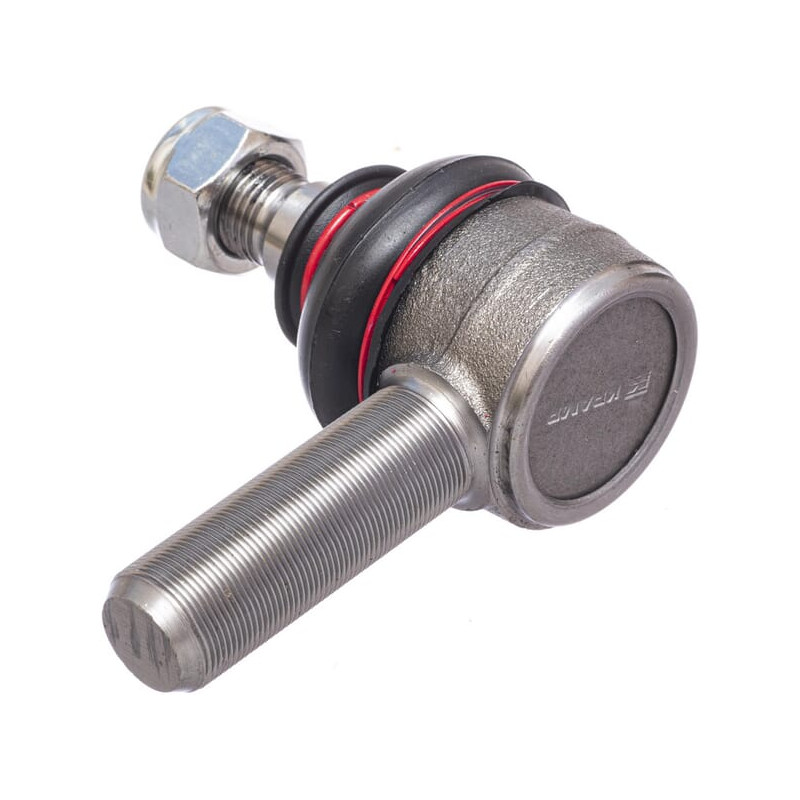

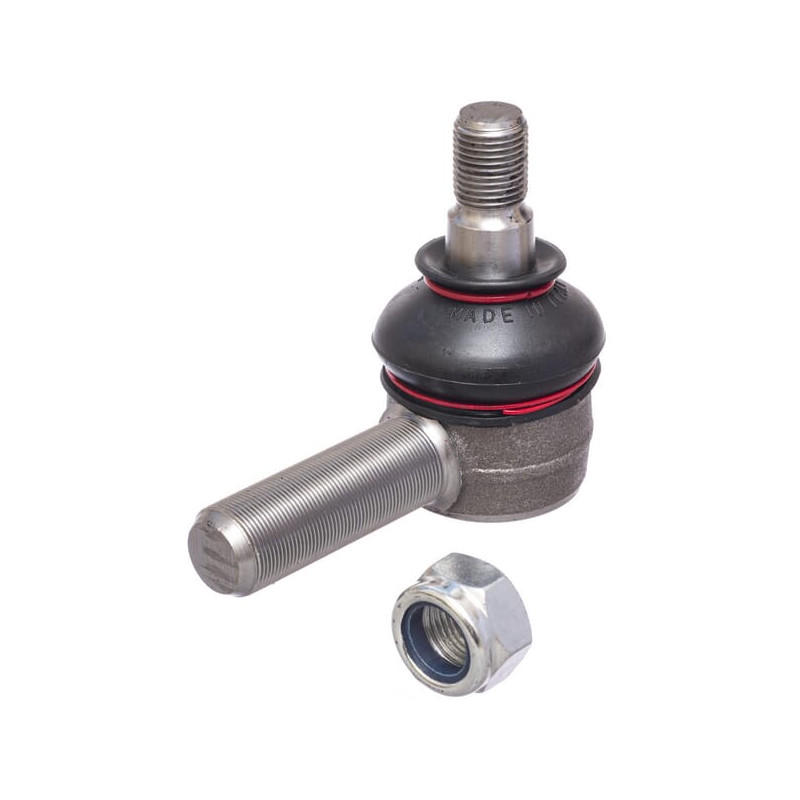

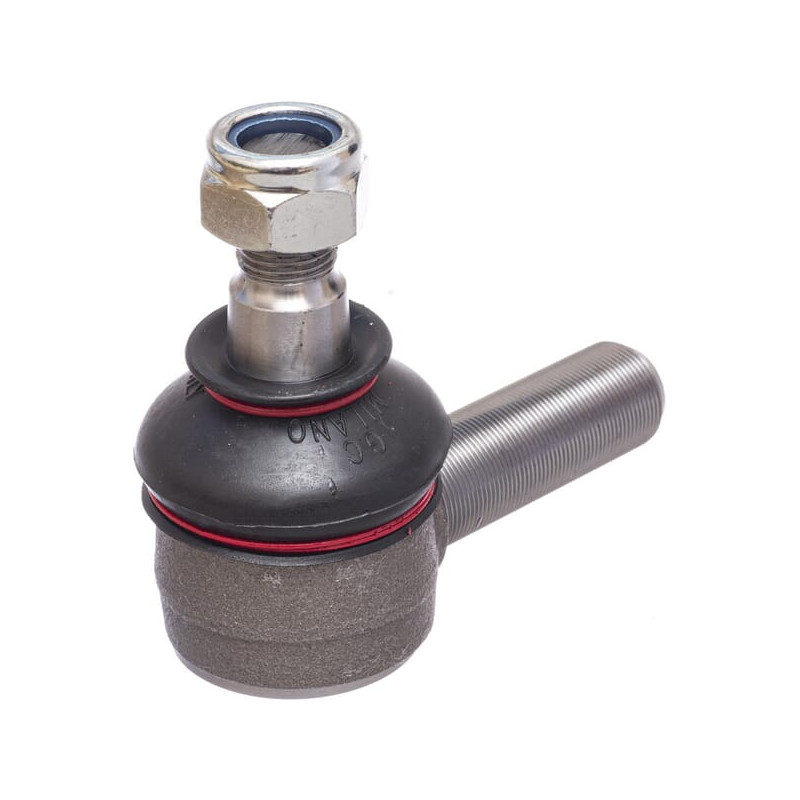

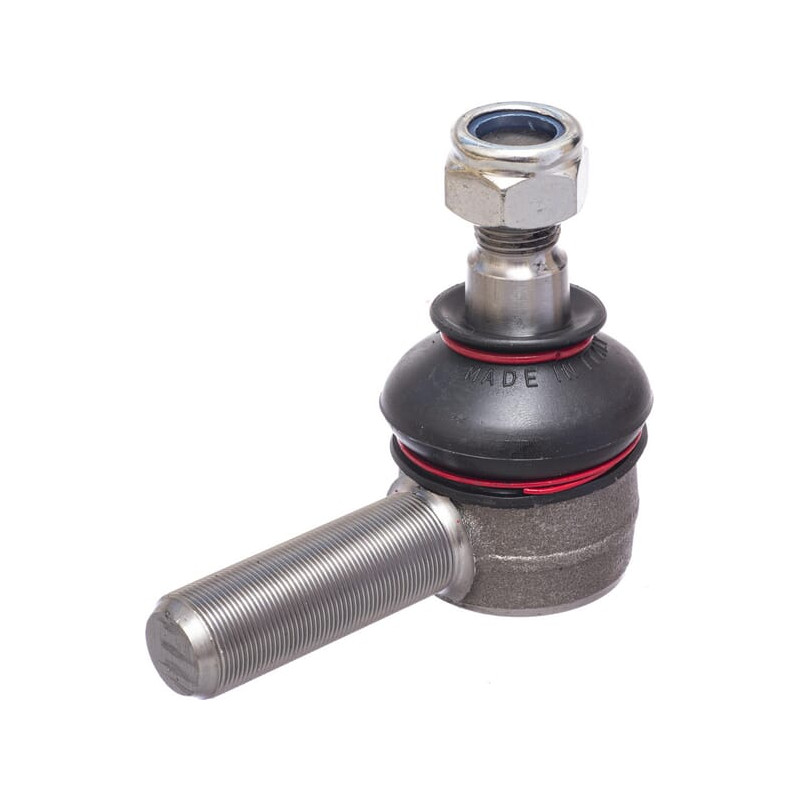

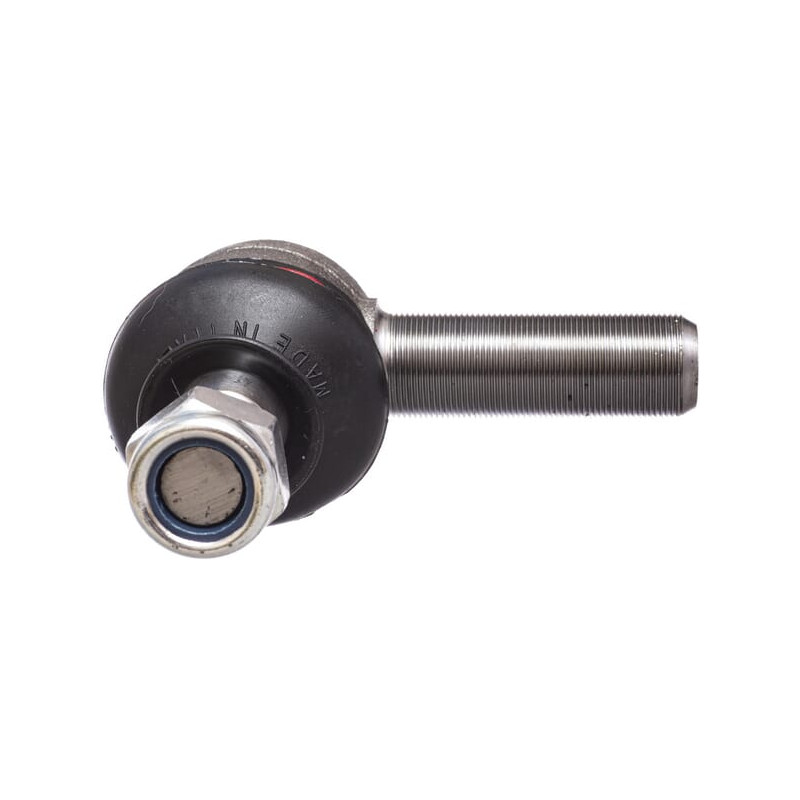

ProductomschrijvingOverview tie rods with male thread
CThread diameter - rod sideM20
Thread pitch - rod side1.00 mm
D1Min. connection diameter18.2 mm
D2Max. connection diameter20.3 mm
EEnd cone length23 mm
FThread diameter - end side (wheel) (metric)M16
FPitch of thread - end side (wheel) (mm)1.50 mm
AWorking length80 mm
Total length80 mm
Thread type - rod sideMetric
Thread direction - rod sideRight
Thread length - end side (wheel) (mm)23 mm
FThread type - end side (wheel)Metric
BHead width45 mm[
Case - IH (38),
Farmall 55A 6/20- 4WD CabSee model,
Farmall 55A 6/20- 4WD RopsSee model,
Farmall 65A 6/20- 4WD CabSee model,
Farmall 65A 6/20- 4WD RopsSee model,
Farmall 75A 6/20- 4WD CabSee model,
Farmall 75A 6/20- 4WD RopsSee model,
Farmall JX100See model,
Farmall JX110See model,
Farmall JX70See model,
Farmall JX75See model,
Farmall JX80See model,
Farmall JX90See model,
JX60See model,
JX70See model,
JX55 MaxximaSee model,
JX60 MaxximaSee model,
JX65 MaxximaSee model,
JX70 MaxximaSee model,
JX75 MaxximaSee model,
JX1060C MaxximaSee model,
JX1070C MaxximaSee model,
JX1075C MaxximaSee model,
JX1085C MaxximaSee model,
JX1095C MaxximaSee model,
JX100U MaxximaSee model,
JX1070U MaxximaSee model,
JX1080U MaxximaSee model,
JX1090U MaxximaSee model,
JX1100U MaxximaSee model,
JX70U MaxximaSee model,
JX80U MaxximaSee model,
JX90U MaxximaSee model,
Quantum 105FSee model,
Quantum 65CSee model,
Quantum 75CSee model,
Quantum 75FSee model,
Quantum 85CSee model,
Quantum 85FSee model,
Fiat (40),
500See model,
600See model,
540See model,
640See model,
450See model,
466See model,
50/66 DTSee model,
55/66 DTSee model,
566See model,
60/66 DTSee model,
65/66 DTSee model,
666See model,
70/66 DTSee model,
80/66 DTSee model,
55/76See model,
60/76See model,
70/76See model,
80/76See model,
480See model,
580See model,
680See model,
780See model,
880See model,
65/88 DTSee model,
70/88 DTSee model,
80/88 DTSee model,
100/90 DTSee model,
110/90 DTSee model,
55/90 DTSee model,
60/90 DTSee model,
65/90 DTSee model,
70/90 DTSee model,
80/90 DTSee model,
85/90 DTSee model,
90/90 DTSee model,
60/94 DTSee model,
65/94 DTSee model,
72/94 DTSee model,
82/94 DTSee model,
88/94 DTSee model,
Ford (13),
3430See model,
3930See model,
4130See model,
4630See model,
4830See model,
5030See model,
3435See model,
3935See model,
4135See model,
5640See model,
6640See model,
7740See model,
7840See model,
New Holland (131),
3930See model,
4635See model,
4835See model,
5635See model,
6635See model,
7635See model,
5640See model,
6640See model,
7740See model,
7840See model,
8240See model,
8340See model,
8260See model,
8360See model,
8560See model,
L60See model,
L65See model,
L75See model,
L85See model,
L95See model,
T4.100F T4A L/Cab (9/17 -)See model,
T4.110F T4A L/Cab (9/17 -)See model,
T4.110F T4A W/Cab (9/17 -)See model,
T4.80F T4A W/Cab (9/17 -)See model,
T4.90F T4A L/Cab (9/17 -)See model,
T4.90F T4A W/Cab (9/17 -)See model,
T4.55S Stage V 4WD Rops (6/20-)See model,
T4.55S Stage V 4WD Cab (6/20 -)See model,
T4.55S T4A (11/17 - )See model,
T4.65S Stage V 4WD Rops (6/20-)See model,
T4.65S Stage V 4WD Cab (6/20 -)See model,
T4.65S T4A (11/17 - )See model,
T4.75S Stage V 4WD Rops (6/20-)See model,
T4.75S Stage V 4WD Cab (6/20 -)See model,
T4.75S T4A (11/17 - )See model,
T4020See model,
T4020 DeluxeSee model,
T4030See model,
T4030 DeluxeSee model,
T4030FSee model,
T4030F Upgrade SpeciaL(2/12 - )See model,
T4040See model,
T4040 DeluxeSee model,
T4040FSee model,
T4040F Upgrade SpeciaL(2/12 -)See model,
T4050See model,
T4050 DeluxeSee model,
T4050FSee model,
T4050F Upgrade SpeciaL(2/12 -)See model,
T4060FSee model,
T4060F Upgrade SpeciaL(2/12 -)See model,
TD5010See model,
TD5020See model,
TD5030See model,
TD5040See model,
TD5050See model,
TD5.100 - Engine Tier 3A, (11/12)See model,
TD5.110 - Engine Tier 3A, (11/12)See model,
TD5.75 - T3A (11/12 -)See model,
TD5.80 - Engine Tier 3A, (11/12)See model,
TD5.90 - Engine Tier 3A, (11/12)See model,
TD55DSee model,
TD60DSee model,
TD60DPlusSee model,
TD65DSee model,
TD70DSee model,
TD70DPlusSee model,
TD75DSee model,
TD80DSee model,
TD80DPlusSee model,
TD85DSee model,
TD90DSee model,
TD90DPlusSee model,
TD95DSee model,
TD95DPlusSee model,
TD65F T2 (10/09 - 12/10)See model,
TD65F T3 (2015) (9/13 - 12/17)See model,
TD65F T3 (6/11 - 12/13)See model,
TD75F T2 (10/09- 12/11)See model,
TD75F T3 (2013) (9/13 -)See model,
TD75F T3 (6/11 - 12/13)See model,
TD85F T2 (10/09 - 12/12)See model,
TD85F T3 (5/11 - 12/13)See model,
TD85F T3 2013 (9/13 -)See model,
TL100See model,
TL70See model,
TL80See model,
TL90See model,
TL100ASee model,
TL70ASee model,
TL80ASee model,
TL90ASee model,
TN55See model,
TN60ASee model,
TN65See model,
TN70See model,
TN70ASee model,
TN75See model,
TN75ASee model,
TN85ASee model,
TN95ASee model,
TN55DSee model,
TN60DASee model,
TN65DSee model,
TN70DSee model,
TN70DASee model,
TN75DSee model,
TN75DASee model,
TN85DASee model,
TN95DASee model,
TN65FSee model,
TN70FSee model,
TN75FSee model,
TN75FASee model,
TN80FSee model,
TN85FASee model,
TN90FSee model,
TN95FSee model,
TN95FASee model,
TN70NASee model,
TN75NASee model,
TN95NASee model,
TN55SSee model,
TN65SSee model,
TN70SSee model,
TN75SSee model,
TS100See model,
TS110See model,
TS115See model,
TS80See model,
TS90See model,
Steyr (9),
360 CompactSee model,
370 CompactSee model,
375 CompactSee model,
485 CompactSee model,
495 CompactSee model,
4065 CompactSee model,
4075 CompactSee model,
4085 CompactSee model,
4095 CompactSee model
