Part number LA10427
EAN8719493033403
Unit Each

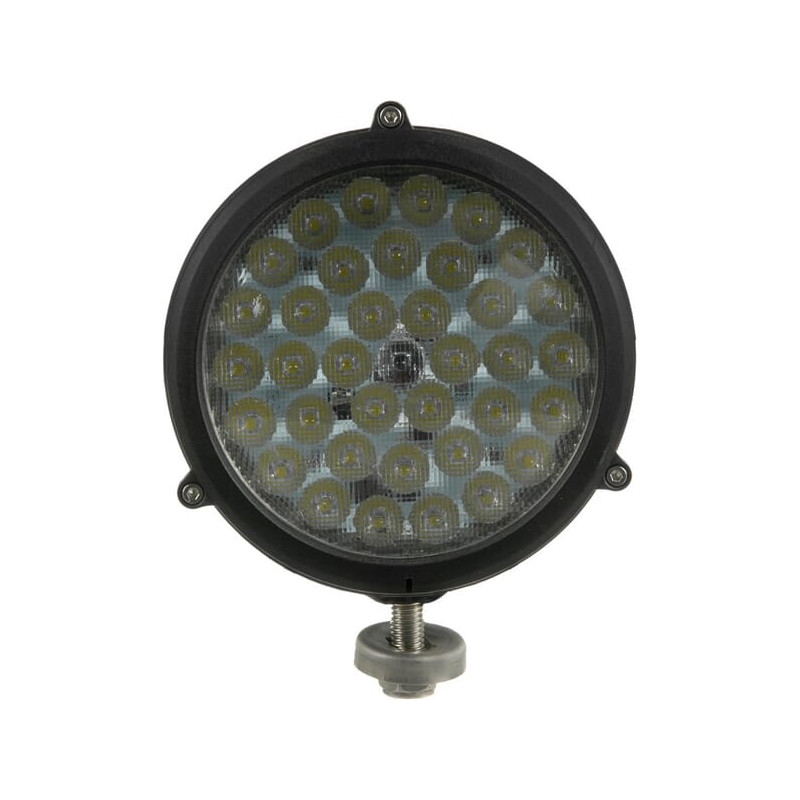

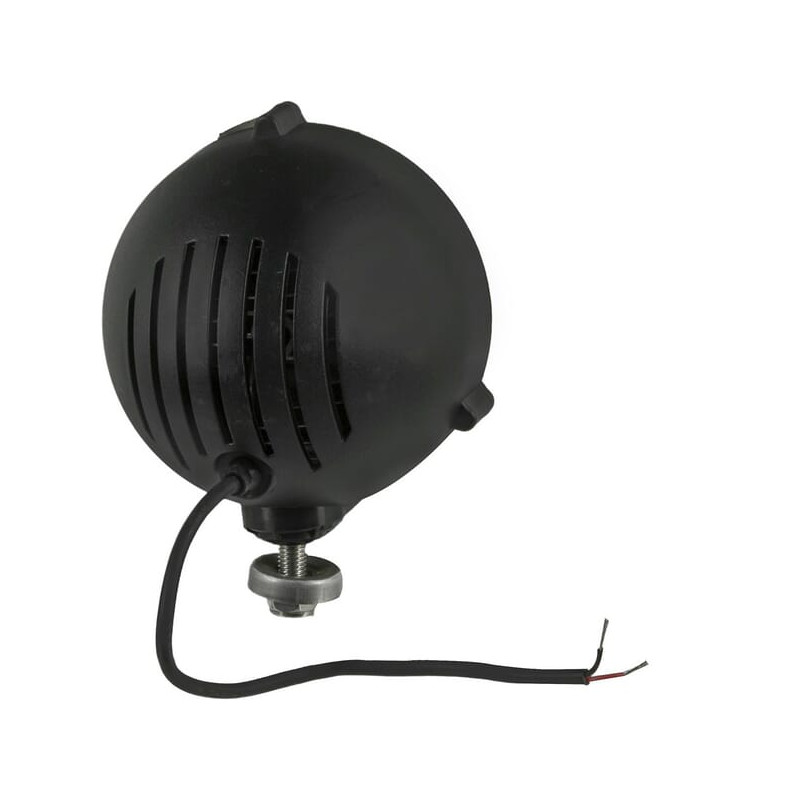

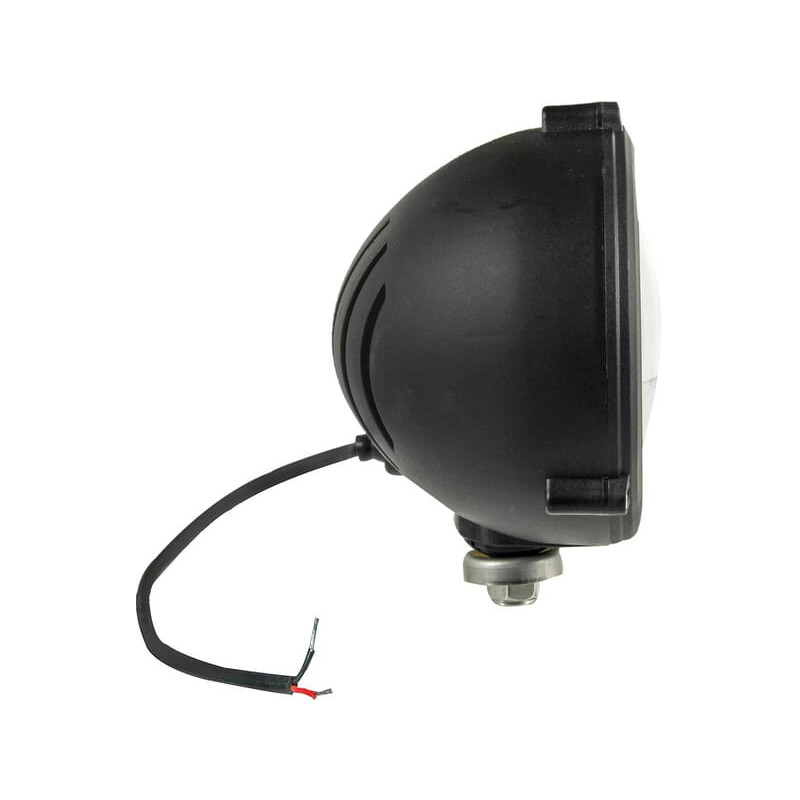

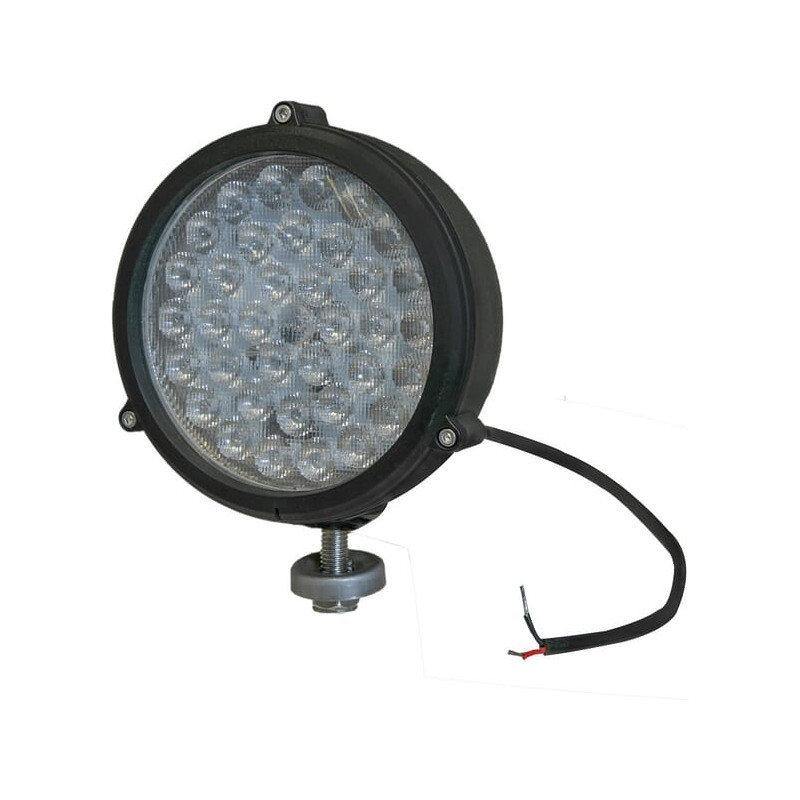

ProductomschrijvingThis work lamp illuminates your view to help improve concentration. LED lighting allows powerful machinery to be operated with great accuracy in the dark – an investment that really pays.
ProsExtensive ground illumination for use in the field Optimal ambient lighting
Product detailsLED lamps are exposed to dirt, fertilisers, road salt, acids and more. For best performance and long life, the lens and cooling fins should be cleaned regularly Meets latest LED technology Minimum 30.000 hrs of lifetime Retail friendly packaging 1 year warranty
ApplicationUniversal Off road Tractor Construction vehicle Truck
Beam angle80 °
Bulbs technologyLED
Cable length0.5 m
CISPR standard25 Class 5
Colour temperature6000 K

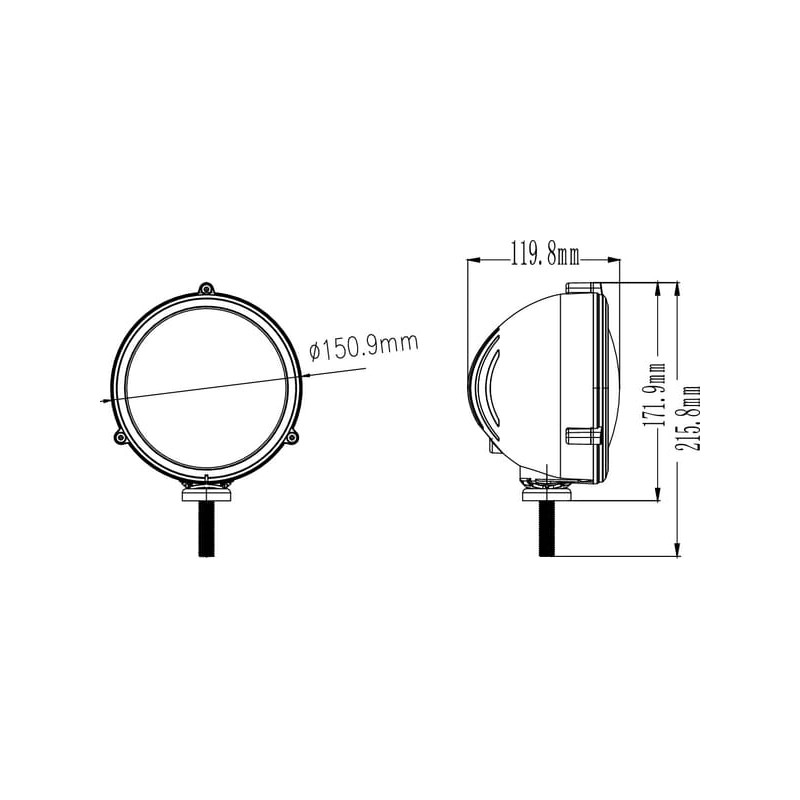

Diameter150.9 mm
FunctionWork light
Height215.8 mm
Housing materialABS
Insulation class69K
Length (depth)119.8 mm
Lens materialPolycarbonate
Light colourWhite
Light typeSpot beam
Luminous flux5040 lm
Max working temperature50 °C
Min working temperature-40 °C
Mounting holes diameter10.7 mm
Mounting positionFront
Mounting thread diameterM12
Mounting typeBolt on
Nominal voltage12 V24 V
Nominal voltage range10-30 V
Number of LEDs36
Power72 W
ShapeRound
Suitable for machine/vehicle brandJohn Deere Universal
Weight0.7 kg
Width150.9 mm
Content in sale unit1 pcs[
Case - IH (60),
2120See model,
2120 ProSee model,
2130See model,
2130 ProSee model,
2140See model,
2140 ProSee model,
2150See model,
2150 ProSee model,
Farmall 100C 06/21 HI-LO, CL 1.5 Front Axle, Low CabSee model,
Farmall 100C 06/21 HI-LO, Low CabSee model,
Farmall 100C 06/21 Mechanical, Low CabSee model,
Farmall 100C 06/21 Power Shuttle, Low CabSee model,
Farmall 110C 06/21 HI-LO, CL 1.5 Front Axle, Low CabSee model,
Farmall 110C 06/21 HI-LO, Low CabSee model,
Farmall 110C 06/21 Power Shuttle, Low CabSee model,
Farmall 120C 06/21 HI-LO, CL 1.5 Front Axle, Low CabSee model,
Farmall 120C 06/21 HI-LO, Low CabSee model,
Farmall 120C 06/21 Power Shuttle, Low CabSee model,
Farmall 55C 06/20- L/CabSee model,
Farmall 65C 06/20- L/CabSee model,
Farmall 75C 06/20- L/CabSee model,
Farmall 90C 06/21 HI-LO, Low CabSee model,
Farmall 90C 06/21 Mechanical, Low CabSee model,
Farmall 90C 06/21 Power Shuttle, Low CabSee model,
JX1060C MaxximaSee model,
JX1070C MaxximaSee model,
JX1075C MaxximaSee model,
JX1085C MaxximaSee model,
JX1095C MaxximaSee model,
PJ55See model,
PJ65See model,
PJ75See model,
Quantum 100FSee model,
Quantum 100NSee model,
Quantum 100VSee model,
Quantum 105NSee model,
Quantum 105VSee model,
Quantum 110FSee model,
Quantum 110NSee model,
Quantum 110VSee model,
Quantum 65CSee model,
Quantum 65VSee model,
Quantum 75CSee model,
Quantum 75FSee model,
Quantum 75NSee model,
Quantum 75VSee model,
Quantum 80FSee model,
Quantum 80NSee model,
Quantum 80VSee model,
Quantum 85CSee model,
Quantum 85FSee model,
Quantum 85NSee model,
Quantum 85VSee model,
Quantum 90FSee model,
Quantum 90NSee model,
Quantum 90VSee model,
Quantum 95CSee model,
Quantum 95NSee model,
Quantum 95VSee model,
Ford (3),
3435See model,
3935See model,
4135See model,
Hürlimann (69),
H351See model,
H355See model,
H356See model,
H358See model,
H360See model,
H361See model,
H362See model,
H372See model,
H470See model,
H478.4See model,
H480See model,
H490 TurboSee model,
H5110 TurboSee model,
H6136 TurboSee model,
H6170 TurboSee model,
H358.4 ClubSee model,
H468.4 ClubSee model,
H-305-XESee model,
H-306-XESee model,
H-307-XESee model,
H-355F-XESee model,
H-365F-XESee model,
H-375F-XESee model,
H100XFSee model,
H361XFSee model,
H476XFSee model,
H481XFSee model,
H491XFSee model,
H55XFSee model,
H70XFSee model,
H75XFSee model,
H90XFSee model,
Prince 30See model,
Prince 325See model,
Prince 335See model,
Prince 35See model,
Prince 40See model,
Prince 435See model,
Prince 445See model,
Prince 45See model,
Prince 50See model,
Prince 55See model,
XA56See model,
XA606See model,
XA607See model,
XA655See model,
XA656See model,
XA657See model,
XA658See model,
XA66See model,
XA76See model,
XA86See model,
XE55 TraditionSee model,
XE55F TraditionSee model,
XE70 TraditionSee model,
XE70F TraditionSee model,
XF100See model,
XF55See model,
XF70See model,
XF75See model,
XF90See model,
XN706See model,
XN707See model,
XN708See model,
XN709See model,
XS100See model,
XS70See model,
XS75See model,
XS90See model,
Lamborghini (85),
573-60NSee model,
574-60NSee model,
1706 TurboSee model,
Agile 660SSee model,
Agile 660VSee model,
Agile 770SSee model,
Agile 775VSee model,
Agile 880SSee model,
Agile 990SSee model,
Crono 55 TargetSee model,
Crono 554-50See model,
Crono 554-55FSee model,
Crono 55F TargetSee model,
Crono 564-60See model,
Crono 564-65FSee model,
Crono 574-70See model,
Crono 574-75FSee model,
Crono 70 TargetSee model,
Crono 70F TargetSee model,
Cross 574-60See model,
Cross 674-70See model,
Grimper 555See model,
Grimper 560See model,
Grimper 570See model,
Plus 100FSee model,
Plus 55FSee model,
Plus 660FSee model,
Plus 70FSee model,
Plus 75FSee model,
Plus 775FSee model,
Plus 880FSee model,
Plus 90FSee model,
Plus 990FSee model,
R1.30See model,
R1.35See model,
R1.40See model,
R1.45See model,
R1.50See model,
R1.55See model,
R1056See model,
R1256See model,
R2.56See model,
R2.66See model,
R2.76See model,
R2.86See model,
R235See model,
R513VSee model,
R613VSee model,
R483See model,
R583See model,
R653See model,
R683See model,
R684See model,
R503See model,
R603See model,
R550See model,
R660See model,
R600See model,
R700See model,
R654See model,
R784See model,
R854See model,
R955See model,
RF.100See model,
RF.55See model,
RF.70See model,
RF.75See model,
RF.90See model,
RS.100See model,
RS.70See model,
RS.75See model,
RS.90See model,
RV.100See model,
RV.70See model,
RV.75See model,
RV.90See model,
Runner 250See model,
Runner 350See model,
Runner 450See model,
Sprint 654-55See model,
Sprint 664-60See model,
Sprint 664-65See model,
Sprint 674-70See model,
Sprint 674-75See model,
Sprint 684-85See model,
Landini (95),
100 (2013)See model,
5D100 Tier 4 (2013-)See model,
5D110 Tier 4 (2013-)See model,
5D90See model,
5D90 Tier 4 (2013-)See model,
100HSee model,
110HSee model,
115HSee model,
80HSee model,
90HSee model,
5-H 100H (2009-)See model,
5-H 110H (2009-)See model,
5-H 115H (2009-)See model,
5-H 80H (2009-)See model,
5-H 90H (2009-)See model,
5-H Tier 4 100 (2013-)See model,
5-H Tier 4 110 (2013-)See model,
5-H Tier 4 115 (2013-)See model,
5-H Tier 4 90 (2013-)See model,
5865EPA2See model,
5860See model,
65FP-LP-GTP-GESee model,
6860See model,
7860See model,
8860See model,
6865EPA2See model,
7860EPA2See model,
7865EPA2See model,
8865/8860EPA2See model,
85FP-LP-GTP-GESee model,
Alpine 65 (2004-2007)See model,
Alpine 75 (2004-2007)See model,
Alpine 85 (2004-2007)See model,
CF4830See model,
CF5030See model,
CF5830See model,
CF6030See model,
CF6060-4043See model,
CF6830See model,
5560LSee model,
5560VSee model,
6060LSee model,
6060VSee model,
6560LSee model,
6560VSee model,
7560LSee model,
8560LSee model,
Landpower 115 BLU (2006-2007)See model,
Landpower 130 BLU (2006-2007)See model,
Landpower 160 BLU (2006-2007)See model,
Landpower 125 Iveco Tier 3 (2007-2012)See model,
Landpower 135 Iveco Tier 3 (2007-2012)See model,
Landpower 145 Iveco Tier 3 (2007-2012)See model,
Landpower 165 Iveco Tier 3 (2007-2012)See model,
Landpower 180 Iveco Tier 3 (2007-2012)See model,
Legend 125 TDI (2004-2006)See model,
Legend 130 BLU (2004-2006)See model,
Legend 135 TDI (2004-2006)See model,
Legend 145 TDI (2004-2006)See model,
Legend 160 BLU (2004-2006)See model,
Legend 165 TDI (2004-2006)See model,
Legend 185 TDI (2004-2006)See model,
Mistral 40See model,
Mistral 45See model,
Mistral 50See model,
105 Meccanico Tier 3 (2008)See model,
100 Meccanico Tier 3 (2008)See model,
110 (2013)See model,
110 Meccanico Tier 3 (2008)See model,
75 Meccanico Tier 3 (2008)See model,
80 Meccanico Tier 3 (2008)See model,
90 Meccanico Tier 3 (2008)See model,
105 RPS Tier 2 (2004-2012)See model,
75 RPS Tier 2 (2004-2012)See model,
85 RPS Tier 2 (2004-2012)See model,
95 RPS Tier 2 (2004-2012)See model,
100 RPS Tier 3 (2008)See model,
105 RPS Tier 3 (2008)See model,
110 RPS Tier 3 (2008)See model,
80 RPS Tier 3 (2008)See model,
90 RPS Tier 3 (2008)See model,
65V (2000-2003)See model,
75F-M (2003-2007)See model,
75FP-LP-GTP-GESee model,
80F-M (2011-2018)See model,
85F-M-C (2003-2007)See model,
90F-M-C (2011-2018)See model,
95F-M-C (2003-2007)See model,
100F-M-C (2011-2018)See model,
105F-M-C (2003-2007)See model,
105F-M-C (2011-2018)See model,
90 C-F-L (2000-2003)See model,
60V (2000-2003)See model,
70V (2000-2003)See model,
80V (2000-2003)See model,
Massey Ferguson (29),
3425See model,
3435See model,
3445See model,
3455See model,
3425CFSee model,
3425CFMSee model,
3435CSee model,
3435CFSee model,
3435CFMSee model,
3445CSee model,
3445CFSee model,
3445CFMSee model,
3455CSee model,
3455CFSee model,
3455CFMSee model,
353See model,
363See model,
373See model,
383See model,
393See model,
354See model,
364See model,
374See model,
384See model,
394See model,
1007See model,
377See model,
387See model,
397See model,
New Holland (76),
T4.105 - Engine Tier 4ASee model,
T4.115 - Engine Tier 4ASee model,
T4.55See model,
T4.65See model,
T4.75See model,
T4.75 - Engine Tier 4ASee model,
T4.85 - Engine Tier 4ASee model,
T4.95 - Engine Tier 4ASee model,
T4020See model,
T4020 DeluxeSee model,
T4020VSee model,
T4030See model,
T4030 DeluxeSee model,
T4030FSee model,
T4030NSee model,
T4030VSee model,
T4040See model,
T4040 DeluxeSee model,
T4040FSee model,
T4040NSee model,
T4040VSee model,
T4050See model,
T4050 DeluxeSee model,
T4050FSee model,
T4050NSee model,
T4050VSee model,
T4060FSee model,
T4060NSee model,
T4060VSee model,
TN55See model,
TN60ASee model,
TN65See model,
TN70See model,
TN70ASee model,
TN75See model,
TN75ASee model,
TN85ASee model,
TN95ASee model,
TN55DSee model,
TN60DASee model,
TN65DSee model,
TN70DSee model,
TN70DASee model,
TN75DSee model,
TN75DASee model,
TN85DASee model,
TN95DASee model,
TN65FSee model,
TN70FSee model,
TN75FSee model,
TN75FASee model,
TN80FSee model,
TN85FASee model,
TN90FSee model,
TN95FSee model,
TN95FASee model,
TN65NSee model,
TN70NASee model,
TN75NSee model,
TN75NASee model,
TN95NASee model,
TN55SSee model,
TN60SASee model,
TN65SSee model,
TN70SSee model,
TN70SASee model,
TN75SSee model,
TN75SASee model,
TN85SASee model,
TN55VSee model,
TN60VASee model,
TN65VSee model,
TN70VASee model,
TN75VSee model,
TN75VASee model,
TN95VASee model,
Same (101),
Argon 50See model,
Argon 55 ClassicSee model,
Argon 55FSee model,
Argon 55F ClassicSee model,
Argon 60See model,
Argon 65FSee model,
Argon 70See model,
Argon 70 ClassicSee model,
Argon 70F ClassicSee model,
Argon 75FSee model,
Aster 60See model,
Aster 70 TurboSee model,
Buffalo 120See model,
Centauro 60See model,
Centauro 70 ExportSee model,
Centauro 70 SpecialSee model,
Centurion 75 ExportSee model,
Centurion 75 SpecialSee model,
Condor 55 SynchroSee model,
Corsaro 70 SynchroSee model,
Delfino 35See model,
Dorado 55See model,
Dorado 56See model,
Dorado 60See model,
Dorado 65See model,
Dorado 66See model,
Dorado 70See model,
Dorado 75See model,
Dorado 76See model,
Dorado 85See model,
Dorado 86See model,
Dorado F100See model,
Dorado F55See model,
Dorado F70See model,
Dorado F75See model,
Dorado F90See model,
Dorado S100See model,
Dorado S70See model,
Dorado S75See model,
Dorado S90See model,
Dorado V100See model,
Dorado V70See model,
Dorado V75See model,
DoradoV 90See model,
Drago 100See model,
Drago 120See model,
Explorer I 55See model,
Explorer I 60See model,
Explorer I 65See model,
Explorer I 70See model,
Frutteto I 60See model,
Frutteto I 75See model,
Frutteto II 100See model,
Frutteto II 55See model,
Frutteto II 60See model,
Frutteto II 70See model,
Frutteto II 75See model,
Frutteto II 85See model,
Frutteto II 90See model,
Galaxy 170See model,
Golden 60See model,
Golden 60VSee model,
Golden 65See model,
Golden 75See model,
Golden 75VSee model,
Golden 85See model,
Jaguar 100 ExportSee model,
Jaguar 95 ExportSee model,
Leopard 85See model,
Leopard 90 TurboSee model,
Mercury 85See model,
Minitaurus 60See model,
Panther 90See model,
Panther 95See model,
Ranger 45See model,
Rock 55See model,
Rock 60See model,
Rock 70See model,
Saturno 80 SynchroSee model,
SirenettaSee model,
Solar 50See model,
Solar 60See model,
Solaris 25See model,
Solaris 30See model,
Solaris 35 from 01 / 2005See model,
Solaris 35 until 12 / 2004See model,
Solaris 40See model,
Solaris 45 from 01 / 2005See model,
Solaris 45 until 12 / 2004See model,
Solaris 50See model,
Solaris 55See model,
Taurus 60 ExportSee model,
Tiger 100See model,
Tiger Six 105 ExportSee model,
Vigneron 35See model,
Vigneron 45See model,
Vigneron 50See model,
Vigneron 60See model,
Vigneron 62See model,
Vigneron 70See model,
Vigneron 75See model
