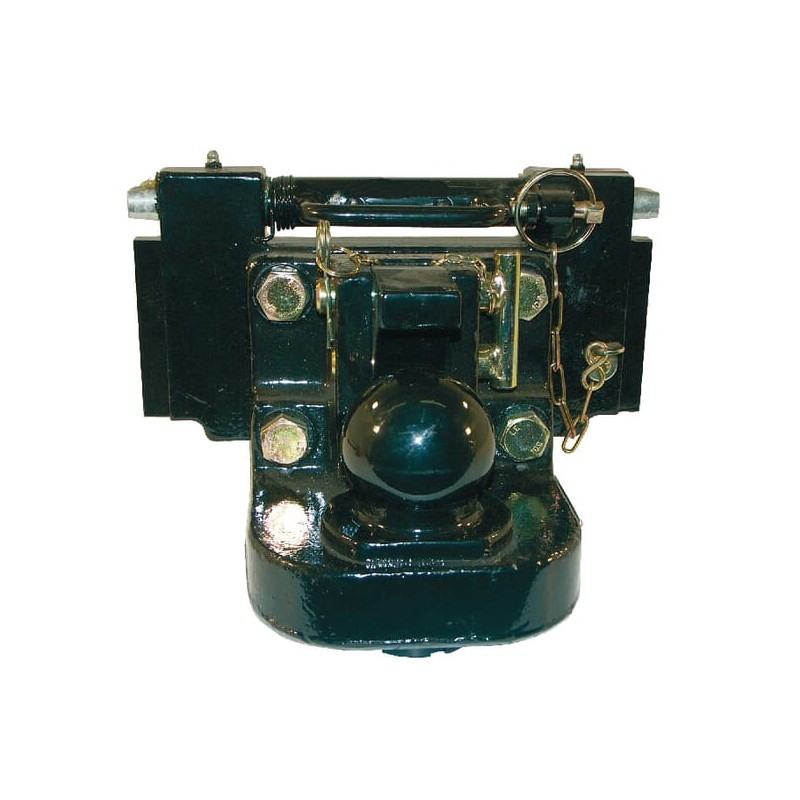

Part number HS1250K
EAN
Unit Each
Application rangeCouplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
PropertiesOptional retrofit with forced steering (right, left, both sides)
BenefitsOptimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life
Track width320 mm
Pull pin diameter80 mm
Max. permissible D-Value92 kN
Max. permissible vertical load3500 kg
ColourBlack
TypeK80® Manual
Thread diameterM18
Min. mounting holes distance80 mm
Max. mounting holes distance140 mm
ManufacturerSauermann[
Case - IH (36),
Series Maxxum CVT/CVX,
Maxxum 110CVT - Engine Tier 4A, 7/13-12/15,
Maxxum 110CVX - Engine Tier 4A, 7/13-12/15,
Maxxum 115CVT - Engine Tier 4B, >3/15,
Maxxum 115CVX - Engine Tier 4B, >7/16,
Maxxum 120CVT - Engine Tier 4A, 7/13-12/15,
Maxxum 120CVX - Engine Tier 4A, 7/13-12/15,
Maxxum 125CVT - Engine Tier 4B, >3/15,
Maxxum 125CVX - Engine Tier 4B, >7/16,
Maxxum 130CVT - Engine Tier 4A, 7/13-12/15,
Maxxum 130CVX - Engine Tier 4A, 7/13-12/15,
Maxxum 135CVT - Engine Tier 4B, >3/15,
Maxxum 135CVX - Engine Tier 4B, >7/16,
Maxxum 145CVT - Engine Tier 4B, >3/15,
Maxxum 145CVX - Engine Tier 4B, >7/16,
Series Maxxum EP Efficient Power Tier 4A,
Maxxum 110 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 115 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 120 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 125 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 130 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Maxxum 140 EP Efficient Power - Engine Tier 4A 2/12-12/15,
Series Maxxum EP MultiController Tier 4A,
Maxxum 110 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 115 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 120 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 125 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 130 MultiController - Engine Tier 4A 2/12-12/15,
Maxxum 140 MultiController - Engine Tier 4A 2/12-12/15,
Series Maxxum MultiController Tier 4B,
Maxxum 115 MultiController - Engine Tier 4B, >3/15,
Maxxum 125 MultiController - Engine Tier 4B, >3/15,
Maxxum 135 MultiController - Engine Tier 4B, >3/15,
Maxxum 145 MultiController - Engine Tier 4B, >3/15,
Maxxum 150 MultiController - Engine Tier 4B, >3/15,
Series Maxxum Tier 4B,
Maxxum 115 - Engine Tier 4B, >3/15,
Maxxum 125 - Engine Tier 4B, >3/15,
Maxxum 135 - Engine Tier 4B, >3/15,
Maxxum 145 - Engine Tier 4B, >3/15,
Maxxum 150 - Engine Tier 4B, >3/15,
New Holland (29),
Series T4 / T4 Powerstar,
T4.105 - Engine Tier 4A,
T4.115 - Engine Tier 4A,
T4.85 - Engine Tier 4A,
T4.95 - Engine Tier 4A,
Series T5 - Tier 4A / 4B,
T5.100 - Engine Tier 4B,
T5.110 - Engine Tier 4B,
T5.120 - Engine Tier 4B,
Series T6.XXX Auto Command Tier 4B / Stage V,
T6.140 - Engine TIER 4B (7/13-12/15),
T6.145 - Engine TIER 4B (3/15-),
T6.145 - Engine TIER 4B (7/13-),
T6.150 - Engine TIER 4B (7/13-12/15),
T6.155 - Engine TIER 4B (3/15-),
T6.155 - Engine TIER 4B (7/13-),
T6.160 - Engine TIER 4B (7/13-12/15),
T6.165 - Engine TIER 4B (3/15-),
T6.165 - Engine TIER 4B (7/13-),
T6.175 - Engine TIER 4B (3/15-),
T6.175 - Engine TIER 4B (7/13-),
Series T7.XXX- AutoCommand Tier 4A / 4B / Stage V,
T7.175 - Engine Tier 4B,
T7.190 - Engine Tier 4B,
T7.210 - Engine Tier 4B,
T7.225 - Engine Tier 4B,
T7.230 - Engine Tier 4B,
T7.260 - Engine Tier 4B,
T7.270 - Engine Tier 4B,
Series TD-5,
TD5.105 - Engine Tier 4A, (10/14),
TD5.115 - Engine Tier 4A, (10/14),
TD5.85 - Engine Tier 4A, (10/14),
TD5.95 - Engine Tier 4A, (10/14),
Steyr (20),
Series Kompakt Ecotech Tier 4,
4075,
4075 HI-LO,
4085 - Engine >3/2014,
4085 HI-LO - Engine >3/2014,
4095,
4095 HI-LO,
4105,
4105 HI-LO,
4115,
Series 6000 CVT,
6165CVT,
6170CVT,
6180CVT,
6200CVT,
6210CVT,
6225CVT,
6230CVT,
Series CVT 05-2015,
6185 Tier 4B - Engine >05/2015,
6200 Tier 4B - Engine >05/2015,
6220 Tier 4B,
6240 Tier 4B - Engine >05/2015
