Part number NV12GASM
EAN8716106786022
Unit Each
ProsSimple coupling with very light spring in coupling sleeve
Product detailsCannot be connected under pressure Mineral oil-based fluids Axial actuation of locking sleeve to rear (single acting) Induction hardened stressed parts No breakaway function Large number of latching balls
ShapeStraight - 2 connection sides
Connection no 1 typeQuick coupling
Connection no 1 type - male/femaleMale
Connection no 1 diameter0.81 Inch

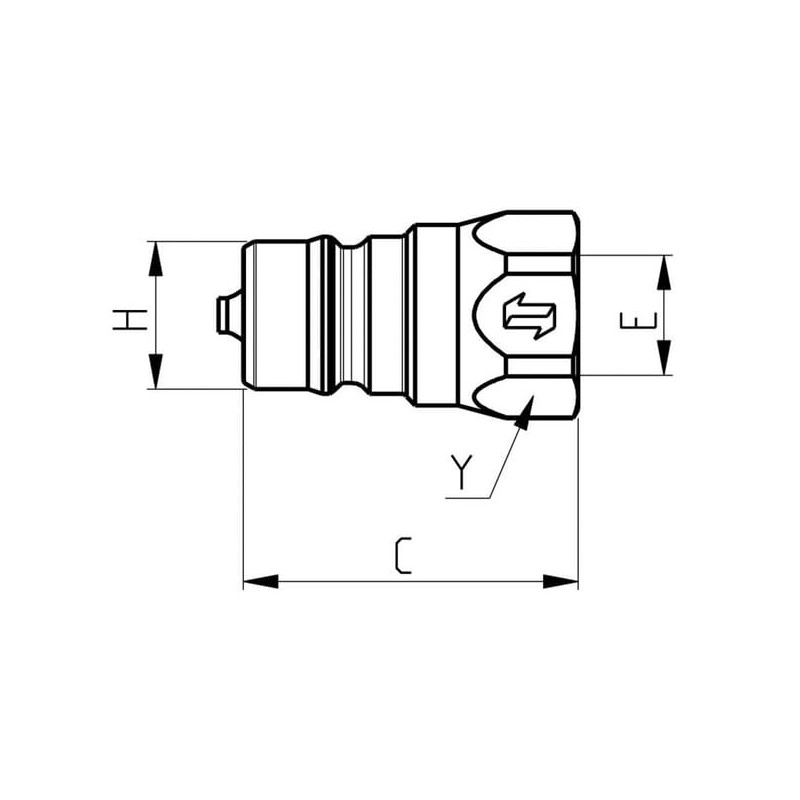

HConnection no 1 diameter20.5 mm
Connection no 1 thread diameter1/2 Inch
Connection no 1 thread typeBSP
Connection no 1 hex size1.06 Inch
YConnection no 1 hex size27 mm
Size codeBG 3
Body size1/2 Inch
Body size12.5 mm
Connection 2, typeThread
Connection 2, type - male/femaleFemale
EConnection 2, thread diameter1/2 Inch
Connection 2, threads per inch14
Connection 2, thread typeBSPP
Connectable under pressureNo
ISO standard7241-1-A

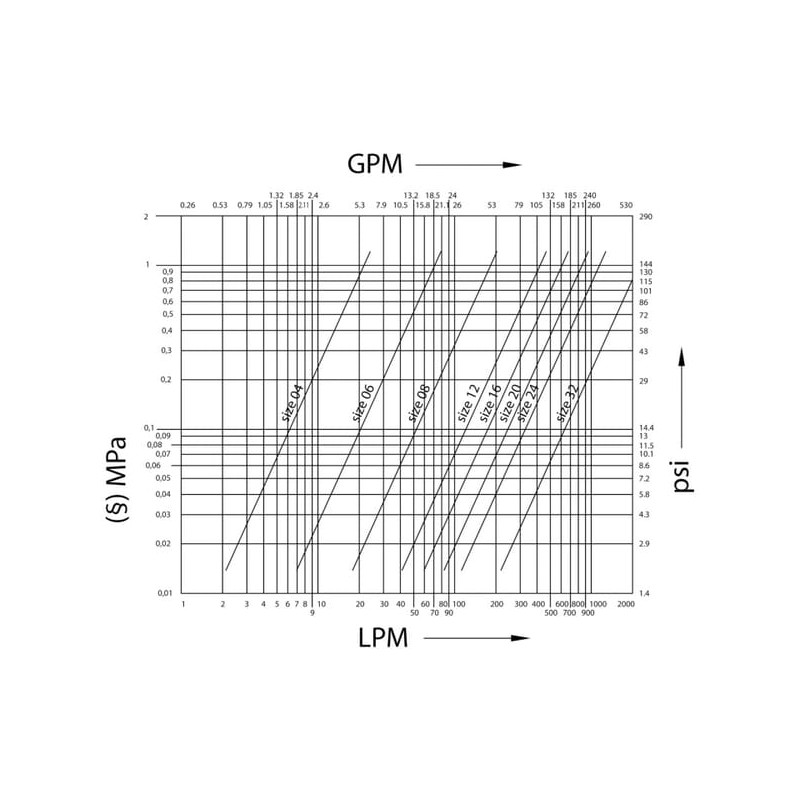

Flow rate at 2 bar75 l/min
Outside diameter1.18 Inch
Outside diameter30 mm
CLength44 mm
Total length1.73 Inch

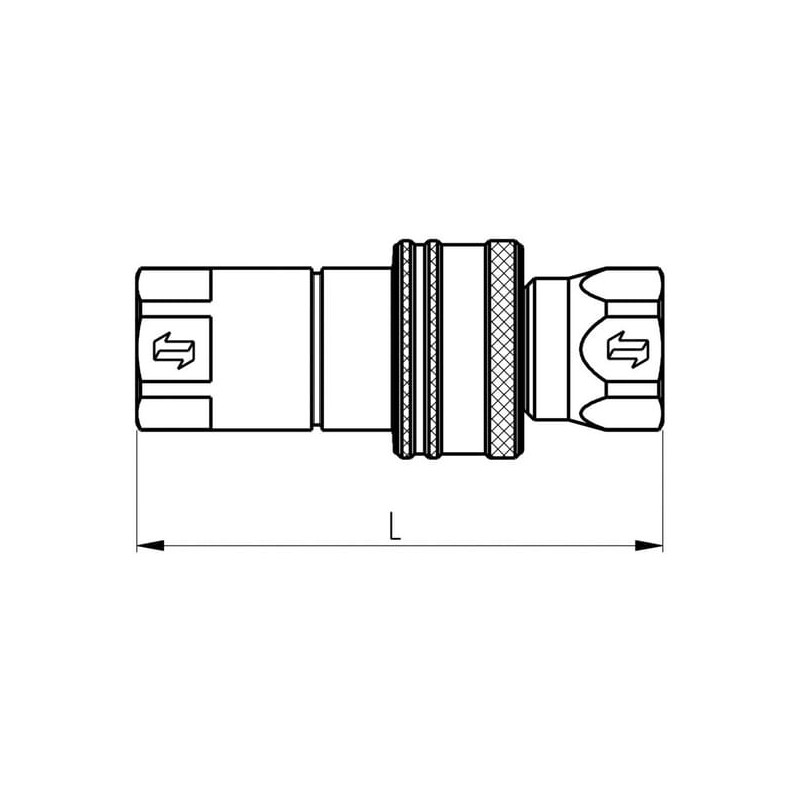

LTotal length88 mm
MaterialSteel
Surface treatmentChromium-plated
Working pressure300 BAR
Max working temperature125 °C
Min. working temperature-25 °C
Quick connection locking typeRadial balls
Quick connection working typeSleeve retraction
Quick disconnection working typeSleeve retraction
Seal materialNitrile rubber [NBR]
SeriesNV
Valve typePoppet
Weight81.2 g[
