Part number TCVNNE357023022
EAN8719493237535
Unit Each

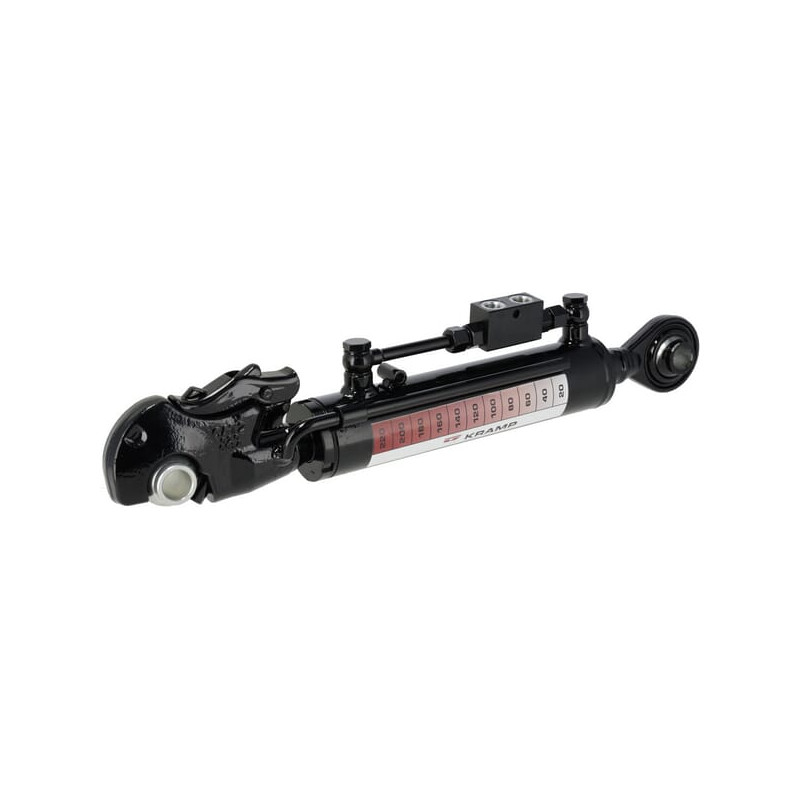

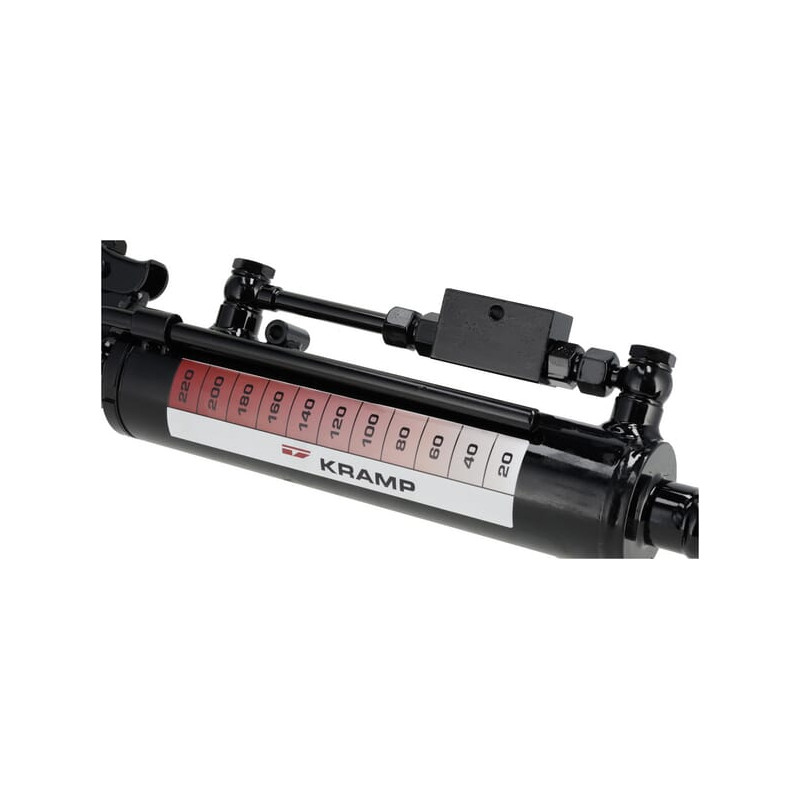

ProsEasy reading of the setting Top link cylinder maintains its position

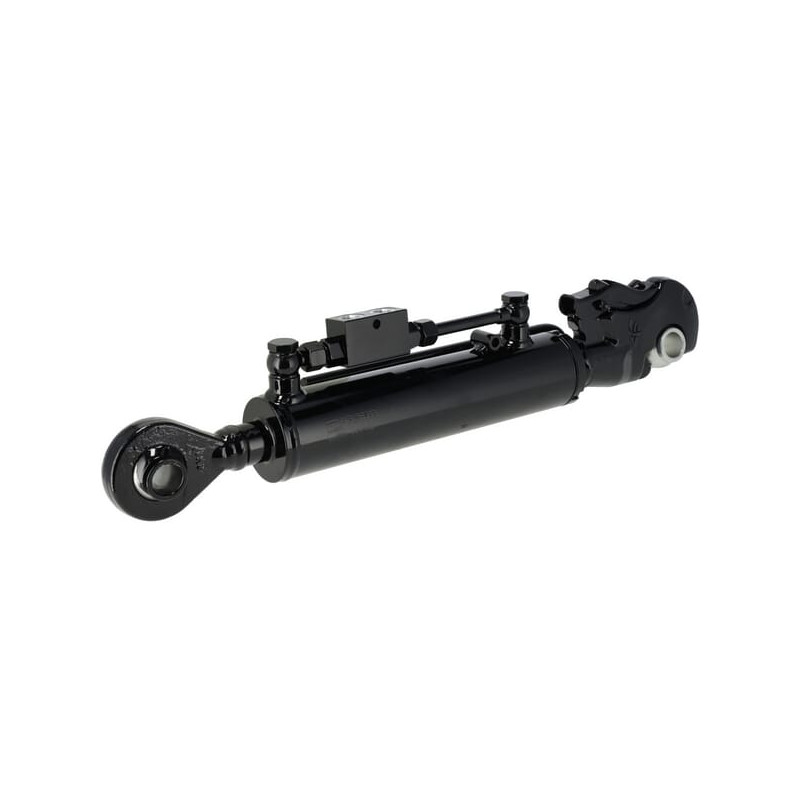

Product detailsCat. 1, 2 and 3 three-point link With length indicator Type TCVNN is equipped with a controlled check valve Type TCVNNE is equipped with a controlled check valve and an extended end cap Maximum radial load: 10% of the axial load Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Purity of medium: ISO 4406 22/20/17 or NAS 9
IncludesCylinder Operated check valve Ball Actuation cable
Mounting type - rod connectionHook
Mounting type - cylinder connectionBearing
Top link category - rod connection2
Top link category - cylinder connection2

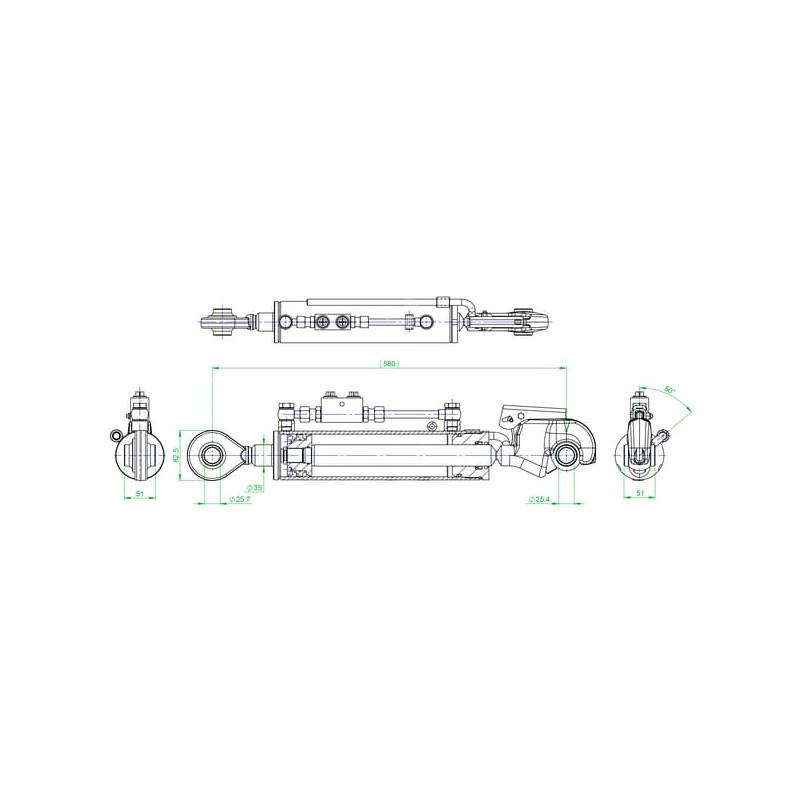

Min. length580 mm
AMax. length810 mm
Stroke230 mm
Rod diameter35 mm
Cylinder bore diameter70 mm
EOutside diameter80 mm
Mounting hole diameter - rod connection25.7 mm
Mounting hole diameter - cylinder connection25.7 mm
Mounting thread type - cylinder connectionBSP
CMounting thread diameter - cylinder connection3/8 Inch
Mounting thread type - rod connectionBSP
Mounting thread diameter - rod connection3/8 Inch
DOil connections distance271.5 mm
Rod materialSteel 20MnV6
Rod surface treatmentChromated
Cylinder materialSteel ST52
Nominal pressure200 BAR
Max. working pressure250 BAR
Max. push capacity at 200 bar7.7 t
Max. pull capacity at 200 bar2.5 t
Max. piston speed0.1 m/s
ColourBlack
RAL colour code9005[
