Part number TEVNNE306018822
EAN8719493237580
Unit Each

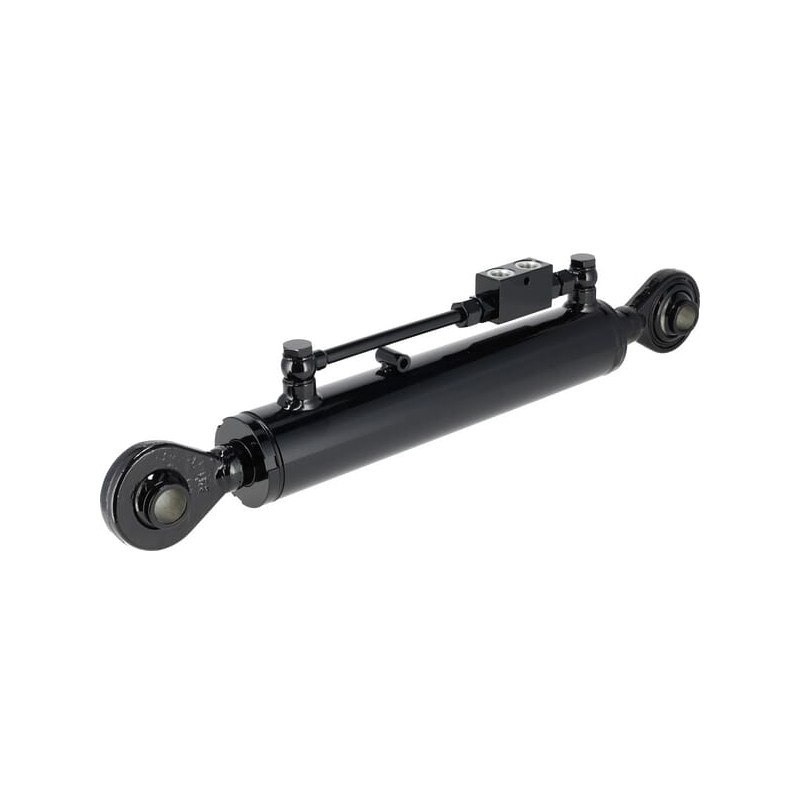

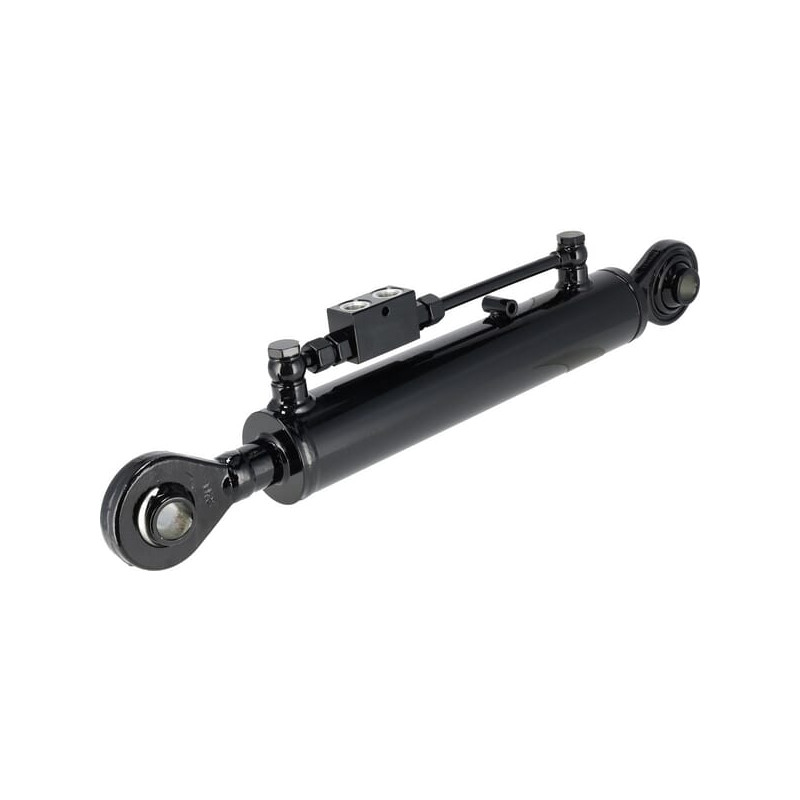

Product detailsCategory 1 and 2 three-point connection Type TENNN is without controlled check valve Type TCVNN is with controlled check valve Type TEVNNE is equipped with a controlled check valve and an extended end cap Maximum radial load: 10% of the axial load Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Purity of medium: ISO 4406 22/20/17 or NAS 9
Mounting type - rod connectionBearing
Mounting type - cylinder connectionBearing
Top link category - rod connection2
Top link category - cylinder connection2

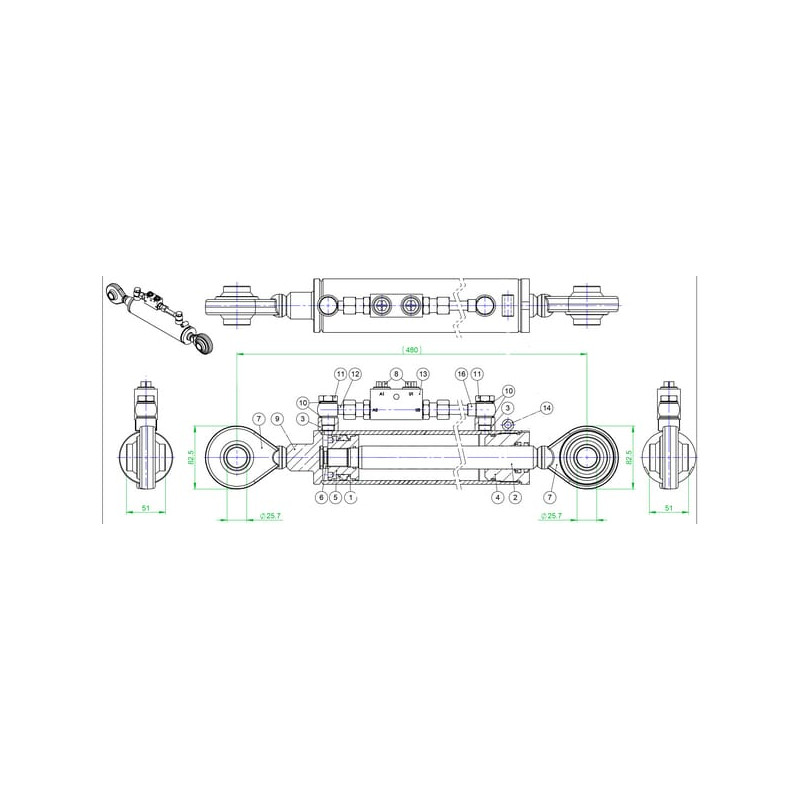

Min. length480 mm
AMax. length668 mm
Stroke188 mm
Rod diameter30 mm
Cylinder bore diameter60 mm
EOutside diameter70 mm
Mounting hole diameter - rod connection25.7 mm
Mounting hole diameter - cylinder connection25.7 mm
Mounting thread type - cylinder connectionBSP
CMounting thread diameter - cylinder connection3/8 Inch
Mounting thread type - rod connectionBSP
Mounting thread diameter - rod connection3/8 Inch
DOil connections distance228 mm
Rod materialSteel 20MnV6
Rod surface treatmentChromated
Cylinder materialSteel ST52
Nominal pressure200 BAR
Max. working pressure250 BAR
Max. push capacity at 200 bar5.6 t
Max. pull capacity at 200 bar4.2 t
Max. piston speed0.1 m/s
ColourBlack
RAL colour code9005[
DEUTZ-FAHR (31),
Agroclimber 105 Sn.->D25Y974WC1001See model,
Agroclimber F100 M-N Sn.->D25Y904WF2E1001See model,
Agroclimber F90 M-N-C Sn.->D25Y834WF2E1001See model,
Agroclimber V70 C-N Sn.->D15Y673W*1001See model,
Agroclimber V80 N-M-LSn.->D15Y724W*1001See model,
Agroclimber 400F Sn.-> ZKDU611*T0TD02001See model,
Agroclimber 410F Sn.-> ZKDR771*C0TD02001See model,
Agrolux 57 Sn.->D09P523WVT1001See model,
Agrolux 60 Sn.->D10P603AVT1001/3001See model,
Agrolux 60E Sn.->D10S553WX1E1001See model,
Agrolux 67 Sn.->D09P673WVT1001See model,
Agroplus F100 Sn.->D10F904WVT2E3001See model,
Agroplus F100 Sn.->D10F904WVT2E6001See model,
Agroplus F70 Sn.->D10F673WVT2E3001See model,
Agroplus F70 Sn.->D10F673WVT2E6001See model,
Agroplus F75 Sn.->D10F704WVT2E3001See model,
Agroplus F75 Sn.->D10F704WVT2E6001See model,
Agroplus F90 Sn.->D10F834WVT2E3001See model,
Agroplus F90 Sn.->D10F834WVT2E6001See model,
Agroplus 320F Sn.-> ZKDP2402W0TD05001 / 15001See model,
Agroplus 320F Sn.-> ZKDP3602W0TD01001 / 10001See model,
Agroplus 410F Sn.-> ZKDP2802W0TD05001 / 15001See model,
Agroplus 410F Sn.-> ZKDP4002W0TD01001 / 10001See model,
Agroplus 420F Sn.-> ZKDP3202W0TD05001 / 15001See model,
Agroplus 420F Sn.-> ZKDP4402W0TD01001 / 10001See model,
Agroplus 430F Sn.-> ZKDU7702W0TD10001See model,
Agroplus 430F Sn.-> ZKDU8102W0TD15001See model,
Agroplus 65F Keyline Sn.-> NNZDR702W0BD80001See model,
Agroplus 65F Keyline Sn.-> ZKDCK902W0RD10001See model,
Agroplus F65 Keyline Sn.-> 6001See model,
Agroplus F65 Keyline Sn.-> 80001See model,
Lamborghini (33),
C.100See model,
C.110See model,
C.90See model,
CV. 80 C-N-M-LSee model,
CV.80N-M-LSee model,
Crono 55 TargetSee model,
Crono 554-50See model,
Crono 554-55FSee model,
Crono 55F TargetSee model,
Crono 564-60See model,
Crono 564-65FSee model,
Crono 574-70See model,
Crono 574-75FSee model,
Crono 70 TargetSee model,
Crono 70F TargetSee model,
Plus 880FSee model,
Plus 990FSee model,
RF.100See model,
RF.55See model,
RF.70See model,
RF.75See model,
RF.90See model,
RS.100See model,
RS.70See model,
RS.75See model,
RS.90See model,
Sprint 664-60See model,
Sprint 674-70See model,
Strike C115See model,
Strike CF100See model,
Strike CF90See model,
Strike CM105See model,
Strike CM115See model,
Landini (6),
Advantage 60See model,
Advantage 65See model,
Rex 100See model,
Rex 70See model,
Rex 80See model,
Rex 90See model,
Massey Ferguson (2),
3435CSee model,
3455CSee model,
McCormick (6),
F100See model,
F100-GE-XL FTop Restyling (2010)See model,
F110-GE-XL FTop Restyling (2010)See model,
F120-GE-XL FTop Restyling (2010)See model,
F70F-GE F/XL Techno Tier 2 (2003-2008)See model,
F90See model,
New Holland (1),
TN60VASee model,
Same (11),
Argon 50See model,
Argon 60See model,
Argon 70See model,
Golden 65See model,
Golden 75See model,
Golden 85See model,
Krypton 100See model,
Krypton 80See model,
Krypton 90See model,
Tiger 60See model,
Tiger 70See model
