Part number SHP257KR
EAN8719607186438
Unit Each

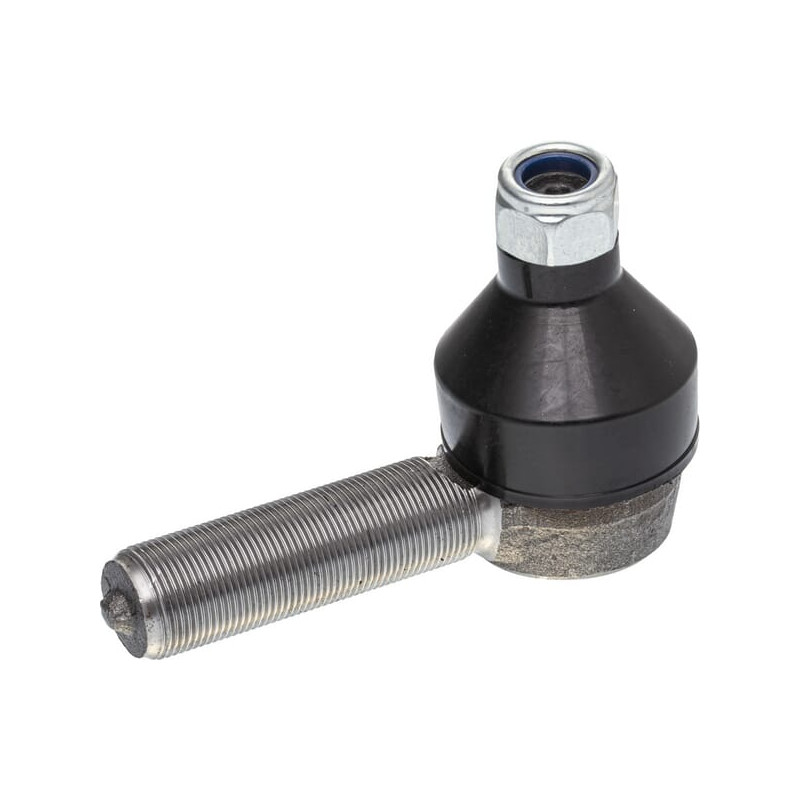

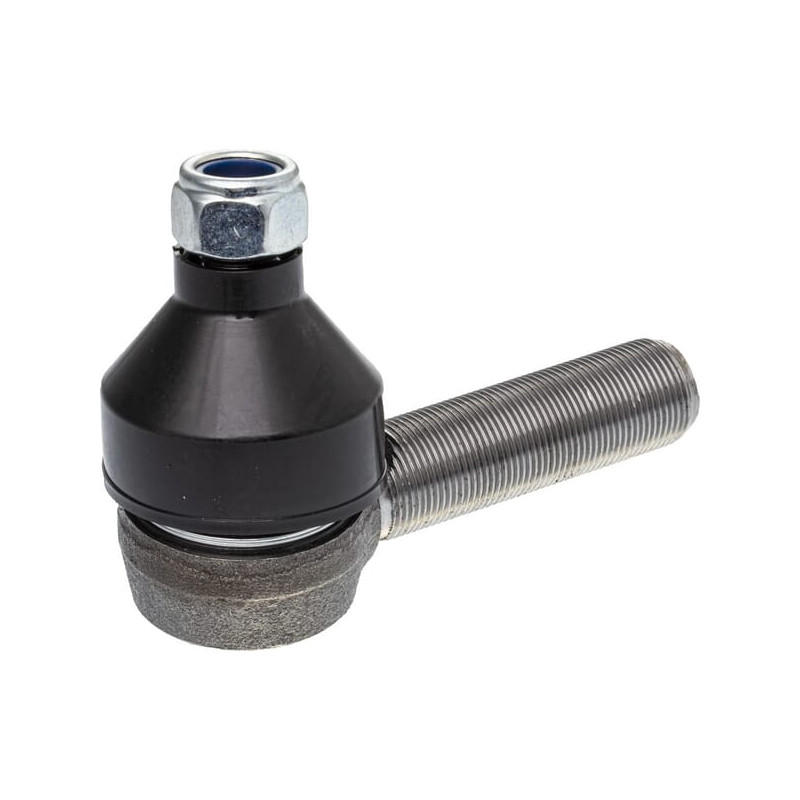

ProductomschrijvingOverview tie rods with male thread

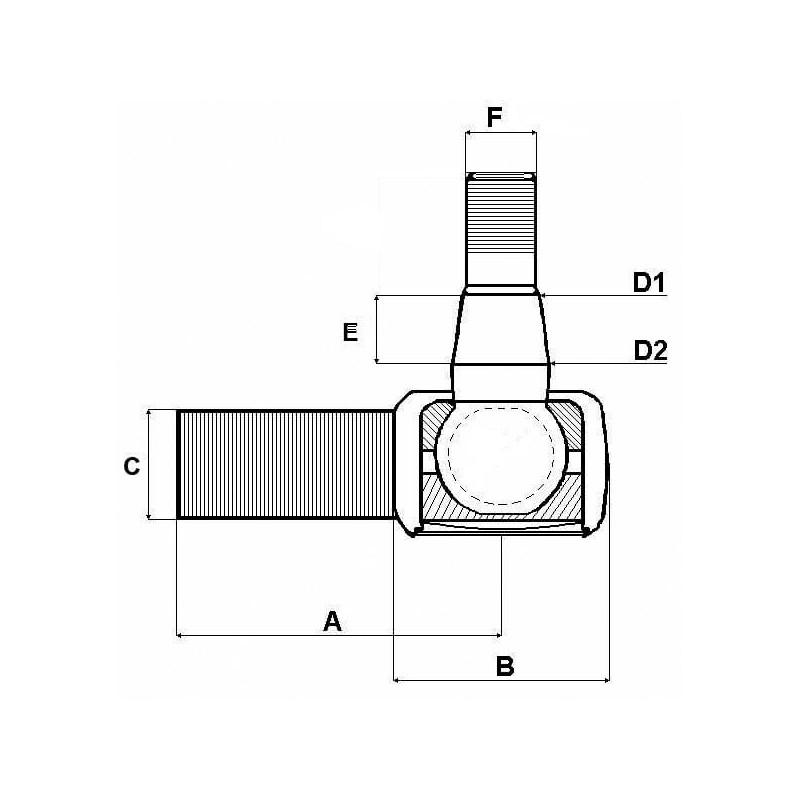

CThread diameter - rod sideM24
Thread pitch - rod side1.50 mm
D1Min. connection diameter18 mm
D2Max. connection diameter20.2 mm
EEnd cone length22 mm
FThread diameter - end side (wheel) (metric)M16
FPitch of thread - end side (wheel) (mm)1.50 mm
AWorking length106 mm
Total length108 mm

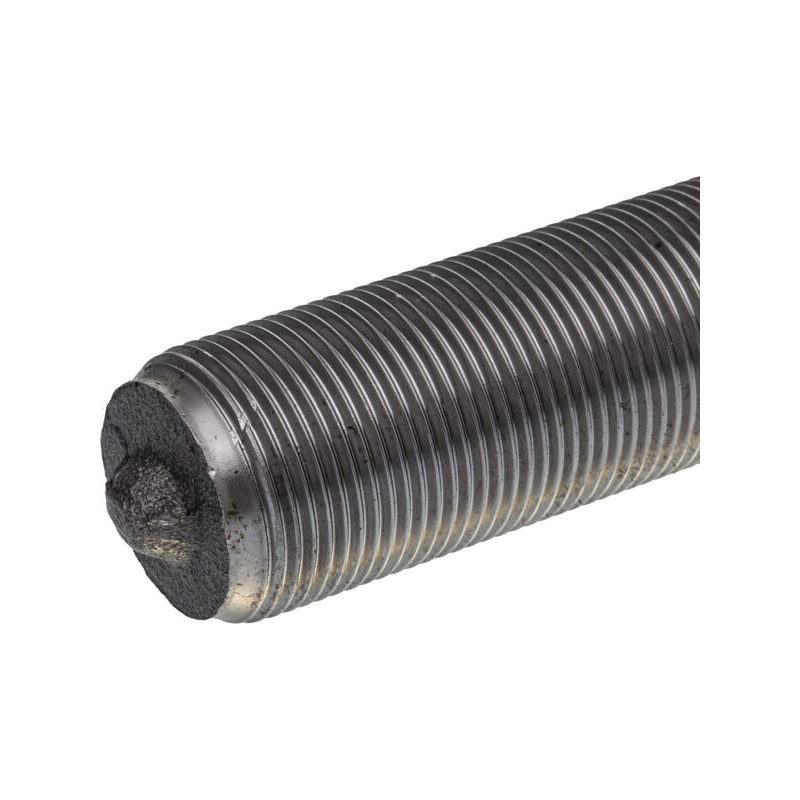

Thread length - rod side76 mm
Thread type - rod sideMetric
Thread direction - rod sideRight
Thread length - end side (wheel) (mm)21 mm
FThread type - end side (wheel)Metric
FThread direction - end side (wheel)Right
BHead width50 mm[
Case - IH (13),
JXU105See model,
JXU115See model,
JXU75See model,
JXU85See model,
JXU95See model,
JX100U MaxximaSee model,
JX1070U MaxximaSee model,
JX1080U MaxximaSee model,
JX1090U MaxximaSee model,
JX1100U MaxximaSee model,
JX70U MaxximaSee model,
JX80U MaxximaSee model,
JX90U MaxximaSee model,
DEUTZ-FAHR (296),
4070E Sn.-> ZKDEE60200RD10001See model,
4080E Sn.-> ZKDEE70200RD10001See model,
4090E Sn.-> ZKDEE80200RD10001See model,
4100E Sn.-> ZKDEE90200RD10001See model,
4050ESee model,
4050E -60001See model,
4055E -70001See model,
4065E -80001See model,
4065E Sn.-> NNZX6502W0BD00001See model,
4075E -90001See model,
4075E Sn.-> NNZX7502W0BD00001See model,
4080.4E Sn.-> NNZX8002W0BD00001See model,
4085E Sn.-> NNZX8502W0BD00001See model,
4090.4E Sn.-> NNZX9002W0BD00001See model,
4100.4E Sn.->NNZX9502W0BD00001See model,
5100 Sn.-> ZKDY6802W0TD10001See model,
5100P Sn.-> ZKDY8002W0TD10001See model,
5110 Sn.-> ZKDY7202W0TD10001See model,
5110P Sn.-> ZKDY8402W0TD10001See model,
5120 Sn.-> ZKDBA202W0TD20001See model,
5120P Sn.-> ZKDBA602W0TD20001See model,
5130 Sn.-> ZKDAH102W0TD10001See model,
5130P Sn.-> ZKDAH402W0TD10001See model,
5105 Sn.-> ZKDDC30200TD10001See model,
5115 Sn.-> ZKDDC40200TD10001See model,
5125 Sn.-> ZKDDC50200TD10001See model,
5090C Sn.-> ZKDY360200TD10001See model,
5100CSee model,
5100C Sn.-> ZKDY480200TD10001See model,
5110CSee model,
5120CSee model,
5070D Sn.-> ZKDCU50200TD10001See model,
5070D Sn.-> ZKDCV70200TD10001See model,
5080D Sn.-> ZKDBC20200TD30001See model,
5080D Sn.-> ZKDBD40200TD30001See model,
5080D Sn.-> ZKDCU90200TD10001See model,
5080D Sn.-> ZKDCW10200TD10001See model,
5080D Sn.-> ZKDFY70200TD50001See model,
5080D Sn.-> ZKDFZ90200TD50001See model,
5085D Sn.-> ZKDCV30200TD10001See model,
5085D Sn.-> ZKDCW50200TD10001See model,
5090.4D Sn.-> ZKDBD00200TD30001See model,
5090.4D Sn.-> ZKDBE20200TD30000See model,
5090.4D Sn.-> ZKDFZ50200TD50001See model,
5090.4D Sn.-> ZKDGA70200TD50001See model,
5090D Sn.-> ZKDBC60200TD30001See model,
5090D Sn.-> ZKDBD80200TD30001See model,
5090D Sn.-> ZKDFZ10200TD50001See model,
5090D Sn.-> ZKDGA30200TD50001See model,
5100.4D Sn.-> ZKDBE60200TD30001See model,
5100.4D Sn.-> ZKDGB10200TD50001See model,
5060D Ecoline Sn.-> ZKDCS90200TD10001See model,
5070D Ecoline Sn.-> ZKDCC00200TD50001See model,
5070D Ecoline Sn.-> ZKDCT30200TD10001See model,
5080D EcolineSee model,
5080D Ecoline Sn.-> ZKDCT70200TD10001See model,
5085D Ecoline Sn.-> ZKDCU10200TD10001See model,
5090.4D EcolineSee model,
5090.4GSee model,
5090D EcolineSee model,
5080DF Sn.-> ZKDBJ60200TD10001See model,
5080DF Sn.-> ZKDBL20200TD10001See model,
5090.4DF Sn.-> ZKDBK00200TD10001See model,
5090.4DF Sn.-> ZKDBL60200TD10001See model,
5090DF Sn.-> ZKDDX70200TD10001See model,
5090DF Sn.-> ZKDDY50200TD10001See model,
5100DF Sn.-> ZKDDY10200TD10001See model,
5100DF Sn.-> ZKDDY90200TD10001See model,
5105DF Sn.-> ZKDBK40200TD10001See model,
5105DF Sn.-> ZKDBM00200TD10001See model,
5115DF Sn.-> ZKDBK80200TD10001See model,
5115DFSn.-> ZKDBM40200TD10001See model,
5080.4DF Ecoline Sn.-> ZKDEB70200TD10001See model,
5080DF Ecoline Compact Sn.-> ZKDEA90200TD10001See model,
5090.4DF Ecoline Sn.-> ZKDEC10200TD10001See model,
5090DF Ecoline Compact Sn.-> ZKDEG10200TD10001See model,
5100DF Ecoline Compact Sn.-> ZKDEB30200TD10001See model,
5105DF Ecoline Sn.-> ZKDEC50200TD10001See model,
5110TTV Sn.-> ZKDY9202W0TD10001See model,
5120TTV Sn.-> ZKDY9602W0TD10001See model,
5130TTV Sn.-> ZKDAH702W0TD10001See model,
TTV5080.4DF Sn.-> ZKDEY40200TD50001See model,
TTV5090.4DF Sn.-> ZKDES00200TD50001See model,
TTV5090DF Sn.-> ZKDER20200TD50001See model,
TTV5100DF Sn.-> ZKDER60200TD50001See model,
TTV5105DF Sn.-> ZKDES40200TD50001See model,
TTV5115DF Sn.-> ZKDES80200TD50001See model,
5080G Sn.-> ZKDDK50200TD10001See model,
5080G Sn.->ZKDBG20200TD10001See model,
5090G Sn.-> ZKDDJ40200TD10001See model,
5090G Sn.-> ZKDDK60200TD10001See model,
5090G Sn.-> ZKDDL90200TD10001See model,
5090G Sn.-> ZKDDN90200TD10001See model,
5100G Sn.-> ZKDDM00200TD10001See model,
5110G Sn.-> ZKDDE60200TD10001See model,
5110G Sn.-> ZKDDF80200TD10001See model,
5110G Sn.-> ZKDDM20200TD10001See model,
5110G Sn.-> ZKDDP20200TD10001See model,
5120G Sn.-> ZKDDE70200TD10001See model,
5120G Sn.-> ZKDDF90200TD10001See model,
5080G Sn.-> ZKDBF00200TD20001See model,
5080G Sn.-> ZKDFB30200TD50001See model,
5080G Sn.-> ZKDFC10200TD50001See model,
5090.4G Sn.-> ZKDAV20200TD10001See model,
5090.4G Sn.-> ZKDAW40200TD10001See model,
5090.4G Sn.-> ZKDCF90200TD20001See model,
5090G Sn.-> ZKDBF40200TD20001See model,
5090G Sn.-> ZKDBG60200TD20001See model,
5090G Sn.-> ZKDCF50200TD10001See model,
5090G Sn.-> ZKDCH50200TD10001See model,
5090G Sn.-> ZKDCW70200TD10001See model,
5090G Sn.-> ZKDCW702W0TD90001See model,
5090G Sn.-> ZKDCX90200TD10001See model,
5090G Sn.-> ZKDDH10200TD50001See model,
5090G Sn.-> ZKDDH20200TD50001See model,
5090G Sn.-> ZKDFB40200TD50001See model,
5090G Sn.-> ZKDFC20200TD50001See model,
5105.4GSee model,
5115.4GSee model,
6120TTV Sn.-> WSXGJ60200TD10001See model,
Agrofarm 100 Ecoline Sn.->D14S934WVT15000See model,
Agrofarm 100 Sn.->D14S934WVT1001See model,
Agrofarm 100 Sn.->D14S934WVT5001See model,
Agrofarm 100G Sn.->D14P954WVT50001See model,
Agrofarm 100G Sn.->D14P954WVT60001See model,
Agrofarm 115G Sn.->D14P154WVT10001See model,
Agrofarm 115G Sn.->D14P154WVT20001See model,
Agrofarm 85 Ecoline Sn.->D14S804WVT15000See model,
Agrofarm 85 Sn.->D14S804WVT1001See model,
Agrofarm 85 Sn.->D14S804WVT5001See model,
Agrofarm 85G Sn.->D14P854WVT50001See model,
Agrofarm 85G Sn.->D14P854WVT60001See model,
410See model,
420See model,
430See model,
430ProflineSee model,
Agrofarm 410 Sn.-> ZKDL2702W0TD20001See model,
Agrofarm 410 Sn.-> ZKDW350200TD25001See model,
Agrofarm 410 Sn.-> ZKDW470200TD30001See model,
Agrofarm 410G Sn.-> ZKDAG202W0TD35001See model,
Agrofarm 410G Sn.-> ZKDAG402W0TD40001See model,
Agrofarm 420 Profiline Sn.-> ZKDS9602W0TD25001See model,
Agrofarm 420 Sn.-> ZKDL2802W0TD20001See model,
Agrofarm 420 Sn.-> ZKDW390200TD25001See model,
Agrofarm 420 Sn.-> ZKDW510200TD30001See model,
Agrofarm 430 Profiline Sn.-> ZKDR8802W0TD15001See model,
Agrofarm 430 Sn.-> ZKDL7502W0TD05001See model,
Agrofarm 430 Sn.-> ZKDW430200TD25001See model,
Agrofarm 430 Sn.-> ZKDW550200TD30001See model,
Agrofarm 430G Sn.-> ZKDAG302W0TD35001See model,
Agrofarm 430G Sn.-> ZKDAG502W0TD40001See model,
Agrofarm TTV420 Sn.-> ZKDT1302W0TD01001See model,
Agrofarm TTV430 Sn.-> ZKDR920200TD01001See model,
75CSee model,
85CSee model,
95CSee model,
Agrofarm 100C Sn.->ZKDT560200TD10001See model,
Agrofarm 80C Sn.->ZKDT500200TD10001See model,
Agrofarm 90C Sn.->ZKDT530200TD10001See model,
Agrofarm 410T Ecoline Sn.-> ZKDAA402W0TD30001See model,
Agrofarm 410T Ecoline Sn.-> ZKDU5201W0TD10001See model,
Agrofarm 410T Sn.-> ZKDP9602W0TD01001See model,
Agrofarm 410T Sn.-> ZKDR0502W0TD05001See model,
Agrofarm 410TB Sn.-> ZKDR1302W0TD01001See model,
Agrofarm 410TB Sn.-> ZKDR2102W0TD05001See model,
Agrofarm 415TB Sn.-> ZKDCR30200TD10001See model,
Agrofarm 415TB Sn.-> ZKDCS10200TD10001See model,
Agrofarm 420T Ecoline Sn.-> ZKDAA602W0TD30001See model,
Agrofarm 420T Ecoline Sn.-> ZKDU5601W0TD10001See model,
Agrofarm 420T Sn.-> ZKDR0102W0TD01001See model,
Agrofarm 420T Sn.-> ZKDR0902W0TD05001See model,
Agrofarm 420TB Sn.-> ZKDR1702W0TD01001See model,
Agrofarm 420TB Sn.-> ZKDR2502W0TD05001See model,
Agrofarm 425TB Sn.-> ZKDCR70200TD10001See model,
Agrofarm 425TB Sn.-> ZKDCS50200TD10001See model,
Agrolux 4.75E Sn.->D10S714WX1E10001See model,
Agrolux 4.80E Sn.->D10S714WT1E40001See model,
Agrolux 50E Sn.->D10S453WX1E1001See model,
Agrolux 57 Sn.->D09P523WVT1001See model,
Agrolux 60 Sn.->D10P603AVT1001/3001See model,
Agrolux 60 Sn.->D10S523WTE1001See model,
Agrolux 60E Sn.->D10S553WX1E1001See model,
Agrolux 67 Sn.->D09P673WVT1001See model,
Agrolux 70 Sn.->D10P704AVT1001/3001See model,
Agrolux 70 Sn.->D10S673WTE1001See model,
Agrolux 70E Sn.->D10S653WT1E1001See model,
Agrolux 77 Sn.->D13P714WVT1001See model,
Agrolux 77LP Sn.->D13P714WVTB1001See model,
Agrolux 80 Sn.-> ZKDS7202W0TD5001See model,
Agrolux 80 Sn.->D13P774AVT1001See model,
Agrolux 87 Sn.->D13P814WVT1001See model,
Agrolux 87LP Sn.->D13P814WVTB1001See model,
Agrolux 90 Sn.-> ZKDS7302W0TD5001See model,
Agrolux 90 Sn.->D13P874AVT1001See model,
Agrolux 95 Sn.-> AG95E1WVT10001See model,
Agrolux 97 Sn.->D13P914WVT1001See model,
Agrolux 97LP Sn.->D13P914WVTB1001See model,
Agrolux 4.75 Sn.->D10S704WXE15001See model,
Agrolux 4.80 Sn.->D10S704WTE45001See model,
Agrolux 60 Sn.-> 30053See model,
Agrolux 60 Sn.->D10S523WXE1001See model,
Agrolux 70 Sn.-> 40059See model,
Agrolux 70 Sn.->D10S673WXE1001See model,
Agrolux 310 Sn.-> ZKDS4302W0RD05001See model,
Agrolux 310 Sn.-> ZKDY3002W0RD60001See model,
Agrolux 320 Sn.-> ZKDY3202W0RD65001See model,
Agrolux 320P Sn.-> ZKDL7802W0RD5001See model,
Agrolux 410 Sn.-> ZKDW690200RD95001See model,
Agrolux 50 Sn.-> ZKDY2401W0RD80001See model,
Agrolux 65 Sn.-> ZKDR9602W0RD01001See model,
Agrolux 65 Sn.-> ZKDY2602W0RD50001See model,
Agrolux 75 Sn.-> ZKDS0102V0RD01001See model,
Agrolux 75 Sn.-> ZKDY2802W0RD55001See model,
Agrolux F50 Sn.->D11F513AVT1001See model,
Agrolux F57 Sn.->D11P523WVT1001See model,
Agrolux F60 Sn.->D10F603AVT1001See model,
Agrolux F60 Sn.->D11F553AVT6001See model,
Agrolux F67 Sn.->D11P673WVT1001See model,
Agrolux F70 Sn.->D10F704AVT1001See model,
Agrolux F70 Sn.->D11F694AVT6001See model,
Agrolux F80 Sn.->D10F804AVT1001See model,
Agrolux F80 Sn.->D11F764AVT6001See model,
Agromaxx 55 Sn.-> 10026See model,
Agromaxx 55HD Sn.-> 10304See model,
Agromaxx 55LD Sn.-> 10858See model,
Agromaxx 60HD E1 Sn.-> 11401See model,
Agromaxx 60HD Sn.-> 10112See model,
Agromaxx 60LD Sn.-> 10855See model,
Agroplus 100 Sn.->D11S016WVT1001See model,
Agroplus 60 Sn.->D10S553AVT2001See model,
Agroplus 60 Sn.->D10S603AVT0001See model,
Agroplus 67 Sn.->D10S673WVT1001See model,
Agroplus 67 Sn.->D10S673WVT5001See model,
Agroplus 70 Sn.->D10S704AVT0001See model,
Agroplus 70 Sn.->D10S714AVT5001See model,
Agroplus 75 Sn.->D11S764WVT1001See model,
Agroplus 77 Sn.->D10S704WVT1001See model,
Agroplus 77 Sn.->D10S704WVT5001See model,
Agroplus 80 Sn.->D10S774AVT2001See model,
Agroplus 80 Sn.->D10S804AVT1001See model,
Agroplus 85 Sn.->D11S864WVT1001See model,
Agroplus 87 Sn.->D10S904WVT1001See model,
Agroplus 87 Sn.->D10S904WVT5001See model,
Agroplus 95 New Sn.->D12S914WVT5001See model,
Agroplus 95 Sn.->D11S934WVT1001See model,
310See model,
315See model,
320See model,
410See model,
Agroplus 310 Ecoline Sn.-> ZKDT0102W0TD10001 / 25001See model,
Agroplus 310 Sn.-> ZKDR2902W0TD05001See model,
Agroplus 315 Ecoline Sn.-> ZKDU0402W0TD10001 / 25001See model,
Agroplus 315 Sn.-> ZKDV1802W0TD20001See model,
Agroplus 320 Ecoline Sn.-> ZKDT0502W0TD10001See model,
Agroplus 320 Sn.-> ZKDR3302W0TD05001 / 20001See model,
Agroplus 410 Ecoline Sn.-> ZKDT0902W0TS10001See model,
Agroplus 410 Sn.-> ZKDR370XW0TD05001 / 20001See model,
Agroplus 420 Profiline Sn.-> ZKDS7702W0TD01001/15001See model,
Agroplus F100 Sn.->D10F904WVT2E3001See model,
Agroplus F100 Sn.->D10F904WVT2E6001See model,
Agroplus F70 Sn.->D10F673WVT2E3001See model,
Agroplus F70 Sn.->D10F673WVT2E6001See model,
Agroplus F75 Sn.->D10F704WVT2E3001See model,
Agroplus F75 Sn.->D10F704WVT2E6001See model,
Agroplus F90 Sn.->D10F834WVT2E3001See model,
Agroplus F90 Sn.->D10F834WVT2E6001See model,
Agroplus 320F Sn.-> ZKDP3602W0TD01001 / 10001See model,
Agroplus 410F Sn.-> ZKDP2802W0TD05001 / 15001See model,
Agroplus 410F Sn.-> ZKDP4002W0TD01001 / 10001See model,
Agroplus 420F Sn.-> ZKDP3202W0TD05001 / 15001See model,
Agroplus 420F Sn.-> ZKDP4402W0TD01001 / 10001See model,
Agroplus 430F Sn.-> ZKDU7702W0TD10001See model,
Agroplus 430F Sn.-> ZKDU8102W0TD15001See model,
Agroplus 310F Ecoline Compact Sn.-> ZKDP1002W0TD01001 / 5001See model,
Agroplus 315F Ecoline Compact Sn.-> ZKDU6502W0TD01001See model,
Agroplus 320F Ecoline Sn.-> ZKDP1402W0TD01001 / 5001See model,
Agroplus 405F Ecoline Sn.-> ZKDU6902W0TD01001See model,
Agroplus 410F Ecoline Sn.-> ZKDP1802W0TD01001See model,
Agroplus 420F Ecoline Sn.-> ZKDU7302W0TD01001See model,
Agroplus 405F Keyline Sn.-> ZKDAB902W0TD30001See model,
Agroplus 55F Keyline Sn.-> ZKDCK602W0RD10001See model,
Agroplus 65F Keyline Sn.-> ZKDCK902W0RD10001See model,
Agroplus 75FKeyline Sn.-> ZKDCL20200RD10001See model,
Agroplus 80.4F Keyline Sn.-> ZKDCL50200RD10001See model,
Agroplus F50 KeylineSee model,
Agroplus F55 Keyline Sn.-> 50001See model,
Agroplus F55 Keyline Sn.-> 8001See model,
Agroplus F65 Keyline Sn.-> 6001See model,
Agroplus F65 Keyline Sn.-> 80001See model,
Agroplus F75 Keyline Sn.-> 60001See model,
Agroplus F75 Keyline Sn.-> 7001See model,
Agroplus 70F Keyline Sn.-> ZKDEZ20200RD50001See model,
Agroplus 80.4F Keyline Sn.-> ZKDFA00200RD50001See model,
Agroplus 80F Keyline Sn.-> ZKDEZ60200RD50001See model,
Agroplus 410 Keyline Sn.-> ZKDAF902W0TD30001See model,
Agrotrac 115.6 Turbo Sn.->D33S166WVT10001See model,
Fiat (7),
1180See model,
1280See model,
1380See model,
1580See model,
1880See model,
880/5See model,
980See model,
Hürlimann (85),
H345See model,
H351See model,
H355See model,
H356See model,
H358See model,
H360See model,
H361See model,
H362See model,
H372See model,
H466See model,
H468See model,
H470See model,
H476See model,
H478See model,
H478.4See model,
H480See model,
H486 TurboSee model,
H488 TurboSee model,
H490 TurboSee model,
H496 TurboSee model,
H5110 TurboSee model,
H5116 TurboSee model,
H358.4 ClubSee model,
H468.4 ClubSee model,
H4105 EliteSee model,
H6115 EliteSee model,
H358 PrestigeSee model,
H468 PrestigeSee model,
H478 PrestigeSee model,
H488 Prestige TurboSee model,
Prestige 75 TraditionSee model,
Prestige 95 TraditionSee model,
H-305-XESee model,
H-306-XESee model,
H-307-XESee model,
H-355F-XESee model,
H-365F-XESee model,
H-375F-XESee model,
H100XFSee model,
H361XFSee model,
H476XFSee model,
H481XFSee model,
H491XFSee model,
H55XFSee model,
H70XFSee model,
H75XFSee model,
H90XFSee model,
XA56See model,
XA606See model,
XA607See model,
XA655See model,
XA656See model,
XA657See model,
XA658See model,
XA66See model,
XA76See model,
XA86See model,
XA56 TraditionSee model,
XA66 TraditionSee model,
XA76 TraditionSee model,
XA86 TraditionSee model,
XB85See model,
XB95See model,
XB Max 100See model,
XB Max 100 TraditionSee model,
XB Max 110See model,
XB Max 85See model,
XB Max 85 TraditionSee model,
XE55 TraditionSee model,
XE55F TraditionSee model,
XE70 TraditionSee model,
XE70F TraditionSee model,
XF100See model,
XF55See model,
XF70See model,
XF75See model,
XF90See model,
XT105See model,
XT110See model,
XT85See model,
XT908See model,
XT909See model,
XT910.4See model,
XT910.6See model,
XT95See model,
Lamborghini (88),
573-60NSee model,
574-60NSee model,
674-70See model,
774-80See model,
874-90 TurboSee model,
1106See model,
956 - 100See model,
Crono 55 TargetSee model,
Crono 554-50See model,
Crono 554-55FSee model,
Crono 55F TargetSee model,
Crono 564-60See model,
Crono 564-65FSee model,
Crono 574-70See model,
Crono 574-75FSee model,
Crono 70 TargetSee model,
Crono 70F TargetSee model,
Cross 574-60See model,
Cross 674-70See model,
Formula 105See model,
Formula 115See model,
Grand Prix 674-70See model,
Grand Prix 75 TargetSee model,
Grand Prix 774-80See model,
Grand Prix 874-90 TurboSee model,
Grand Prix 95 TargetSee model,
Plus 100FSee model,
Plus 55FSee model,
Plus 660FSee model,
Plus 70FSee model,
Plus 75FSee model,
Plus 775FSee model,
Plus 880FSee model,
Plus 90FSee model,
Plus 990FSee model,
Premium 1050See model,
Premium 1060See model,
Premium 850See model,
Premium 950See model,
R1056See model,
R1156See model,
R1256See model,
R1556See model,
R2.56See model,
R2.56 TargetSee model,
R2.66See model,
R2.66 TargetSee model,
R2.76See model,
R2.76 TargetSee model,
R2.86See model,
R2.86 TargetSee model,
R613VSee model,
R 3.75See model,
R 3.85See model,
R 3.95See model,
R3 Evo 100See model,
R3 Evo 100 TargetSee model,
R3 Evo 110See model,
R3 Evo 85See model,
R3 Evo 85 TargetSee model,
R4.105See model,
R4.110See model,
R4.85See model,
R4.95See model,
R483See model,
R583See model,
R653See model,
R683See model,
R684See model,
R550See model,
R660See model,
R600See model,
R700See model,
R654See model,
R784See model,
R854See model,
R955See model,
RF.100See model,
RF.55See model,
RF.70See model,
RF.75See model,
RF.90See model,
Sprint 654-55See model,
Sprint 664-60See model,
Sprint 664-65See model,
Sprint 674-70See model,
Sprint 674-75See model,
Sprint 684-85See model,
Landini (13),
9550See model,
16000See model,
16500See model,
9500See model,
10000See model,
12500See model,
13000See model,
14500See model,
16550See model,
Legend I 105See model,
Legend I 115See model,
Legend I 130See model,
Legend I 145See model,
Massey Ferguson (14),
390See model,
399See model,
3125See model,
3610See model,
3615See model,
3630See model,
3635See model,
3645See model,
3650See model,
3655See model,
3670See model,
3680See model,
3690See model,
699See model,
New Holland (23),
4635See model,
4835See model,
5635See model,
6635See model,
7635See model,
L60See model,
L65See model,
L75See model,
L85See model,
L95See model,
T5030See model,
T5040See model,
T5050See model,
T5060See model,
T5070See model,
TL100See model,
TL70See model,
TL80See model,
TL90See model,
TL100ASee model,
TL70ASee model,
TL80ASee model,
TL90ASee model,
Same (277),
Antares 100See model,
Antares 110See model,
Argon 50See model,
Argon 55 ClassicSee model,
Argon 55FSee model,
Argon 55F ClassicSee model,
Argon 60See model,
Argon 65FSee model,
Argon 70See model,
Argon 70 ClassicSee model,
Argon 70F ClassicSee model,
Argon 75FSee model,
Argon 100 Sn.>ZKDEE50200RS10001See model,
Argon 70 Sn.>ZKDEE20200RS10001See model,
Argon 80 Sn.>ZKDEE30200RS10001See model,
Argon 90 Sn.>ZKDEE40200RS10001See model,
Argon³ 65 Sn.>ZKDS400X00RS05001See model,
Argon³ 65 Sn.>ZKDY290200RS40001See model,
Argon³ 75 P Sn.>ZKDL760200RS05001See model,
Argon³ 75 Sn.>ZKDY310200RS45001See model,
Argon³ 80 Sn.>ZKDV950X00RS05001See model,
Argon³ 80 Sn.>ZKDW680200RS90001See model,
Aster 60See model,
Aster 70 TurboSee model,
Audax 200See model,
Buffalo 120See model,
Buffalo 130See model,
Centauro 70 ExportSee model,
Centauro 70 SpecialSee model,
Centurion 75 ExportSee model,
Centurion 75 SpecialSee model,
Condor 55 SynchroSee model,
Corsaro 70 SynchroSee model,
Dorado 55See model,
Dorado 56See model,
Dorado 56 ClassicSee model,
Dorado 60See model,
Dorado 65See model,
Dorado 66See model,
Dorado 66 ClassicSee model,
Dorado 70See model,
Dorado 75See model,
Dorado 76See model,
Dorado 76 ClassicSee model,
Dorado 85See model,
Dorado 86See model,
Dorado 86 ClassicSee model,
Dorado 60 Classic Sn.>ZKDCS60200TS10001See model,
Dorado 70 Classic Sn.>ZKDCB40200TS50001See model,
Dorado 70 Classic Sn.>ZKDCT00200TS10001See model,
Dorado 70 Classic Sn.>ZKDFX00200TS50001See model,
Dorado 80 Classic Sn.>ZKDBA70200TS30001See model,
Dorado 80 Classic Sn.>ZKDCT40200TS10001See model,
Dorado 80 Classic Sn.>ZKDFX40200TS50001See model,
Dorado 90 Classic Sn.>ZKDFX80200TS50001See model,
Dorado 90.4 Classic Sn.>ZKDBB50200TS30001See model,
Dorado F100See model,
Dorado F55See model,
Dorado F70See model,
Dorado F75See model,
Dorado F90See model,
Dorado 100.4 Sn.>ZKDBE30200TS30001See model,
Dorado 100.4 Sn.>ZKDGB00200TS50001See model,
Dorado 80 Sn.>ZKDBB90200TS30001See model,
Dorado 80 Sn.>ZKDBD10200TS30001See model,
Dorado 80 Sn.>ZKDFY60200TS50001See model,
Dorado 80 Sn.>ZKDFZ80200TS50001See model,
Dorado 90 Sn.>ZKDBC30200TS30001See model,
Dorado 90 Sn.>ZKDBD50200TS30001See model,
Dorado 90 Sn.>ZKDFZ00200TS50001See model,
Dorado 90 Sn.>ZKDGA20200TS50001See model,
Dorado 90.4 Sn.>ZKDBC70200TS30001See model,
Dorado 90.4 Sn.>ZKDBD90200TS30001See model,
Dorado 90.4 Sn.>ZKDFZ40200TS50001See model,
Dorado 90.4 Sn.>ZKDGA60200TS50001See model,
Dorado 100 Natural Sn.>ZKDDB40200BS50001See model,
Dorado 70 Natural Sn.>ZKDDB10200BS50001See model,
Dorado 80 Natural Sn.>ZKDDB20200BS50001See model,
Dorado 90 Natural Sn.>ZKDDB30200BS50001See model,
Dorado 70 Sn.>ZKDCU20200TS10001See model,
Dorado 70 Sn.>ZKDCV40200TS10001See model,
Dorado 80 Sn.>ZKDCU60200TS10001See model,
Dorado 80 Sn.>ZKDCV80200TS10001See model,
Dorado 80.4 Sn.>NNZX8002W0BS00001See model,
Dorado 85 Sn.>ZKDCV00200TS10001See model,
Dorado 85 Sn.>ZKDCW20200TS10001See model,
Dorado 100 Sn.>NNZD9502W0BS00001See model,
Dorado 100.4 Sn.>NNZX9502W0BS50001See model,
Dorado 50 Sn.>NNZD500200BS00001See model,
Dorado 55 Sn.>NNZD550200BS00001See model,
Dorado 65 Sn.>NNZD650200BS00001See model,
Dorado 75 Sn.>NNZD750200BS00001See model,
Dorado 80 Sn.>NNZD800200BS00001See model,
Dorado 90 Sn.>NNZD9002W0BS00001See model,
Dorado³ 100 Hi-Line Sn.>ZKDS7402W0TS01001/15001See model,
Dorado³ 60 Sn.>ZKDR2602W0TS05001See model,
Dorado³ 60 Sn.>ZKDR3802W0TS01001See model,
Dorado³ 70 Sn.>ZKDV1502W0TS20001See model,
Dorado³ 70 Sn.>ZKDV1902W0TS15001See model,
Dorado³ 80 Sn.>ZKDR3002W0TS05001/20001See model,
Dorado³ 80 Sn.>ZKDR4202W0TS01001/15001See model,
Dorado³ 90 Sn.>ZKDR340XW0TS05001/20001See model,
Dorado³ 90 Sn.>ZKDR460XW0TS01001/15001See model,
Dorado³ 60 Classic Sn.>ZKDS9702W0TS10001See model,
Dorado³ 70 Classic Sn.>ZKDU0102W0TS10001See model,
Dorado³ 80 Classic Sn.>ZKDT0202W0TS10001See model,
Dorado³ 90 Classic Sn.>ZKDT0602W0TS10001See model,
Dorado³ 90 Natural Sn.>ZKDAC002W0TS30001See model,
Drago 100See model,
Drago 120See model,
Explorer 100 Sn.>ZKDCX00200TS10001See model,
Explorer 100 Sn.>ZKDCY20200TS10001See model,
Explorer 100 Sn.>ZKDR7202W0TS40001See model,
Explorer 75See model,
Explorer 75 ClassicSee model,
Explorer 80 Sn.>ZKDS6802W0TS30001See model,
Explorer 85See model,
Explorer 85 Sn.>EX85E1WVT35001See model,
Explorer 90 Sn.>ZKDCW60200TS10001See model,
Explorer 90 Sn.>ZKDCX80200TS10001See model,
Explorer 90 Sn.>ZKDS6902W0TS30001See model,
Explorer 95See model,
Explorer 95 ClassicSee model,
Explorer 95 Sn.>EX95E1WVT35001See model,
Explorer 95 Sn.>S12S914WVT1001See model,
Explorer 120 Sn.>ZKDDF60200TS10001See model,
Explorer 80 Sn.>ZKDDJ00200TS10001See model,
Explorer 100 Sn.>ZKDBF50200TS20001See model,
Explorer 100 Sn.>ZKDBG70200TS20001See model,
Explorer 100 Sn.>ZKDCG20200TS10001See model,
Explorer 100 Sn.>ZKDCJ20200TS10001See model,
Explorer 100 Sn.>ZKDFD30200TS50001See model,
Explorer 100 Sn.>ZKDFE50200TS50001See model,
Explorer 105.4 Sn.>ZKDAV50200TS10001See model,
Explorer 105.4 Sn.>ZKDAW70200TS10001See model,
Explorer 105.4 Sn.>ZKDCG60200TS20001See model,
Explorer 105.4 Sn.>ZKDCJ60200TS20001See model,
Explorer 110 Sn.>ZKDFD40200TS50001See model,
Explorer 110 Sn.>ZKDFE60200TS50001See model,
Explorer 115.4 Sn.>ZKDAV90200TS10001See model,
Explorer 115.4 Sn.>ZKDAX10200TS10001See model,
Explorer 115.4 Sn.>ZKDCH00200TS20001See model,
Explorer 115.4 Sn.>ZKDCK00200TS20001See model,
Explorer 80 Sn.>ZKDBE70200TS20001See model,
Explorer 80 Sn.>ZKDBF90200TS20001See model,
Explorer 80 Sn.>ZKDFB50200TS50001See model,
Explorer 80 Sn.>ZKDFC30200TS50001See model,
Explorer 90 Sn.>ZKDBF10200TS20001See model,
Explorer 90 Sn.>ZKDBG30200TS20001See model,
Explorer 90 Sn.>ZKDCF40200TS10001See model,
Explorer 90 Sn.>ZKDCH40200TS10001See model,
Explorer 90 Sn.>ZKDDH30200TS50001See model,
Explorer 90 Sn.>ZKDDH40200TS50001See model,
Explorer 90 Sn.>ZKDFB60200TS50001See model,
Explorer 90 Sn.>ZKDFC40200TS50001See model,
Explorer 90.4 Sn.>ZKDAV10200TS10001See model,
Explorer 90.4 Sn.>ZKDAW30200TS10001See model,
Explorer 90.4 Sn.>ZKDCF80200TS20001See model,
Explorer 90.4 Sn.>ZKDCH80200TS20001See model,
Explorer 90.4 Sn.>ZKDFD20200TS50001See model,
Explorer 90.4 Sn.>ZKDFE40200TS50001See model,
Explorer I 55See model,
Explorer I 60See model,
Explorer I 65See model,
Explorer I 70See model,
Explorer I 75See model,
Explorer I 80See model,
Explorer I 90 TurboSee model,
Explorer II 60See model,
Explorer II 70See model,
Explorer II 80See model,
Explorer II 90 TurboSee model,
Explorer 100 Special Sn.>ZKDT540200TS10001See model,
Explorer 80 Special Sn.>ZKDT480200TS10001See model,
Explorer 85 Special Sn.>70001See model,
Explorer 90 Special Sn.>ZKDT510200TS10001See model,
Explorer 95 Special Sn.>70001See model,
Explorer 105TB Sn.>ZKDDR90200TS50001See model,
Explorer 105TB Sn.>ZKDDS70200TS50001See model,
Explorer 115TB Sn.>ZKDDS00200TS50001See model,
Explorer 115TB Sn.>ZKDDS80200TS50001See model,
Explorer³ 100See model,
Explorer³ 100 ClassicSee model,
Explorer³ 100ESee model,
Explorer³ 100E Sn.>S14P954WVT50001See model,
Explorer³ 100E Sn.>S14P954WVT60001See model,
Explorer³ 110See model,
Explorer³ 115 ESee model,
Explorer³ 115 E Sn.>S14P154WVT10001See model,
Explorer³ 115 E Sn.>S14P154WVT20001See model,
Explorer³ 85See model,
Explorer³ 85 ClassicSee model,
Explorer³ 85 E Sn.>S14P854WVT50001See model,
Explorer³ 85 E Sn.>S14P854WVT60001See model,
Explorer³ 100T Sn.>ZKDR0602W0TS05001See model,
Explorer³ 85T Sn.>ZKDP9302W0TS01001See model,
Explorer³ 100 Sn.>20001See model,
Explorer³ 105 Sn.>ZKDW7302W0TS15001See model,
Explorer³ 105 Sn.>ZKDW7902W0TS20001See model,
Explorer³ 85 Sn.>16001See model,
Explorer³ 90 Sn.>ZKDW7602W0TS20001See model,
Falcon 50See model,
Fortis 120.4 Infinity Sn.>WSXV440200LS50001See model,
Fortis 120.4 Sn.>WSXV240200LD50001See model,
Frutteto Classic 100 Classic COMPACT Sn.>ZKDEB00200TS10001See model,
Frutteto Classic 105 Classic Sn.>ZKDEC20200TS10001See model,
Frutteto Classic 80 Classic COMPACT Sn.>ZKDEA60200TS10001See model,
Frutteto Classic 80.4 Classic Sn.>ZKDEB40200TS10001See model,
Frutteto Classic 90 Classic COMPACT Sn.>ZKDEF80200TS10001See model,
Frutteto Classic 90.4 Classic Sn.>ZKDEB80200TS10001See model,
Frutteto I 60See model,
Frutteto I 75See model,
Frutteto II 100See model,
Frutteto II 55See model,
Frutteto II 60See model,
Frutteto II 70See model,
Frutteto II 75See model,
Frutteto II 85See model,
Frutteto II 90See model,
Frutteto³ 100 Classic Sn.>ZKDU7002W0TS01001See model,
Frutteto³ 100 Classic Sn.>ZKDU7002W0TS90001See model,
Frutteto³ 60 Classic COMPACT Sn.>ZKDP0702W0TS01001See model,
Frutteto³ 60 Classic Sn.>ZKDP0702W0TS90001See model,
Frutteto³ 70 Classic COMPACT Sn.>ZKDU6202W0TS01001See model,
Frutteto³ 80 Classic COMPACT Sn.>ZKDP1102W0TS01001See model,
Frutteto³ 80 Classic Sn.>ZKDP1102W0TS90001See model,
Frutteto³ 80.4 Classic Sn.>ZKDU6602W0TS01001See model,
Frutteto³ 90 Classic Sn.>ZKDP1502W0TS01001See model,
Frutteto³ 50 NaturalSee model,
Frutteto³ 55 Natural Sn.>NNZ55F02V0BS40001See model,
Frutteto³ 55 Natural Sn.>NNZDR402W0BS10001See model,
Frutteto³ 55 Natural Sn.>ZKDCK40200RS10001See model,
Frutteto³ 65 Natural Sn.>NNZDR602W0BS40001See model,
Frutteto³ 80.4 Natural Sn.>ZKDCL30200RS10001See model,
Frutteto³ S100 ACTIVEDRIVESn.>ZKDP5302W0TS01001See model,
Hercules 160 ExportSee model,
Jaguar 100 ExportSee model,
Jaguar 95 ExportSee model,
Laser 100See model,
Laser 110See model,
Laser 85See model,
Laser 90See model,
Leopard 85See model,
Leopard 90 TurboSee model,
Mercury 85See model,
Minitaurus 60See model,
Panther 90See model,
Panther 95See model,
Roller 55 WSee model,
Roller 70 WSee model,
Saturno 80 SynchroSee model,
Silver 100.4See model,
Silver 100.6See model,
Silver 105See model,
Silver 110See model,
Silver 80See model,
Silver 85See model,
Silver 90See model,
Silver 95See model,
Solar 50See model,
Solar 60See model,
Taurus 60 ExportSee model,
Tiger 100See model,
Tiger Six 105 ExportSee model,
Tiger 60 Sn.>S10S523WTE1001See model,
Tiger 70 Sn.>S10S673WTE1001See model,
Tiger 75.4 Sn.>S10S704WTE15001See model,
Tiger 80.4 Sn.>S10S704WTE45001See model,
Tiger 50 Sn.>70001See model,
Tiger 55 Sn.>NNZY2302W0BS01001See model,
Tiger 65 Sn.>1001See model,
Tiger 65 Sn.>30001See model,
Tiger 75 Sn.>1001See model,
Tiger 75 Sn.>35001See model,
Trident 130 ExportSee model,
Vigneron 60See model,
Vigneron 70See model,
Steyr (3),
8140See model,
8160See model,
8170See model,
Zetor (10),
8111See model,
10111See model,
10211See model,
11211See model,
12111See model,
12211See model,
8111See model,
8211See model,
9111See model,
9211See model
